Outdoor Unit SiBE12-728
308 Removal Procedure

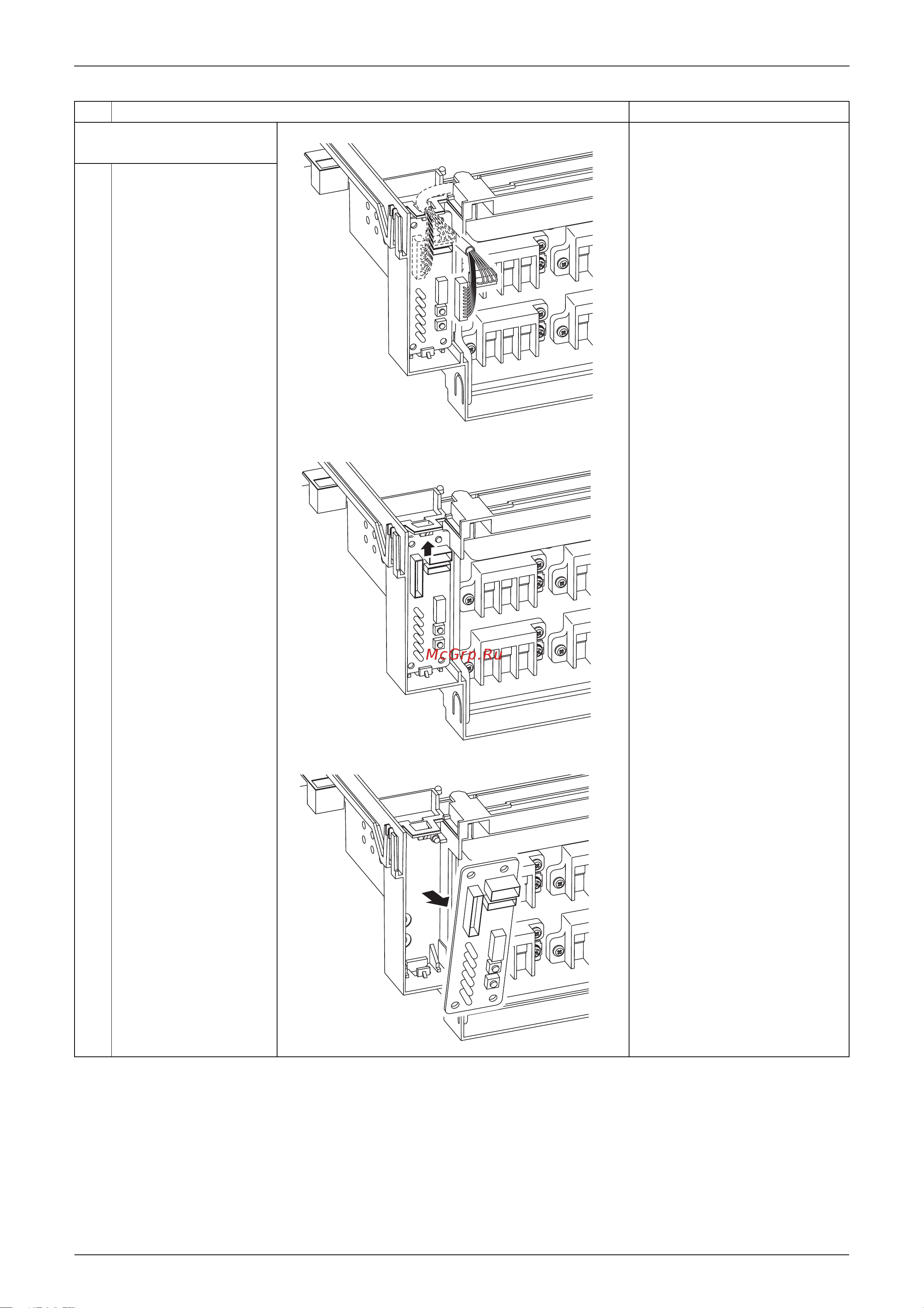

3. Removing the display
PCB.
1 Disconnect the control
PCB connectors S52,
S102
2 Slightly lift the top
hooks to detach.
3 Undo the bottom hook
to remove the display
PCB.
Step Procedure Points
(R6435)
(R6436)
(R6437)
