Indoor Unit Si04-306
148 Removal Procedure

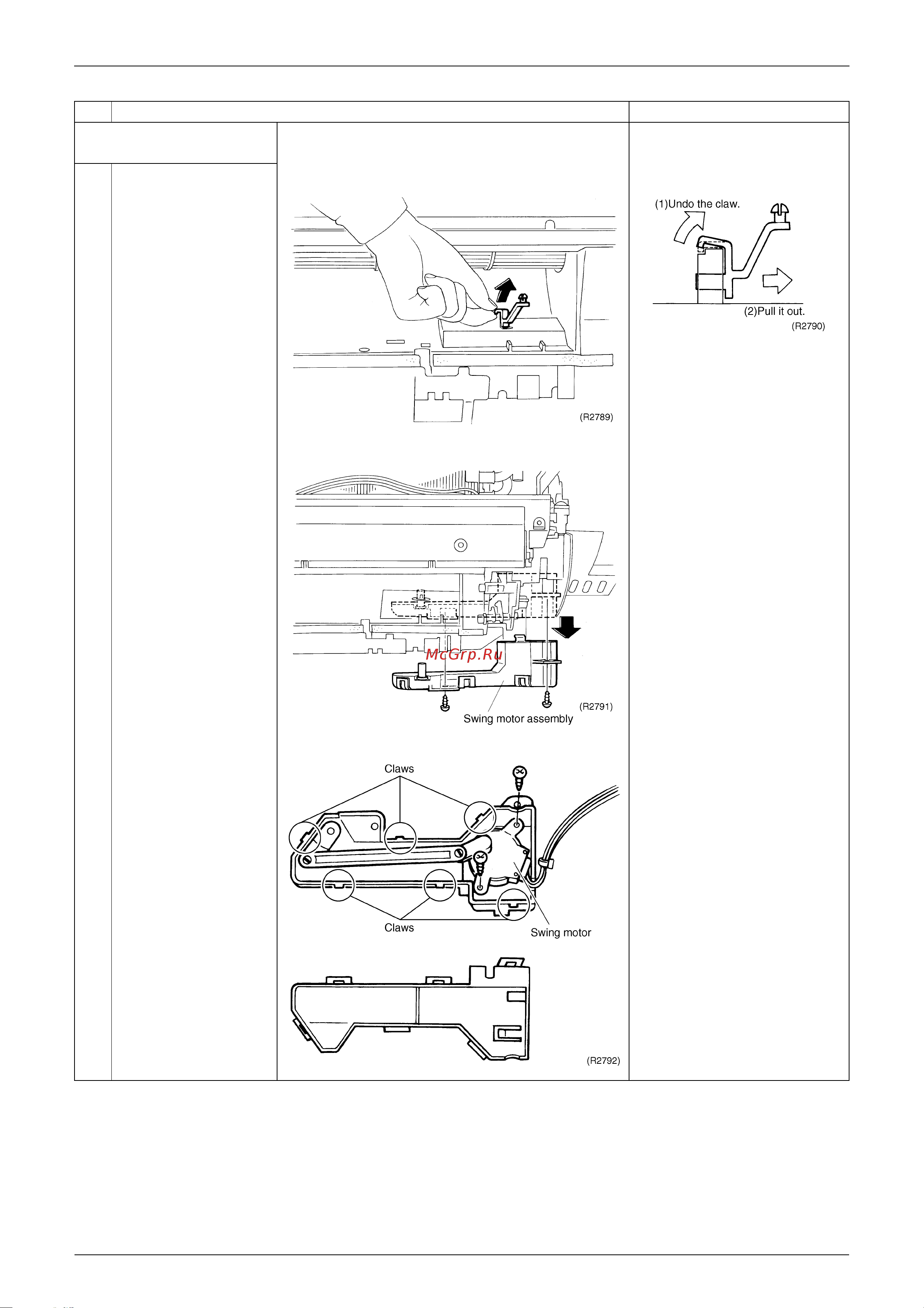

7. Remove the swing motor
for vertical blades.
1
Release the swing axis
on the right side.
Releasing the swing axis
2
Loosen the two screws
and detach the swing
motor assembly.
3
Loosen the two screws
and remove the swing
motor.
Six claws hold the assembly.
Step
Procedure Points
