INSTALLATION  ELECTRICAL CONNECTION

CONNECTING TO THE TERMINALS:

When connecting you must comply with the instruction given below.

. The installation must be protected by an appropriate fuse, see table page 51, and have

wires with sufficient cross-section to supply the appliance normally.

. The power supply cable must be selected according to the information of table page 51.

When connecting you should:

. Turn over the hob, glass side against the work top, taking care to protect the glass!

. Open the cover in the following sequence:

. find the two tabs located on the sides,

. put the blade of a flat screwdriver in front of

each tab, push in and press,

. remove the cover.

. Connect the power supply cable:

. comply with the information of the table page 51 and the markings on the terminal

board and install the shunts (the shunts, inserted in the terminal board, make a bridge

between two terminals),

. strip the end of each conductor and attach them to the terminals, complying with the

information given in the table page 51,

. unscrew the cable clamp,

. pass the lead through the cable clamp.

When you have finished the connection operation to the appliance terminals, tighten

the cable clamp and close the cover.

Note: make sure the terminal board screws are tight.

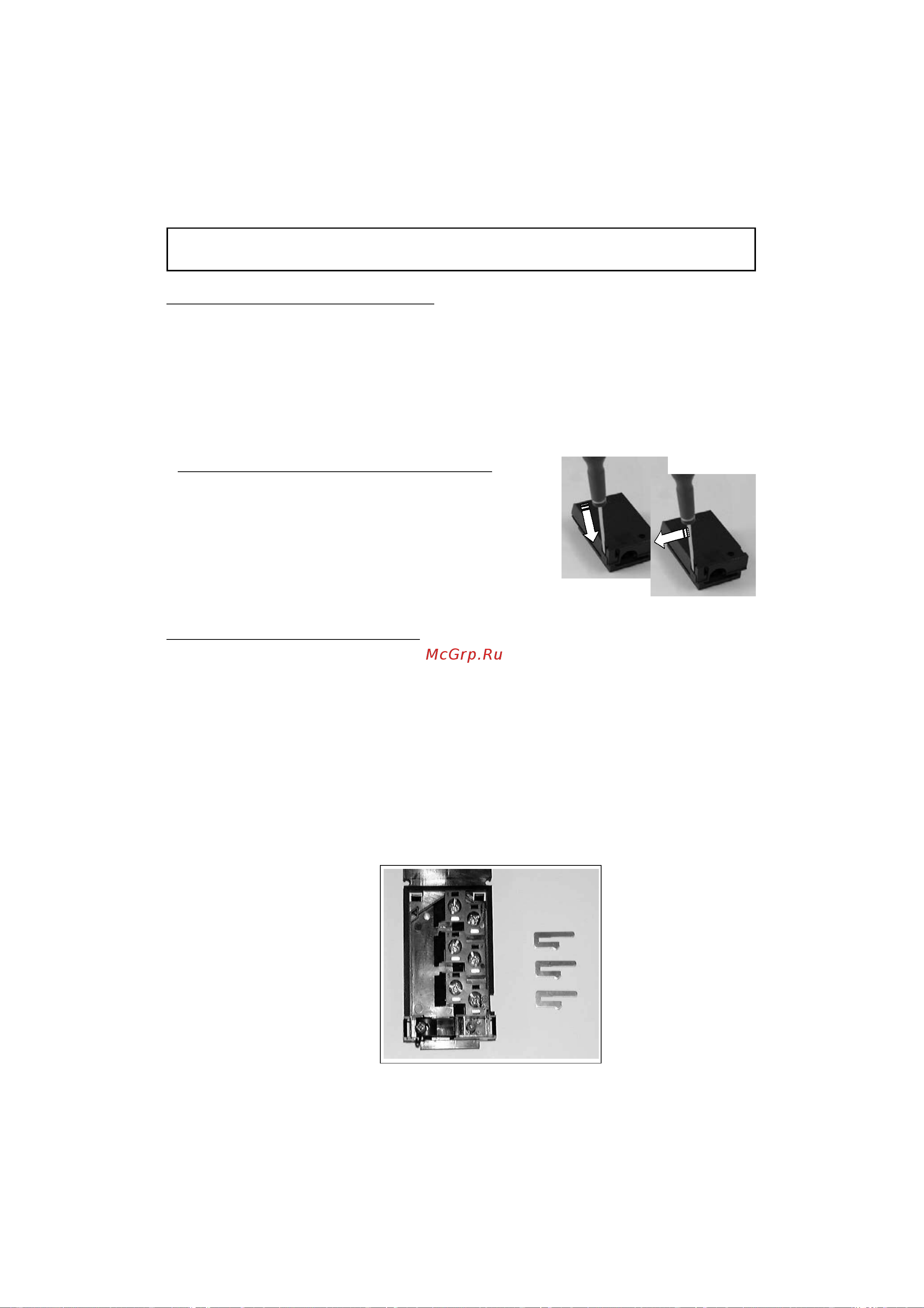

TERMINAL BOARD

)

) Shunts

) x 3

)




