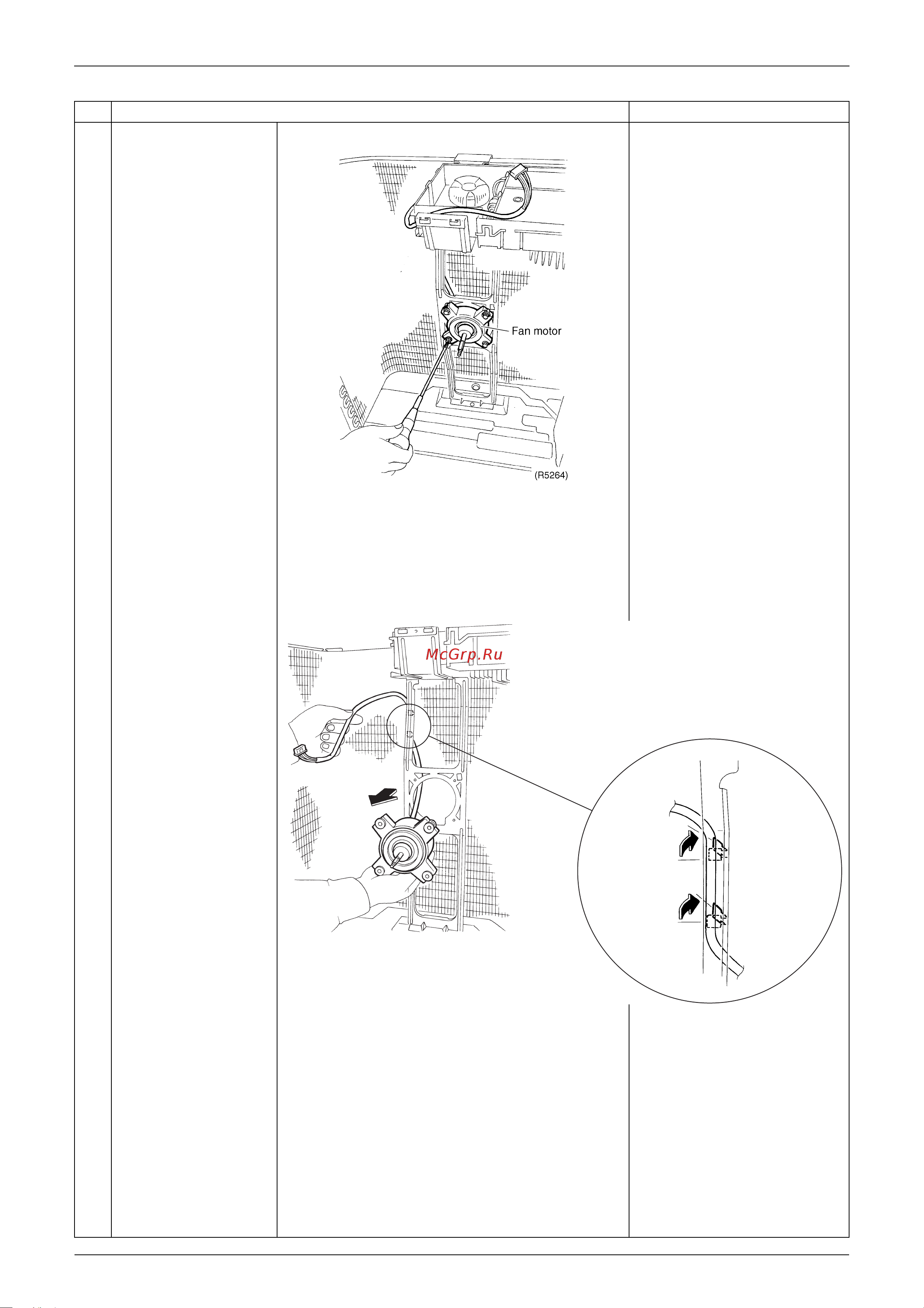

Outdoor Unit SiBE04-609
212 Removal Procedure
4
Remove the 4 screws
from the fan motor.
5
Pull the fan motor out.
Put the lead wire through the
back of the motor when
reassembling (so as not to
be entangled with the
propeller fan).
Step
Procedure Points
(R5265)
