10

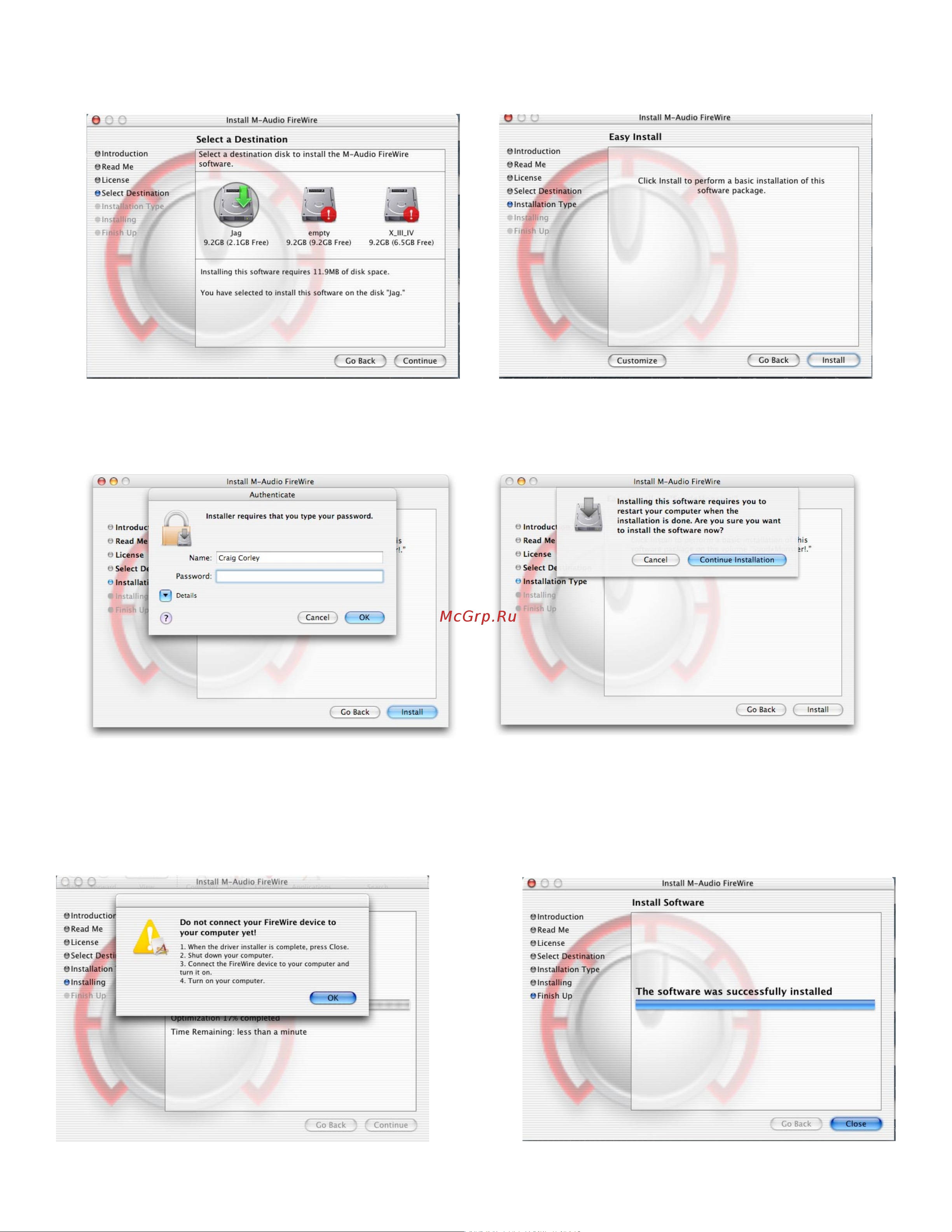

Select a destination disk for the installation, then click “Continue.”
In the Easy Install box, click “Install.”
You will need your Administrator Password for the next step. Once it has been entered, click “OK” and then click “Install”.
On the following box, click “Continue Installation.”
You will then see the Connect Device Warning box, instructing you to NOT connect your FireWire Solo until the driver installation has been
completed and your computer has been shut down. Click “Okay.”
Your M-Audio drivers will install. You will then see the Installation Completed box, and be prompted to shut down your computer.
Содержание
- About the firewire solo 2
- Introduction 2
- What s in the box 2
- Features 3
- Mac os 3
- Minimum system requirements 3
- Mounting the device to a rack drawer 3
- Windows 3
- Front panel controls and connectors 4
- Driver installation 5
- Hardware installation 5
- Rear panel connectors 5
- Windows xp 5
- Mac osx version 10 jaguar 8
- Mac os x version 10 x panther 10
- Hardware connections 12
- Mixer page 12
- Software control panel 12
- Channel control features 13
- Hardware page 13
- Routing the input signal 14
- Setting up your record levels 14
- Using the firewire solo 14
- Using the line inputs 14
- Using the mic and guitar inputs 14
- Using the s pdif input 14
- Asio direct monitoring 15
- Asio tape type monitoring 15
- Monitoring your inputs for recording 15
- Other direct monitoring 15
- Wdm input monitoring 15
- General recording instructions 16
- If you are experiencing clicks and pops in your recordings 16
- If you are trying to record a digital input to the firewire solo and have no sound 16
- If you have no sound 16
- Setting the sample rate 16
- Troubleshooting 16
- Alternatively you can email us at support m audio com or contact us by phone at 626 633 9055 technical support is available by telephone from 7am 7pm ps 17
- Contact us 17
- For additional help technical support is available on our website at www m audio com where you can fill out our technical support form 17
- M audio canada 17
- M audio deutschland germany 17
- M audio france unit 5 saracen industrial estate mark road hemel hempstead herts hp2 7bj england 17
- M audio japan 17
- M audio u k unit 5 saracen industrial estate mark road hemel hempstead herts hp2 7bj england 17
- M audio u s 5795 martin road irwindale ca 91706 6211 u s a 17
- Headphone outputs 18
- Instrument input 18
- Line inputs 18
- Line outputs 18
- Microphone input 18
- Specifications 18
- Specifications 18
- Warranty 19
- Warranty registration 19
- Warranty terms 19
