Soundmax SM-CDM1032 — установка заднего крепления для автомобильного устройства [5/56]

Превью страниц Страница 5 / 56

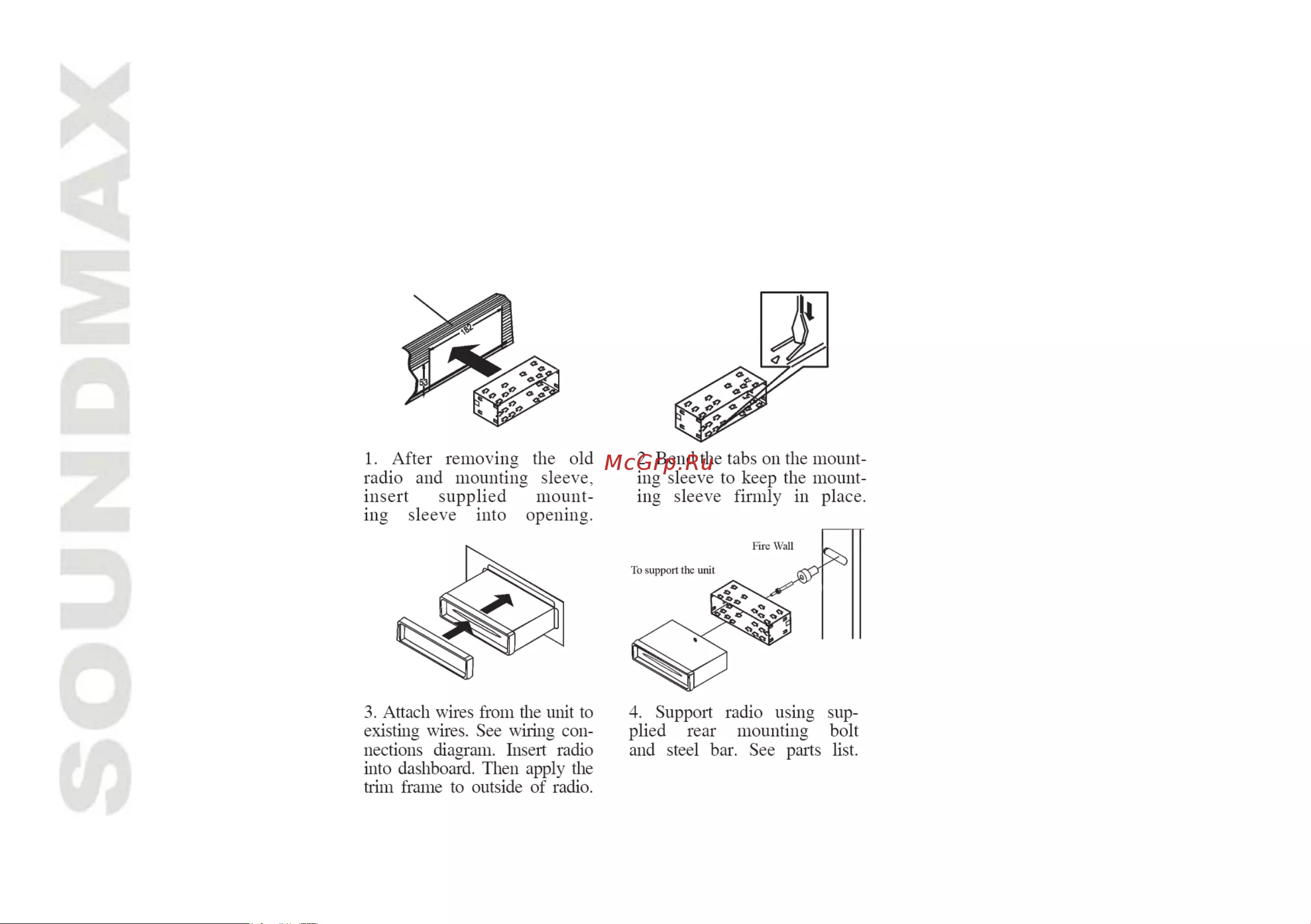

Pic. 1

Din rear-mount (method 2)

Installation using the screw holes at both sides of the unit.

1. Select a position where the screw holes of the main unit are fitted for aligned, and

tighten the screws at 2 positions at each side.

Use either truss screws (5 x 8mm) or flush surface screws (4 x 8mm), depending on the

shape of the screw holes in the bracket.

2. Screw

3. Factory radio mounting bracket.

4. Dashboard or Console

5. Hook (Remove this parts)

Note: The mounting box, outer trim ring, and the Half-sleeve are not used for

this method of installation.

Detachable control panel

Detaching the control panel

1. Press the OPEN button on the front panel. The

panel will go down (pic. 1).

Pic. 2
