Caution: For some car models you may need to modify wiring of the supplied power cord. Contact your authorized car

dealer before installing this unit.

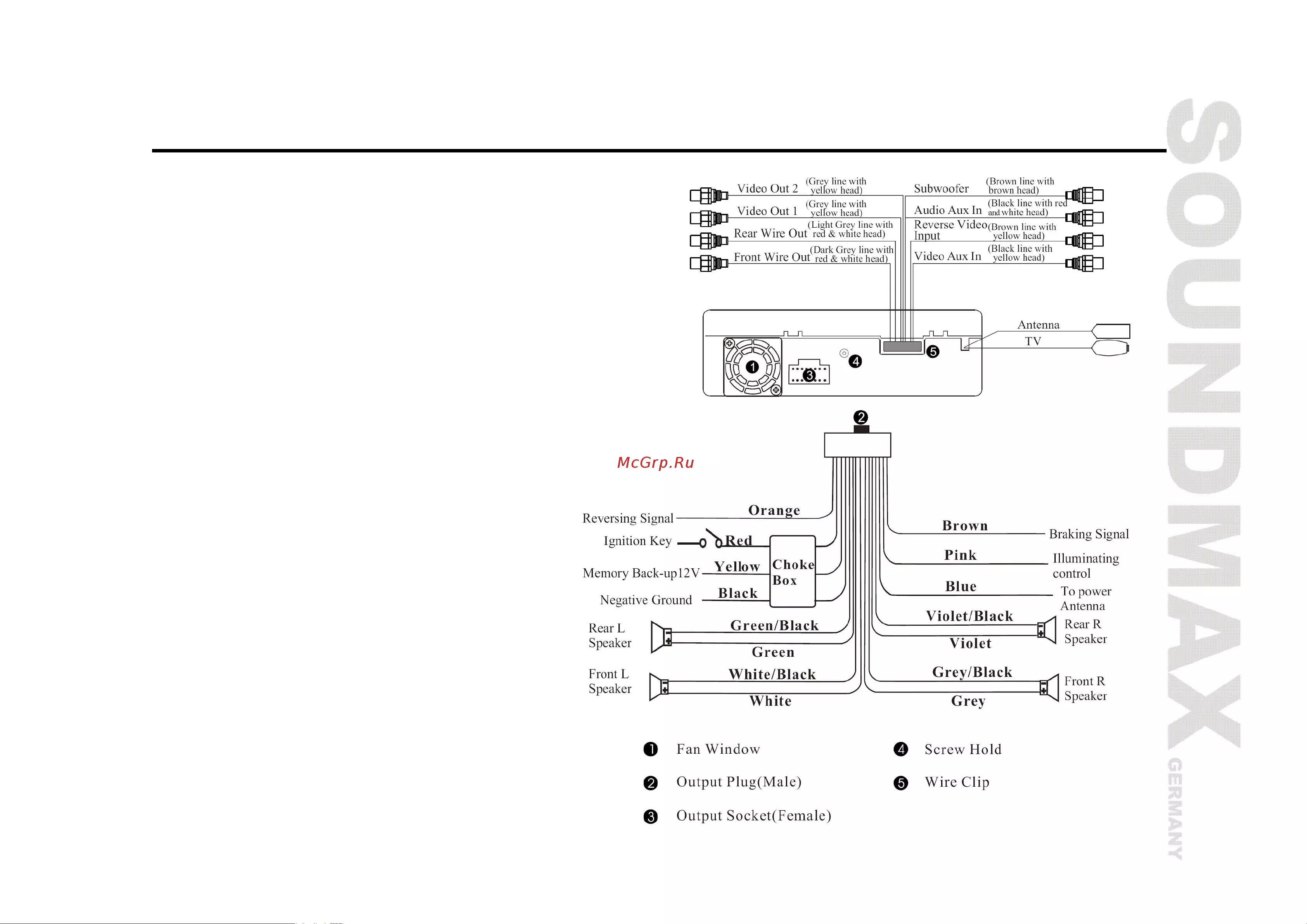

Using the ISO Connector

1. If your car is equipped with the ISO connector, then connect the ISO connectors as illustrated.

2. For connections without the ISO connectors, check the wiring in the vehicle carefully before

connecting, incorrect connection may cause serious damage to this unit.

3. Cut the connector, connect the colored leads of the power cord to the car battery as shown in

the color code table below for speaker and power cable connections.

Location

Connector A Location Connector B

1 Illuminating/Pink 9 Reversing Signal/Orange

2 Power/Blue 10 Braking Signal/Brown

3 Ignition Key/Red 11

4 Rear R Speaker/Violet 12 Rear R Speaker/Violet/Black

5 Front R Speaker/Grey 13 Front R Speaker/Grey/Black

6 Front L Speaker/White 14 Front L Speaker/White/Black

7 Rear L Speaker/Green 15 Rear L Speaker/Green/Black

8 12V(+)/Yellow 16 Negative Ground/Black
