2. DIN REAR-MOUNT (Method B)

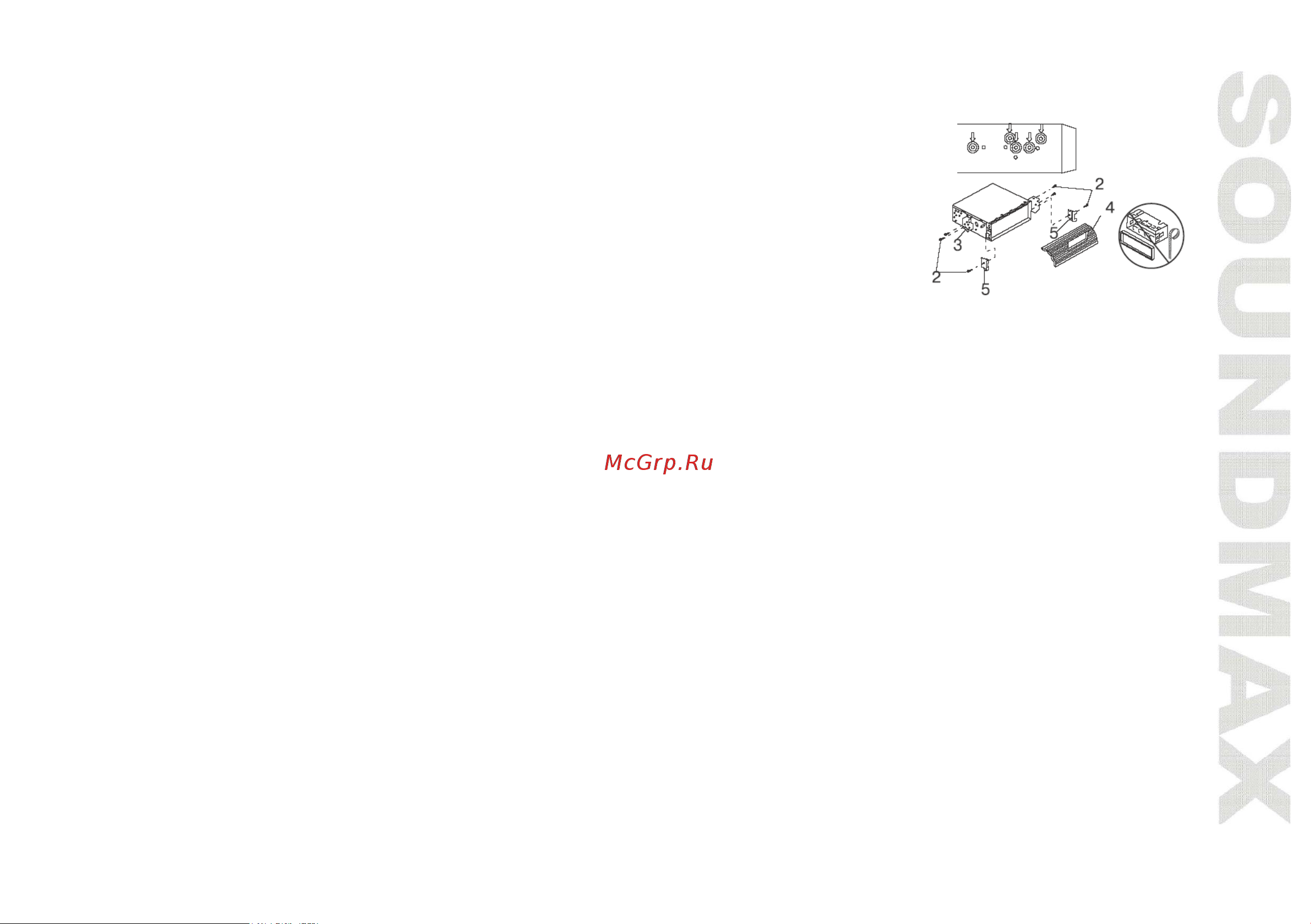

For this method, use the screw holes in the lateral sides of the unit. Fix the unit with the help of the factory

radio mounting brackets.

1. Select a position in which the screw holes of the brackets (3) are aligned

with the screw holes in the unit body, and screw in two screws (2) in each side.

2. Screw.

3. Factory radio mounting brackets.

4. Vehicle dashboard.

5. Lock (remove this part).

Note: The outer trim frame and mounting sleeve are not used for method of installation.

Installing the front panel

Insert the left locker on the receiver into the left groove of the panel, and then insert the right locker into

the right groove. Lift the panel and press on the upper part of the panel until a click. Ensure the panel is

fixed properly, otherwise error symbols may be displayed or some buttons will not function.

To detach the front panel, press OPEN button. When the panel is in horizontal position, detach the left part

of the panel from the locker, and then detach the right part.

Anti-theft system

The front panel of this unit can be stored in the included protective case when not in used and carried away

when you leave the vehicle to deter theft.

Switch off the power of the unit. Detach the front panel, then put it to the protective case and take it with

you.

Cautions: The control panel can easily be damaged by shocks. After removing it, place it in a protective

case and be careful not to drop it or subject it to strong shocks.

The rear connector that connects the main unit and the control panel is an extremely important part. Be

careful not to damage it by pressing on it with fingernails, pens, screwdrivers, etc.

Note: If the control panel is dirty, wipe off the dirt with soft, dry cloth only. And use a cotton swab soaked

in isopropyl alcohol to clean the socket on the back of the control panel.
