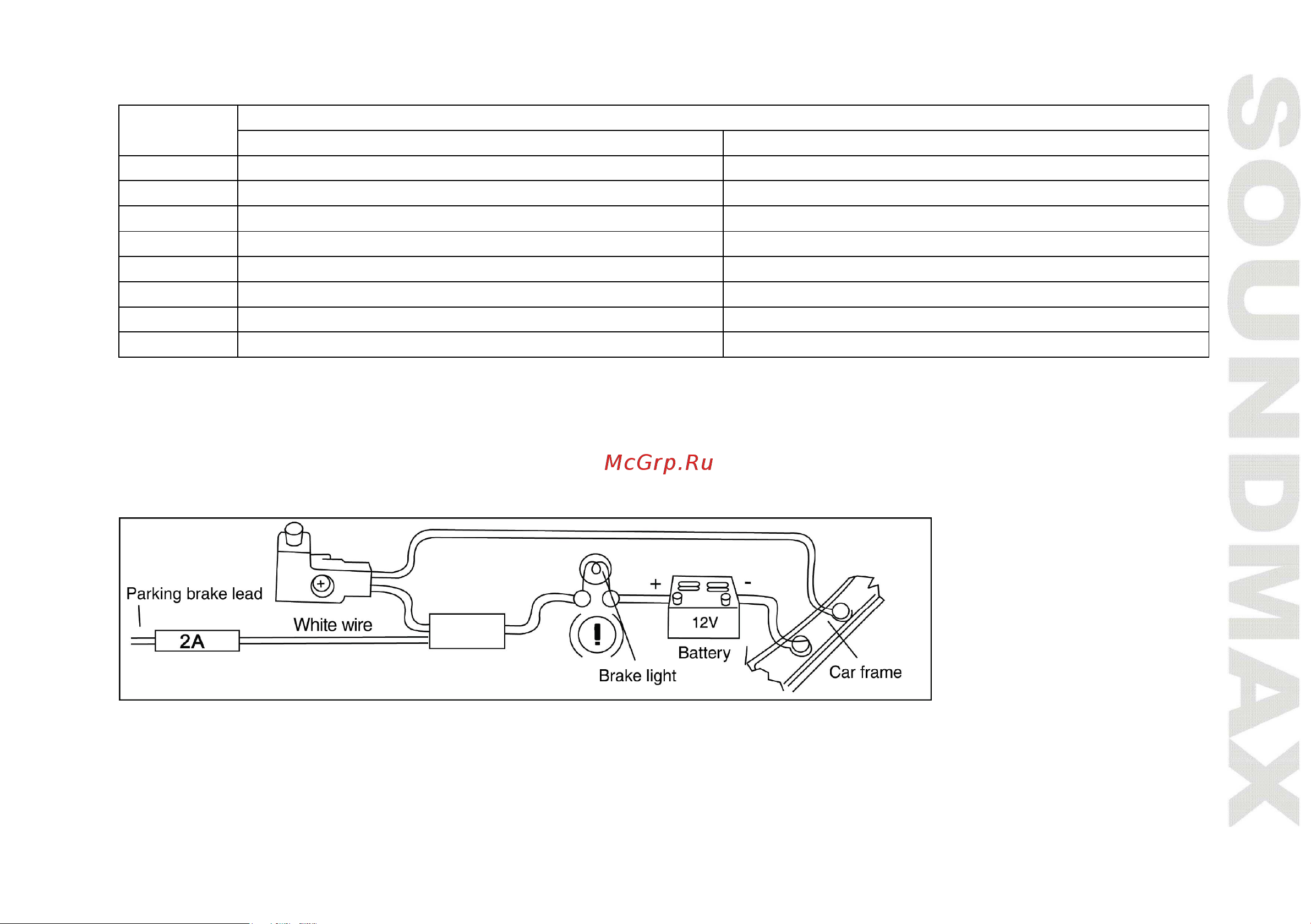

ISO Connection table

FunctionLocation

Connector A Connector B

1 - Rear right (+) - Purple

2 - Rear right (-) - Purple/Black

3 - Front right (+) - Grey

4 Battery +12V/Yellow Front right (-) - Grey/Black

5 Auto Antenna - Blue Front left (+) - White

6 - Front left (-) - White/Black

7 Ignition/Red Rear left (+) - Green

8 Ground/Black Rear left (-) - Green/Black

Note: Power antenna wire is intended for power supply of the antenna and for remote control of an

additional amplifier.

Parking wire connection

If Parking cable is connected to hand brake switch, the video display of the TFT monitor will be controlled by

driving status, system setup and input video sources. When the car is moving ahead, if the video disc is

played, the screen shows “Attention! You cannot use this function while driving”, and blank screen. The

above warning screen will prevent the driver from watching images.
