Commercial Air Conditioner Model: AD09/12/14/182XLERA
-6-

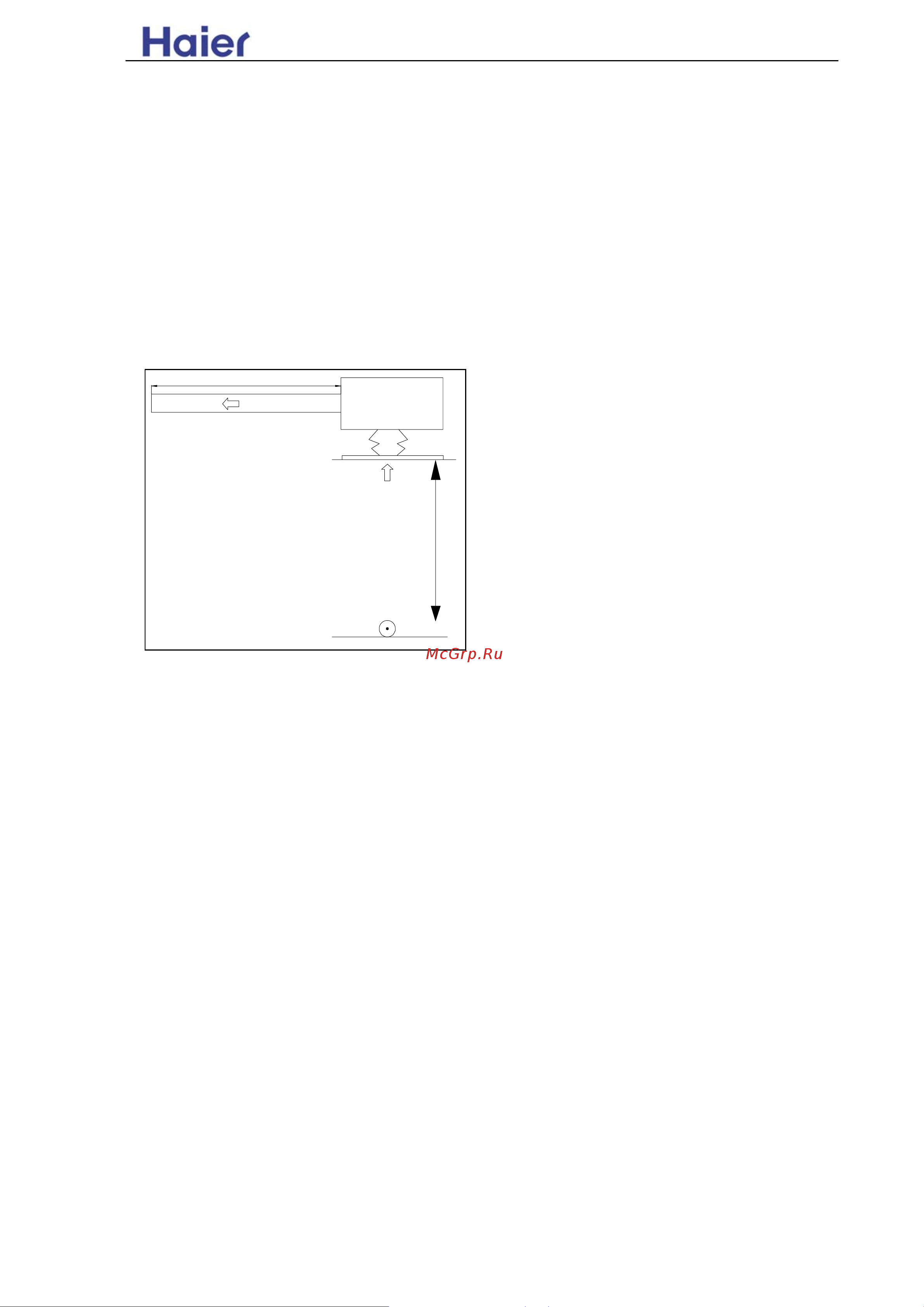

duct unit without auxiliary duct:
Note: ⊙ is the real time
analyser position
Norminal condition: indoor temperature (cooling): 27℃DB/19℃WB, indoor temperature
(heating): 20℃DB
Outdoor temperature(cooling): 35℃DB/24℃WB, outdoor temperature(heating): 7℃DB/6℃
WB
The noise level will be measured in the third octave band limited values in the semi-anechoic
chamber, using a Real Time Analyser calibrated sound intensity meter. It is a sound pressure
noise level. The detailed method please refer to the following information:
Installation state: the unit should be placed on the flat floor or be mounted in horizontal
direction.
Testing method:
1.4m
2m
duct
