Содержание
- Ap88nacbea au88natbea 1
- Cabinet unit 1
- Operation manual 1
- Anti cold air blowing out 2
- Change of fan speed in cooling mode the air sending is set at auto when the indoor temperature is near the set temperature the fan speed will lower automatically in heating mode when room temperature reaches the set temperature the compressor will stop running and the fan will change to low fan or stop 2
- Defrosting function 2
- During heating operation after starting the unit the indoor fan motor will not rotate immediately to prevent cold air from blowing out 2
- Minute protection function 2
- Operation of air conditioner 2
- Operation points 2
- Setting metho 2
- Air outlet 3
- Indoor unit 3
- Inlet grill 3
- Name of parts 3
- Note open the power switch 12 hours before the unit running do not cut off the power when short time stop the unit like one day and one night this is to protect the compressor do not block the air inlet and air outlet otherwise the performance of the air conditioner may be lowered and it will make the protection device act 3
- Operation panel 3
- Outdoor unit 3
- Outlet grill 3
- The interface of the refrigerant pipe 3
- Name of parts 4
- Wire controller 4
- After carefully reading this manual please keep in hand for reference if the air conditioner is given to a new user this manual should be attached with unit to the new user 5
- Before starting the unit please read the following ì safety precautionsî carefully to guarantee the normal operation of the system the following lists two kinds of safety precautions ì warningî and ì noticeî for the items that the improper use may cause death or serious injury are listed in ì warningî volume however sometimes the items listed in ì noticeî volume may also cause serious accidents 5
- Do not do like this do follow the instruction do equip with grounding wire 5
- Do not handle switches with a wet hand 5
- Do not use water to clean the air conditioner it may cause electric shock 5
- Installation safety precautions 5
- It may cause electric shock 5
- Must be observed 5
- Safety precautions 5
- Safety precautions 6
- Fan operation 7
- Fan operation refers the air conditioner does not perform cooling and heating operation but fan operation in this mode the air conditioner cannot perform auot fan operation and does show the temperature value on the wire controller 7
- Operation instruction 7
- Press mode button each press the working mode will change as the following sequence 7
- Press the on off button to turn off the unit 7
- Press the on off button to turn on the uni 7
- Operation instruction 8
- Operation instruction 9
- Sleep operation 9
- Operation instruction 10
- Timer on off function 10
- Cancel timer 11
- Confirm the time 11
- Confirm the time of timer off 11
- Operation instruction 11
- Set of timer mode 11
- Set the timer off time 11
- Set time 11
- Timer on off function 11
- Turn on the unit 11
- Usersí attention 12
- Air filter cleaning 13
- First cut off the power supply then turn 13
- Indoor and outdoor cleaning 13
- Maintenance 13
- Remove air inlet grille 13
- Screwdriver to screw off the screw 13
- The embedded part of air inlet grille 13
- Upwards finally use cross shaped 13
- After season maintenance 14
- Before season maintenance 14
- Check if there are obstacles at inlet and outlet of indoor and outdoor unit whick will reduce unit efficiency 14
- Clean air filter and indoor unit cover outdoor unit after cleaning 14
- Don t fail to attach air filter after making sure it is cleaned dust will enter into unit causing damages or faults if it is running without air filter 14
- Let the unit run in fan mode for half a day in a fine weather to dry completely the unit inside 14
- Maintenance 14
- There might be certain power consumption even if unit is stopped 14
- To protect compressor at start please connect external power supply to the unit 12 hrs prior to starting also please keep the power supply switch on during the whole season 14
- Turn off the unit and pull out power plug 14
- Followings are not problems 15
- Trouble shooting 15
- Air conditioner won t start 16
- Before ask for services please first check your unit against following 16
- Poor cooling 16
- Poor cooling or heating 16
- When problems occur 16
- Find the following troubles occur please stop the unit and cut off power then contact the after sales service worker 17
- In cooling or dehumidifying operation there is water leakage 17
- Symptom 17
- The fuse and creepage breaker are often blown out 17
- Warning 17
- When troubles occur 17
- Installation instruction 18
- Warning 18
- Before installing the unit please read this manual carefully improper installation may cause accidents and make unit damage or death 19
- Installation instruction 19
- Notice 19
- Standard accessories 19
- This manual can not include all kinds of conditions if you have new requirements and questions please contact with local haier sales center 19
- Warning 19
- Avoid the following installation places 20
- Before installation 20
- Installation procedure 20
- Installation space 20
- Selection of installation place 20
- Indoor unit 21
- Installation of indoor unit 21
- Installation procedure 21
- Indoor unit 22
- Installation of fall prevention fitting metal 22
- Installation of l shaped metal 22
- Installation procedure 22
- Piping connection 22
- Installation procedure 23
- Outdoor unit 23
- Installation procedure 24
- Main points of installation refrigerant pipe 24
- Outdoor unit 24
- Setting of wire controller dial switch 24
- Installation procedure 25
- Installtion space 25
- Outdoor unit 25
- Selection of installation site 25
- Warning 25
- Installation procedure 26
- Outdoor unit 26
- Installation procedure 27
- Outdoor unit 27
- Detailed diagram of the three way valve 28
- Installation procedure 28
- Outdoor unit 28
- Installation procedure 29
- Outdoor unit 29
- Installation procedure 30
- Outdoor unit 30
- All the wires should be copper core wires the power cable of indoor unit should be equipped according to the operation manual of indoor unit before finishing vacuumizing the refrigerant pipe system do not supply power to indoor unit when connecting the indoor outdoor wire check the number of the indoor outdoor terminals the terminals with the same number connected together with one wire incorrect wiring will damage the controller of the air conditioner or make the unit work abnormally the air conditioner must use special power circuit and special air switch 50 60a groundign wire the wiring work should be done by a qualified electrician according to the national wiring rule the creepage breaker must be installed the grounding line and the neutral line of the receptacle must be strictly separated it is incorrect to connect the neutral line with the grounding line 31
- Connect wire between indoor outdoor unit 31
- Electric wiring 31
- Installation procedure 31
- Pressing method of connection wire 31
- The wiring method of straight terminal for those connection wires whose end are not orbicular terminals their wiring method is 31
- Wiring method 1 the wiring method of orbicular terminal 31

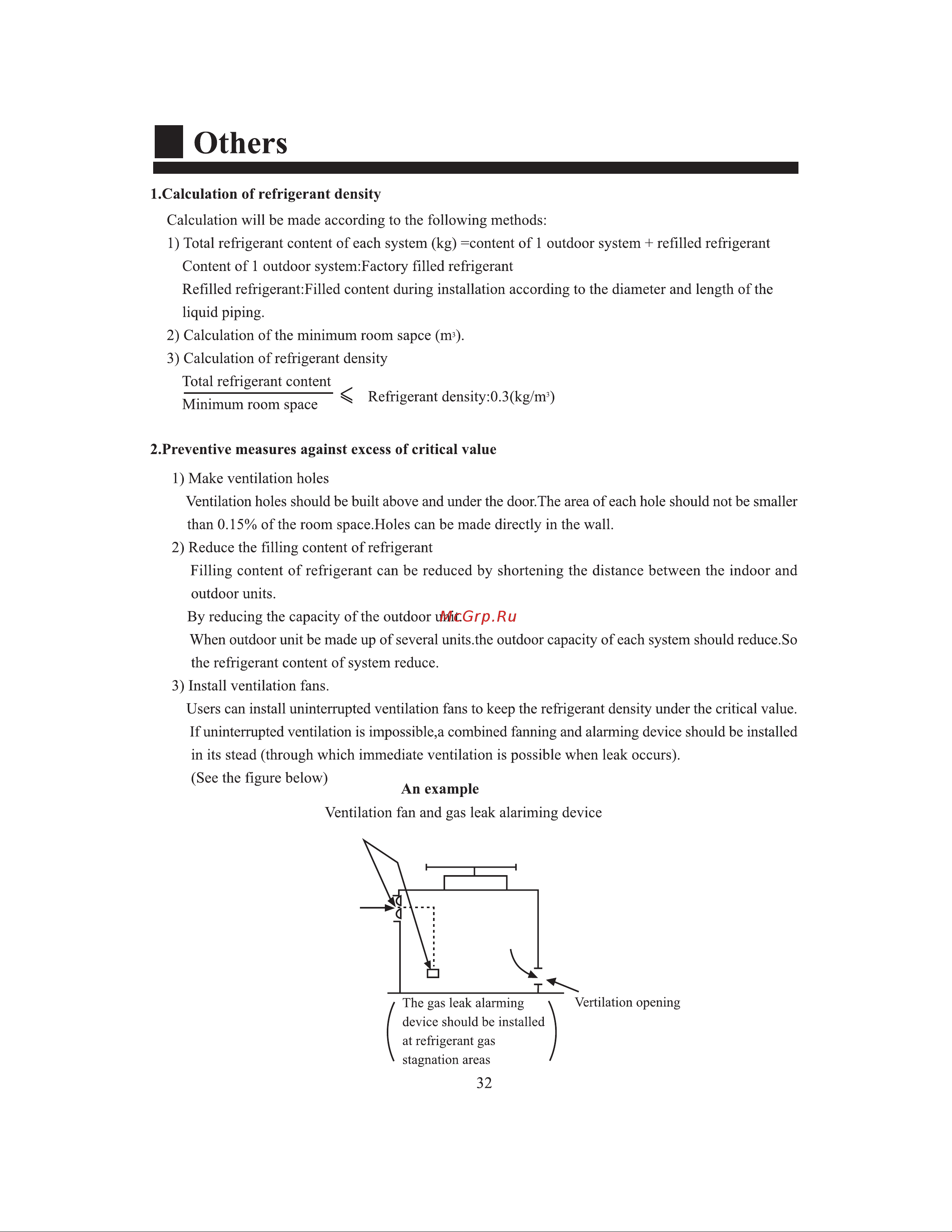

- Others 32
