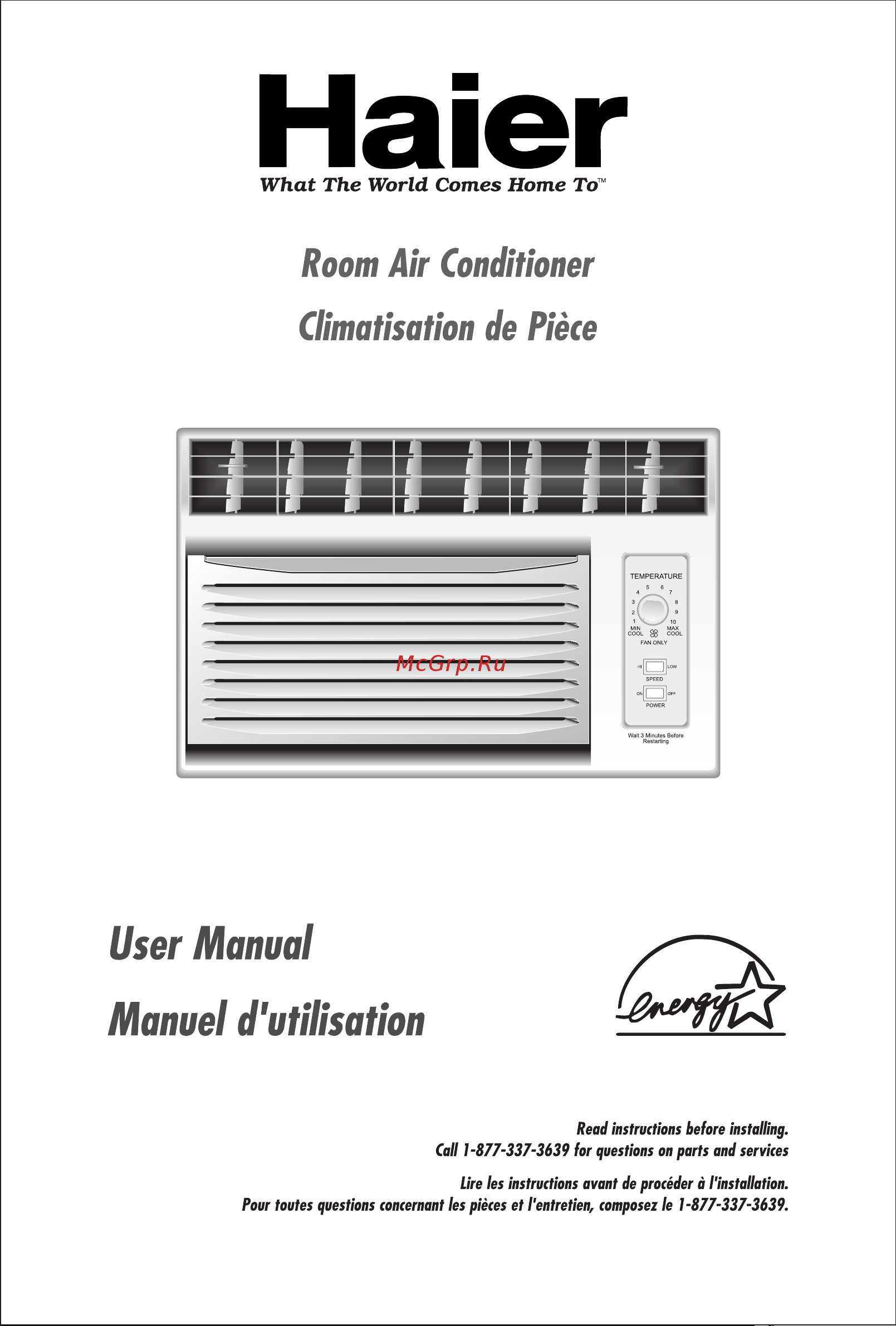

Haier ESAM055-C Инструкция по эксплуатации онлайн
Содержание
- Mode set switch 7
- Temperature 8
- Caution 9
- Assemble curtains top rail 12
- Esam055 c 12
- Install top rail with 3 short screws13 32 12
- Attach basepan angle 13
- Basepan angle 13
- Center line 13
- Center line inner sill 13
- Indoor side 13
- Inside 13
- Install the basepan angle behind the inner window sill with the short side of basepan angle as shown use the 2 short screws13 32 provided the basepan angle helps to hold unit securely in place be sure to place basepan angle edge flush against back of inner sill 13
- Locating unit in window 13
- Open the window and mark center line on the center of the inner sill 13
- Outer sill 13
- Outside 13
- Short screw13 32 inner sill 13
- Short side 13
- This unit is designed for installation in standard double hung windows with actual opening widths of 22 to 36 the upper and lower sash must open sufficiently to allow a clear vertical opening of 14 from the bottom of the sash to the window stool 2 if storm window presents interference fasten a 2 wide wood strip not included outer sill to the inner window sill across the full width of the sill the wood strip should be thick enough to raise the height of the window sill so that the unit can be installed without interference by the storm window frame storm window frame or wood strip outdoors to help condensation to drain properly to the outside 3 install a second wood strip approximately 6 long by 3 2 wide and same thickness as first strip in the center of the outer sill flush against the back off the inner sill this will raise basepan angle 4 if the distance between storm window frame and wood strip mounted on top of inner sill is more than 1 two of wood strip are not necessary 13
- Install the air conditioner in the window 14
- Install the seal gasket and sash lock 14
