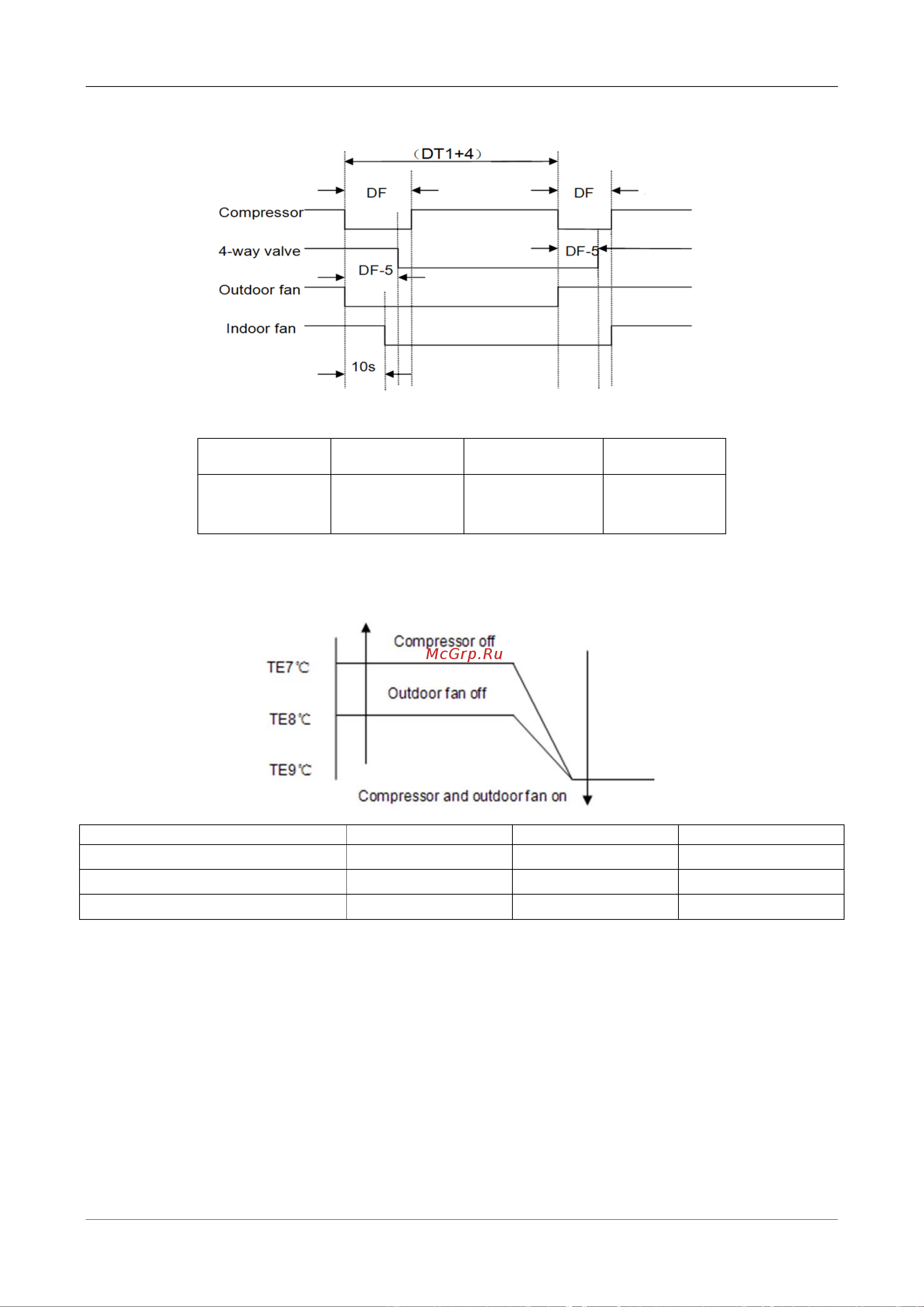

DM12-01.01.09en Oasis On-off
Service manual 45
Defrosting action：
While
TC2(℃) TC3(℃)
DT1(min) DF(s)
20 -3 6 55
10.4.3.5 High evaporator coil temp.T2 protection:
Model TE7 TE8 TE9
MS11M-09HRN1 / MO11M-09HN1
60 53 50
MS11M-12HRN1 / MO11M-12HN1
63 53 50
MS11M-18HRN1 / MO11M-18HN1
60 52 50
