Panasonic CS-CE9JKE Сервис мануал онлайн [68/84] 625843
![Panasonic CS-CE9JKE Сервис мануал онлайн [68/84] 625843](/views2/1833121/page68/bg44.png)
Содержание
- Air conditioner 1
- Indoor unit outdoor unit cs ce9jke cu ce9jke cs ce12jke cu ce12jke 1
- Table of contents 1
- Carry out test run to confirm that no abnormality occurs after the servicing then explain to user the operation care and maintenance as stated in instructions please remind the customer to keep the operating instructions for future reference 3
- Read the following safety precautions carefully before perform any servicing electrical work must be installed or serviced by a licensed electrician be sure to use the correct rating of the power plug and main circuit for the model installed the caution items stated here must be followed because these important contents are related to safety the meaning of each indication used is as below incorrect installation or servicing due to ignoring of the instruction will cause harm or damage and the seriousness is classified by the following indications 3
- Safety precautions 3
- The items to be followed are classified by the symbols 3
- Specifications 5
- Features 11
- Location of controls and components 12
- Printed circuit board 21
- Indoor outdoor unit installation diagram 24
- Indoor unit 24
- Installation instruction 24
- Outdoor unit 24
- Select the best location 24
- How to fix installation plate 25
- Indoor unit 25
- Indoor unit installation 25
- To drill a hole in the wall and install a sleeve of piping 25
- Connect the cable to the indoor unit 27
- After selecting the best location start installation according to indoor outdoor unit installation diagram 1 fix the unit on concrete or rigid frame firmly and horizontally by bolt nut ø10 mm 2 when installing at roof please consider strong wind and earthquake please fasten the installation stand firmly with bolt or nails 28
- Connect a charging hose with a push pin to the low side of a charging set and the service port of the 3 way valve be sure to connect the end of the charging hose with the push pin to the service port 2 connect the center hose of the charging set to a vacuum pump 3 turn on the power switch of the vacuum pump and make sure that the needle in the gauge moves from 0 cmhg 0 mpa to 76 cmhg 0 mpa then evacuate the air approximately ten minutes 28
- Connect the piping 28
- Connecting the piping to indoor please make flare after inserting flare nut locate at joint portion of tube assembly onto the copper pipe in case of using long piping connect the piping align the center of piping and sufficiently tighten the flare nut with fingers further tighten the flare nut with torque wrench in specified torque as stated in the table 28
- Connecting the piping to outdoor decide piping length and then cut by using pipe cutter remove burrs from cut edge make flare after inserting the flare nut located at valve onto the copper pipe align center of piping to valve and then tighten with torque wrench to the specified torque as stated in the table 28
- Evacuation of the equipment 28
- Install the outdoor unit 28
- Outdoor unit 28
- When installing an air conditioner be sure to evacuate the air inside the indoor unit and pipes in the following procedure 28
- Connect the cable to the outdoor unit 29
- Pipe insulation 29
- Basic function 30
- Cooling operation 30
- Heating operation 30
- Internal setting temperature 30
- Operation and control 30
- Soft dry operation 30
- Thermostat control 30
- Automatic operation 31
- Fan operation 31
- Indoor fan motor operation 31
- Airflow direction 32
- Automatic vertical airflow direction can be set using remote control the vane swings up and down within the angles as stated above for heating mode operation the angle of the vane depands on the indoor heat exchanger temperature as figure 1 below when the air conditioner is stopped using remote control the vane will shift to close position 2 manual vertical airflow direction can be set using remote control the angles of the vane are as stated above and the positions of the vane are as figure 2 below when the air conditioner is stopped using remote control the vane will shift to close position 32
- B feedback control immediately after the fan motor started feedback control is performed once every second during fan motor on if fan motor feedback 2550 rpm or 50 rpm continue for 10 seconds then fan motor error counter increase fan motor is then stop and restart if the fan motor counter becomes 7 times then h19 fan motor error is detected operation stops and cannot on back 32
- Heating according to indoor pipe temperature automatic heating fan speed is determined as follows 32
- Outdoor fan motor is operated with 15 fan speed number of rotations it starts when compressor starts operation and it stops 30 seconds after compressor stops operation 32
- Outdoor fan motor operation 32
- There are two types of airflow vertical airflow directed by horizontal vane and horizontal airflow directed by vertical vanes 2 control of airflow direction can be automatic angles of direction is determined by operation mode heat exchanger temperature and intake air temperature and manual angles of direction can be adjusted using remote control 32
- Vertical airflow 32
- Auto restart control 33
- Horizontal airflow 33
- Indication panel 33
- Off timer control 33
- On timer control 33
- Timer control 33
- 30 seconds forced operation 34
- Ipm power transistor prevention control 34
- Protection control 34
- Protection control for all operations 34
- Restart control time delay safety control 34
- Total running current control 34
- Compressor overheating prevention control 35
- Low frequency protection control 1 35
- Low frequency protection control 2 35
- Low pressure prevention control gas leakage detection 35
- Cooling overload control 36
- Dew prevention control 1 36
- Freeze prevention control 1 36
- Freeze prevention control 2 36
- Outdoor air temperature control 36
- Protection control for cooling soft dry operation 36
- Cold draught prevention control 37
- Deice operation 37
- Dew prevention control 2 37
- Intake air temperature control 37
- Low temperature compressor oil return control 37
- Outdoor air temperature control 37
- Overload protection control 37
- Protection control for heating operation 37
- Auto off on button 38
- Servicing mode 38
- Clock button 39
- Remote control button 39
- Reset ac 39
- Reset rc 39
- Set button 39
- Refrigeration cycle system 40
- Troubleshooting guide 40
- Carry out the measurements of pressure electric current and temperature fifteen minutes after an operation is started 41
- Relationship between the condition of the air conditioner and pressure and electric current 41
- Breakdown self diagnosis function 42
- Self diagnosis function three digits alphanumeric code 42
- Error codes table 43
- H11 indoor outdoor abnormal communication 45
- Self diagnosis method 45
- H14 indoor intake air temperature sensor abnormality 46
- H15 compressor temperature sensor abnormality 47
- H16 outdoor current transformer open circuit 48
- H19 indoor fan motor dc motor mechanism locked 49
- H23 indoor pipe temperature sensor abnormality 50
- H27 outdoor air temperature sensor abnormality 51
- H28 outdoor pipe temperature sensor abnormality 52
- H30 compressor discharge temperature sensor abnormality 53
- 0 h33 unspecified voltage between indoor and outdoor 54
- 1 h97 outdoor fan motor dc motor mechanism locked 55
- 2 h98 indoor high pressure protection 56
- 3 h99 indoor freeze prevention protection cooling or soft dry 57
- 4 f11 4 way valve abnormality 58
- 5 f90 power factor correction protection 59
- 6 f91 refrigeration cycle abnormality 60
- 7 f93 compressor rotation failure 61
- 8 f95 cooling high pressure abnormality 62
- 9 f96 ipm overheating 63
- 0 f97 compressor overheating 64
- 1 f98 input over current detection 65
- 2 f99 output over current detection 66
- Checking the power transistor never touch any live parts for at least 10 minutes after turning off the circuit breaker if unavoidable necessary to touch a live part make sure the power transistor s supply voltage is below 50v using the tester for the uvw make measurement at the faston terminal on the board of the relay connector 66
- Malfunction caused dc peak due to compressor failure dc peak due to defective power transistor s dc peak due to defective outdoor unit pcb 66
- Malfunction decision conditions during operation of cooling and heating when an output over current 20 a is detected by checking the current that flows in the inverter dc peak sensing circuitry 66
- Troubleshooting 66
- Disassembly and assembly instructions 67

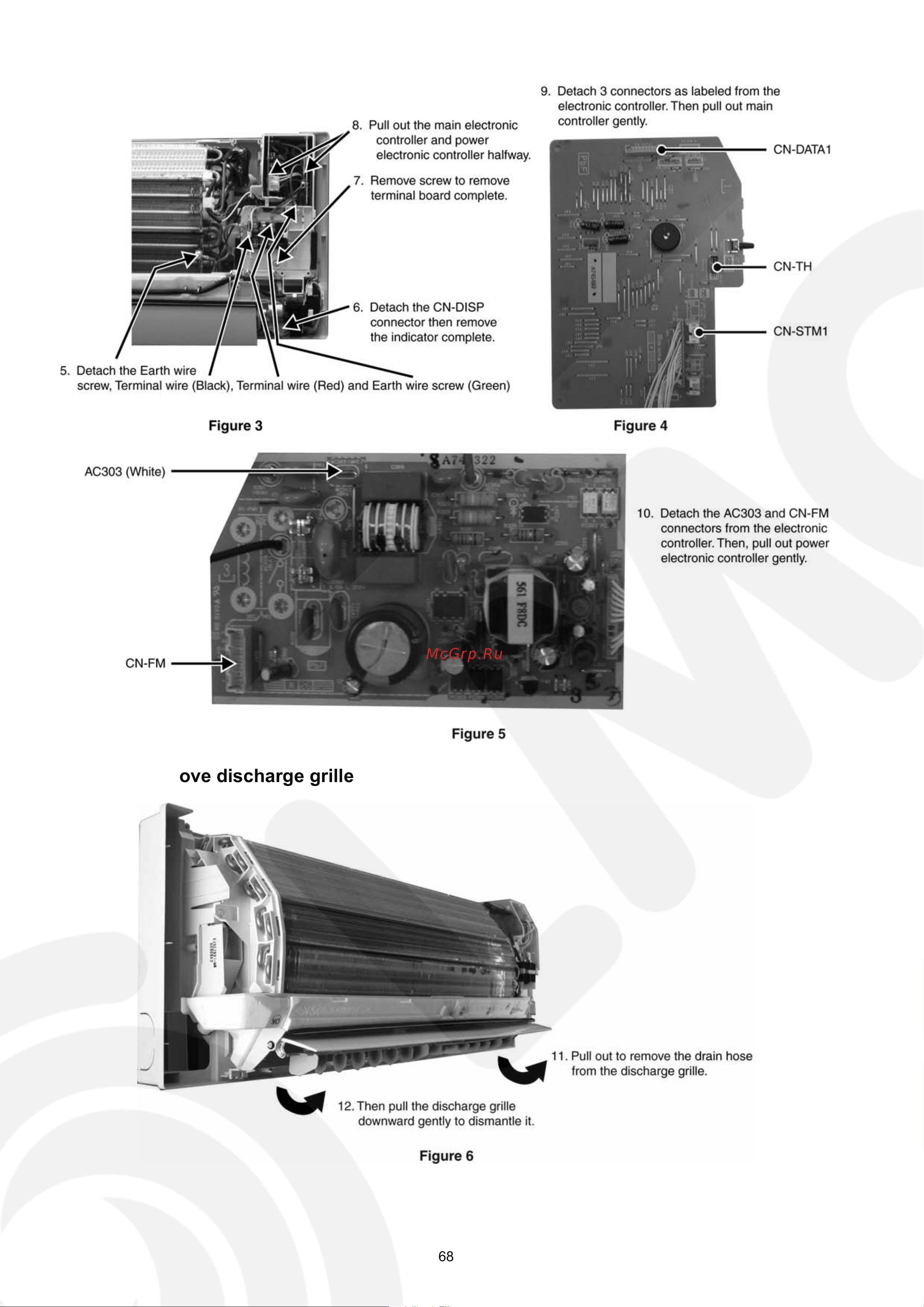

- Indoor electronic controllers cross flow fan and indoor fan motor removal procedures 67
- Outdoor electronic controller removal procedure 71
- Technical data 72
- Cu ce12jke 80
- Cu ce9jke 80
- Sensible capacity chart 80
- Exploded view and replacement parts list 81
- Indoor unit 81
- Note all parts are supplied from phaam malaysia vendor code 00029488 o marked parts are recommended to be kept in stock 82
- Outdoor unit 83
- Note all parts are supplied from phaam malaysia vendor code 00029488 o marked parts are recommended to be kept in stock 84
- Phaam printed in malaysia sfyw0905 00 84
