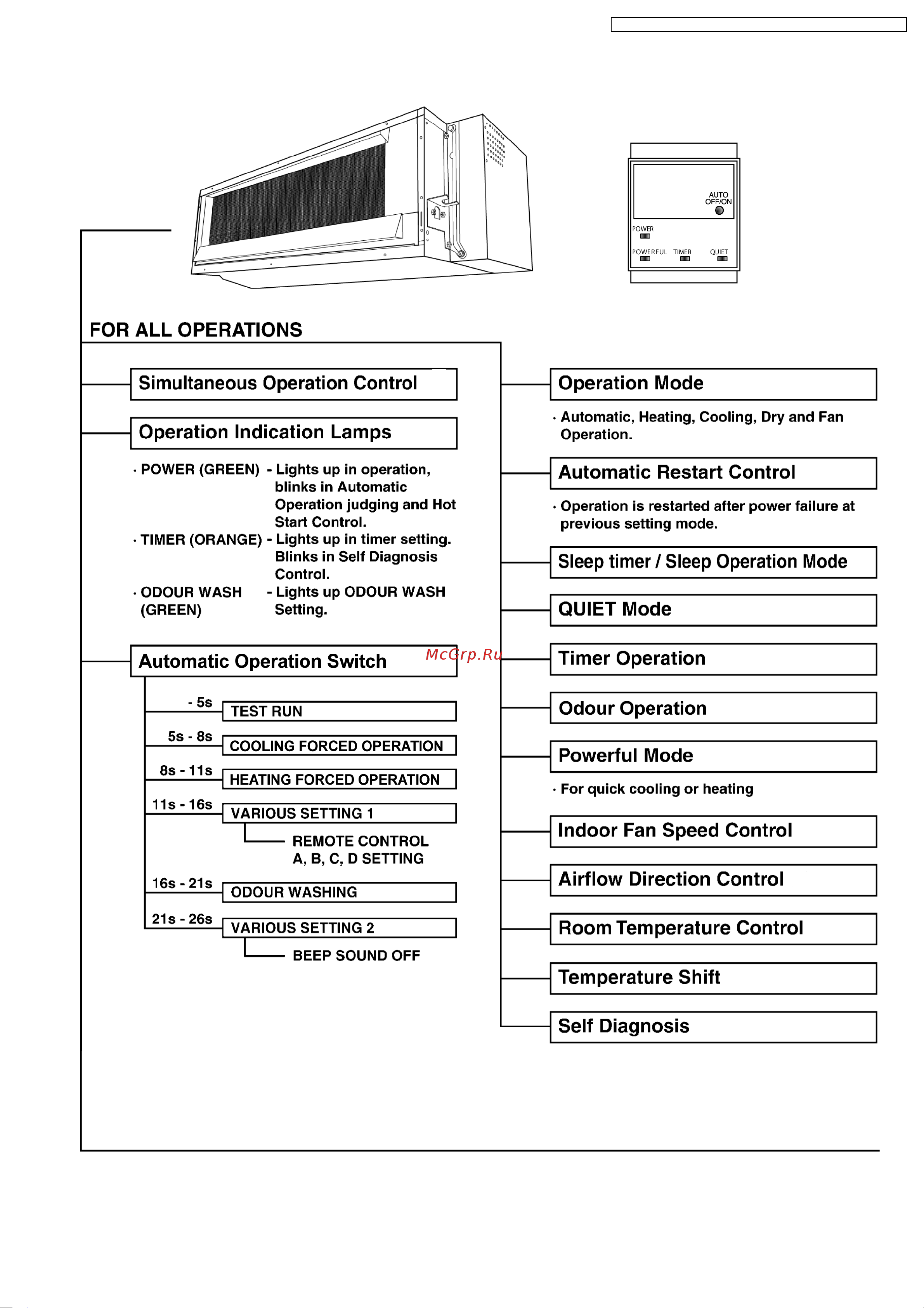

3.2.2. Indoor Unit

CS-ME7DKEG CS-ME10DD3EG / CS-ME10DTEG CS-E15DB4EW

Содержание

Contents 1
Cs me7dkeg cs me10dd3eg cs me10dteg cs e15db4ew 1
Cs me7dkrg cs me7dkdg cs e9dkew cs e9dkrw cs e9dkdw cs e12dkew cs e12dkrw cs e12dkdw cs e15dkew cs e15dkrw cs e15dkdw cs e18dkew cs e18dkrw cs e18dkdw cs e15dd3ew cs e18dd3ew cs e15dtew cs e18dtew cs e18db4ew 1
Multi air conditioner 1
Page page 1
Please file and use this manual together with the service manuals for the following models indoor unit models cs me7ckpg cs me10ckpg cs me12ckpg cs me14ckpg and cs me18ckpg outdoor unit models cu 2e15cbpg cu 2e18cbpg cu 3e23cbpg and cu 4e27cbpg order no rac0209005c2 indoor unit models cs me7cb1p cs me10cb1p cs me12cb1p cs me14cb1p cs me10cd3p and cs me14cd3p outdoor unit models cu 3e23cbpg and cu 4e27cbpg order no rac0312001a8 1
Features 3
About lead solder pbf 4
Caution 4
Distinction of pbf p c board 4
Functions 5
Product specifications 15
Specifications are subject to change without notice for further improvement 15
Wall type 15
Duct type 16
Specifications are subject to change without notice for further improvement 16
Ceiling floor type 17
Specifications are subject to change without notice for further improvement 17
Mini cassette type 18
Specifications are subject to change without notice for further improvement 18
2 kw class model indicates cs me10dd3eg duct and cs me10dteg ceiling floor 19
A combination of 2 kw 2 kw includes the following 19
Cs me10dd3eg duct cs e9dkew wall 19
Cs me10dd3eg duct cs e9dkrw wall 19
Cs me10dd3eg duct cs me10dd3eg duct 19
Cs me10ddteg ceiling floor cs me10dteg ceiling floor 19
Cs me10dteg ceiling floor cs e9dkew wall 19
Cs me10dteg ceiling floor cs e9dkrw wall 19
Cs me10dteg ceiling floor cs me10dd3eg duct 19
Outdoor units cu 2e15cbpg cu 2e18cbpg 19
Outdoor units cu 3e23cbpg cu 4e27cbpg 20
Dimensions 24
Refrigeration cycle diagram 30
Wiring diagram 33
Basic function 37
Internal setting temperature 37
Inverter control which equipped with a microcomputer in determining the most suitable operating mode as time passes automatically adjusts output power for maximum comfort always in order to achieve the suitable operating mode the microcomputer maintains the set temperature by measuring the temperature of the environment and performing temperature shifting the compressor at outdoor unit is operating following the frequency instructed by the microcomputer at indoor unit that judging the condition according to internal setting temperature and intake air temperature 37
Once the operation starts remote control setting temperature will be taken as base value for temperature shifting processes these shifting processes are depending on the air conditioner settings and the operation environment the final shifted value will be used as internal setting temperature and it is updated continuously whenever the electrical power is supplied to the unit 37
Operation details 37
Table a auto operation mode setting 37
Table b outdoor air temperature shifting 37
Table c power mode shifting 37
Wall type 37
After deice complete within 600 sec 38
Comp starting within 600 sec 38
Comp stop 38
During deice 38
During operation it will compare with the target room temperature offset value at specific period then the room temperature will be updated 38
Heating zone e and above temperature gap is big and great capacity increased 38
However if the following condition is occurred temperature cannot detect correctly and therefore no updating will be done 38
I initial value when operation starts or changing the actual operation mode 38
Ii updating during operation 38
Room temperature shift value dgeta 38
Set the offset value at each operation mode however in order to improve the heating startup efficiency the offset value will be changed based on the gap between setting temperature and room temperature 38
Table d indoor air temperature shifting 38
Target room temperature shift value dgetadst 38
The heat exchanger unit s temperature is different based on operation mode it becomes the action operation mode value 38
To offset the absolute gap between detection temperature with actual room temperature 38
Update the room temperature offset value dgeta 38
When compressor on off correction of detected room temperature by shift value during defrost etc 38
Simultaneous operation control 39
Cooling operation 40
Heating operation 40
Soft dry operation 40
Thermostat control 40
Automatic operation 41
During operation mode judgment indoor fan motor with speed of lo and outdoor fan motor are running for 30 seconds to detect the indoor intake and outdoor air temperature the operation mode is decided based on below chart 41
The operation mode chart for this example is as shown in below figure and the operation mode to be performed will depend on indoor intake air temperature and outdoor air temperature at the time when the judgment is made 41
There is a temperature shifting on t1 t2 and t3 if the operation mode judged is changed from cooling soft dry to heating or vice verse 41
This mode can be set using remote control and the operation is decided by remote control setting temperature indoor intake air temperature and outdoor air temperature 41
Values of t1 t2 and t3 depend on remote control setting temperature as shown in below table after the adjustment of t1 t2 and t3 values the operation mode for that particular environment and remote control setting is judged and performed based on the above operation mode chart every 3 hours 41
A basic rotation speed rpm 42
Cooling dry fan 42
Heating 42
Indoor fan motor operation 42
Refer to the cs e12dkew column for cs e12dkrw and cs e12dkdw 42
Refer to the cs e15dkew column for cs e15dkrw and cs e15dkdw 42
Refer to the cs e18dkew column for cs e18dkrw and cs e18dkdw 42
Refer to the cs e9dkew column for cs e9dkrw and cs e9dkdw 42
Refer to the cs me7dkeg column for cs me7dkrg and cs me7dkdg 42
Required rotation speed for fan is set to respond to the remote control setting 10 rpm unit 42
Cooling 44
Heating 44
Ii auto fan speed 44
Refer to the cs e12dkew column for cs e12dkrw and cs e12dkdw 44
Refer to the cs e15dkew column for cs e15dkrw and cs e15dkdw 44
Refer to the cs e18dkew column for cs e18dkrw and cs e18dkdw 44
Refer to the cs e9dkew column for cs e9dkrw and cs e9dkdw 44
Refer to the cs me7dkeg column for cs me7dkrg and cs me7dkdg 44
Airflow direction 46
Automatic vertical airflow direction can be set using remote control the vane swings up and down within the angles as stated above for heating mode operation the angle of the vane depends on the indoor heat exchanger temperature as figure 1 below when the air conditioner is stopped using remote control the vane will shift to close position 46
Control at cooling dry operation and auto fan speed 46
Control of airflow direction can be automatic angles of direction is determined by operation mode heat exchanger temperature and intake air temperature and manual angles of direction can be adjusted using remote control 46
D deodorizing control 46
I control condition 46
Ii operation 46
Manual vertical airflow direction can be set using remote control the angles of the vane are as stated above and the positions of the vane are as figure 2 below when the air conditioner is stopped using remote control the vane will shift to close position 46
No deodorizing control is performed during on timer standby operation and during anti freezing control prevention 46
The odor status is arranged as below and it is shifted as follows 46
There are two types of airflow vertical airflow directed by horizontal vane and horizontal airflow directed by vertical vanes 46
Vertical airflow 46
A powerful button is pressed 47
A purpose 47
A quiet operation start condition 47
Automatic horizontal airflow direction can be set using remote control the vane swings left and right within the angles as stated below for heating mode operation the angle of the vane depends on the indoor heat exchanger temperature as figure 1 below 47
B control condition 47
B quiet operation stop condition 47
B stop by off on switch 47
C timer off activates 47
D quiet button is pressed again 47
Horizontal airflow 47
Manual horizontal airflow direction can be set using remote control the angles of the vane are as stated below and the positions of the vane are as figure 2 above 47
Quiet led illuminates 47
Quiet operation cooling mode cooling area of dry mode 47
To provide quiet cooling operation compare to normal operation 47
When one of the following conditions is satisfied quiet operation stops 47
When quiet button at remote control is pressed 47
Quiet operation heating 48
Delay off timer control 49
Delay on timer control 49
Powerful mode operation 49
Auto restart control 50
Indication panel 50
Auto operation switch 51
Ionizer operation 51
A stopped by on off switch 52
B operation mode ionizer operation 52
B timer off activates 52
C ion feedback signal shows error 52
C timer during ionizer operation 52
I purpose 52
Ii two types of problem detection control 52
Ionising operation start condition 52
Ionising operation stop condition 52
Ionizer problem detection control 52
Power led also illuminates 52
Refer to case study in next page for details 52
To inform user of ionizer problems and detection 52
When air conditioner unit is in on condition heat cool dry fan auto mode and an ion operation button at remote control is pressed ionizer on ion led illuminates 3 4 52
When ion is displayed on the remote controller ionizer operates 52
When one of the following conditions is satisfied ion operation stops 52
Anti freezing control 53
Ionizer operation case study 53
Duct type 54
Simultaneous operation control 54
Indoor fan control 55
Drain pump control 56
Auto restart control 57
Auto button 58
Other indoor unit operation functions 58
Drain test sw1 59
High static pressure switch high state switch sw2 59
Basic function 60
Ceiling floor type 60
Internal setting temperature 60
Inverter control which equipped with a microcomputer in determining the most suitable operating mode as time passes automatically adjusts output power for maximum comfort always in order to achieve the suitable operating mode the microcomputer maintains the set temperature by measuring the temperature of the environment and performing temperature shifting the compressor at outdoor unit is operating following the frequency instructed by the microcomputer at indoor unit that judging the condition according to internal setting temperature and intake air temperature 60
Once the operation starts remote control setting temperature will be taken as base value for temperature shifting processes these shifting processes are depending on the air conditioner settings and the operation environment the final shifted value will be used as internal setting temperature and it is updated continuously whenever the electrical power is supplied to the unit 60
Table a auto operation mode setting 60
Table b outdoor air temperature shifting 60
Table c power mode shifting 60
After deice complete within 600 sec 61
Comp starting within 600 sec 61
Comp stop 61
During deice 61
During operation it will compare with the target room temperature offset value at specific period then the room temperature will be updated 61
Heating zone e and above temperature gap is big and great capacity increased 61
However if the following condition is occurred temperature cannot detect correctly and therefore no updating will be done 61
I initial value when operation starts or changing the actual operation mode 61
Ii updating during operation 61
Room temperature shift value dgeta 61
Set the offset value at each operation mode however in order to improve the heating startup efficiency the offset value will be changed based on the gap between setting temperature and room temperature 61
Table d indoor air temperature shifting 61
Table e 61
Target room temperature shift value dgetadst 61
The heat exchanger unit s temperature is different based on operation mode it becomes the action operation mode value 61
To offset the absolute gap between detection temperature with actual room temperature 61
Update the room temperature offset value dgeta 61
When compressor on off correction of detected room temperature by shift value during defrost etc 61
Simultaneous operation control 62
Cooling operation 63
Heating operation 63
Soft dry operation 63
Thermostat control 63
Automatic operation 64
During operation mode judgment indoor fan motor with speed of lo and outdoor fan motor are running for 30 seconds to detect the indoor intake and outdoor air temperature the operation mode is decided based on below chart 64
The operation mode chart for this example is as shown in below figure and the operation mode to be performed will depend on indoor intake air temperature and outdoor air temperature at the time when the judgment is made 64
There is a temperature shifting on t1 t2 and t3 if the operation mode judged is changed from cooling soft dry to heating or vice verse 64
This mode can be set using remote control and the operation is decided by remote control setting temperature indoor intake air temperature and outdoor air temperature 64
Values of t1 t2 and t3 depend on remote control setting temperature as shown in below table after the adjustment of t1 t2 and t3 values the operation mode for that particular environment and remote control setting is judged and performed based on the above operation mode chart every 30 minutes 64
A basic rotation speed rpm 65
Cooling dry fan 65
Heating 65
Indoor fan motor operation 65
Required rotation speed for fan is set to respond to the remote control setting 10 rpm unit 65
Cooling 67
Heating 67
Ii auto fan speed 67
Airflow direction 69
Automatic vertical airflow direction can be set using remote control the vane swings up and down within the angles as stated above for heating mode operation the angle of the vane depends on the indoor heat exchanger temperature as figure 1 below when the air conditioner is stopped using remote control the vane will shift to close position 69
Control of airflow direction can be automatic angles of direction is determined by operation mode heat exchanger temperature and intake air temperature and manual angles of direction can be adjusted using remote control 69
Manual vertical airflow direction can be set using remote control the angles of the vane are as stated above and the positions of the vane are as figure 2 below when the air conditioner is stopped using remote control the vane will shift to close position 69
There is one type of airflow vertical airflow directed by horizontal vane 69
Vertical airflow 69
Quiet operation cooling mode cooling area of dry mode 70
Quiet operation heating 70
Delay on timer control 71
Powerful mode operation 71
Auto operation switch 72
Auto restart control 72
Delay off timer can be set using remote control the unit with timer set will stop operate at set time 72
Delay off timer control 72
If power led is blinking the possible operations of the unit are hot start during deice operation operation mode judgment or delay on timer sampling 72
If timer led is blinking there is an abnormality operation occurs 72
Indication panel 72
This type of control is not applicable during on off timer setting 72
When the power supply is cut off during the operation of air conditioner the compressor will re operate within three to four minutes there are 10 patterns between 2 minutes 58 seconds and 3 minutes 52 seconds to be selected randomly after power supply resumes 72
When the switch is pressed between 0 to 5 seconds auto mode operation starts to function 72
When the switch is pressed between 11 to 16 seconds and together with the signal from remote control timer decrement button for 5s the unit can be changed to different controlling setting 4 type of transmission codes 72
When the switch is pressed between 16 to 21 seconds either h14 error detection selection mode or the remote control signal receiving sound can be cancelled or turned on 72
When the switch is pressed between 5 to 8 seconds the unit is forced to operate in cooling mode 72
When the switch is pressed between 8 to 11 seconds the unit will enter forced heating mode standby press timer decrement button for 5s for the unit to operate in heating mode 72
Anti dew formation control 73
Anti freezing control 73
Basic function 74
Internal setting temperature 74
Inverter control which equipped with a microcomputer in determining the most suitable operating mode as time passes automatically adjusts output power for maximum comfort always in order to achieve the suitable operating mode the microcomputer maintains the set temperature by measuring the temperature of the environment and performing temperature shifting the compressor at outdoor unit is operating following the frequency instructed by the microcomputer at indoor unit that judging the condition according to internal setting temperature and intake air temperature 74
Mini cassette type 74
Once the operation starts remote control setting temperature will be taken as base value for temperature shifting processes these shifting processes are depending on the air conditioner settings and the operation environment the final shifted value will be used as internal setting temperature and it is updated continuously whenever the electrical power is supplied to the unit 74
Table a auto operation mode setting 74
Table b outdoor air temperature shifting 74
Table c power mode shifting 74
After deice complete within 600 sec 75
Comp starting within 600 sec 75
Comp stop 75
During deice 75
During operation it will compare with the target room temperature offset value at specific period then the room temperature will be updated 75
Heating zone e and above temperature gap is big and great capacity increased 75
However if the following condition is occurred temperature cannot detect correctly and therefore no updating will be done 75
I initial value when operation starts or changing the actual operation mode 75
Ii updating during operation 75
Room temperature shift value dgeta 75
Set the offset value at each operation mode however in order to improve the heating startup efficiency the offset value will be changed based on the gap between setting temperature and room temperature 75
Table d indoor air temperature shifting 75
Target room temperature shift value dgetadst 75
The heat exchanger unit s temperature is different based on operation mode it becomes the action operation mode value 75
To offset the absolute gap between detection temperature with actual room temperature 75
Update the room temperature offset value dgeta 75
When compressor on off correction of detected room temperature by shift value during defrost etc 75
Simultaneous operation control 76
Cooling operation 77
Heating operation 77
Soft dry operation 77
Thermostat control 77
Automatic operation 78
During operation mode judgment indoor fan motor with speed of lo and outdoor fan motor are running for 30 seconds to detect the indoor intake and outdoor air temperature the operation mode is decided based on below chart 78
The operation mode chart for this example is as shown in below figure and the operation mode to be performed will depend on indoor intake air temperature and outdoor air temperature at the time when the judgment is made 78
There is a temperature shifting on t1 t2 and t3 if the operation mode judged is changed from cooling soft dry to heating or vice verse 78
This mode can be set using remote control and the operation is decided by remote control setting temperature indoor intake air temperature and outdoor air temperature 78
Values of t1 t2 and t3 depend on remote control setting temperature as shown in below table after the adjustment of t1 t2 and t3 values the operation mode for that particular environment and remote control setting is judged and performed based on the above operation mode chart every 30 minutes 78
A basic rotation speed rpm 79
Cooling dry fan 79
Heating 79
Indoor fan motor operation 79
Required rotation speed for fan is set to respond to the remote control setting 10 rpm unit 79
Cooling 81
Heating 81
Ii auto fan speed 81
Airflow direction 83
Automatic vertical airflow direction can be set using remote control the vane swings up and down within the angles as stated above for heating mode operation the angle of the vane depends on the indoor heat exchanger temperature as figure 1 below when the air conditioner is stopped using remote control the vane will shift to close position 83
Control at cooling dry operation and auto fan speed setting 83
Control of airflow direction can be automatic angles of direction is determined by operation mode heat exchanger temperature and intake air temperature and manual angles of direction can be adjusted using remote control 83
D deodorizing control 83
I control condition 83
Ii operation 83
Manual vertical airflow direction can be set using remote control the angles of the vane are as stated above and the positions of the vane are as figure 2 below when the air conditioner is stopped using remote control the vane will shift to close position 83
No deodorizing control is performed during on timer standby operation and during anti freezing control prevention 83
The odor status is arranged as below and it is shifted as follows 83
There is one type of airflow vertical airflow directed by horizontal vane 83
Vertical airflow 83
Quiet operation cooling mode cooling area of dry mode 84
Quiet operation heating 84
Powerful mode operation 85
Auto operation switch 86
Auto restart control 86
Delay off timer can be set using remote control the unit with timer set will stop operate at set time 86
Delay off timer control 86
Delay on timer can be set using remote control the unit with timer set will start operate earlier than the setting time this is to provide a comfortable environment when reaching the set on time 86
Delay on timer control 86
From the above judgment the decided operation will start operate earlier than the set time as shown below 86
If power led is blinking the possible operations of the unit are hot start during deice operation operation mode judgment or delay on timer sampling 86
If timer led is blinking there is an abnormality operation occurs 86
Indication panel 86
Minutes before the set time indoor at fan speed of lo and outdoor fan motor start operate for 30 seconds to determine the indoor intake air temperature and outdoor air temperature in order to judge the operation starting time 86
This type of control is not applicable during on off timer setting 86
When the power supply is cut off during the operation of air conditioner the compressor will re operate within three to four minutes there are 10 patterns between 2 minutes 58 seconds and 3 minutes 52 seconds to be selected randomly after power supply resumes 86
When the switch is pressed between 0 to 5 seconds auto mode operation starts to function 86
When the switch is pressed between 5 to 8 seconds the unit is forced to operate in cooling mode 86
When the switch is pressed between 8 to 11 seconds the unit will enter forced heating mode standby press timer decrement button for 5s for the unit to operate in heating mode 86
Anti dew formation control 87
Anti freezing control 87
Breakdown self diagnosis function three digits alphanumeric code 88
Self diagnosis display 88
Error code 89
A chemical characteristics the chemical characteristics of r410a are similar to those of r22 in that both are chemically stable non flammable refrigerants with low toxicity however just like r22 the specific gravity of r410a gas is heavier than that of air because of this it can cause an oxygen deficiency if it leaks into a closed room since it collects in the lower area of the room it also generates toxic gas when it is directly exposed to a flame so it must be used in a well ventilated environment where it will not collect 139
About r410a refrigerant 139
B compositional change pseudo azeotropic characteristics r410a is a pseudo azeotropic mixture comprising the two components r32 and r125 multi component refrigerants with these chemical characteristics exhibit little compositional change even from phase changes due to vaporization or condensation which means that there is little change in the circulating refrigerant composition even when the refrigerant leaks from the gaseous section of the piping accordingly r410a can be handled in almost the same manner as the single component refrigerant r22 however when charging because there is a slight change in composition between the gas phase and the liquid phase inside a cylinder or other container charging should basically begin with the liquid side 139
C pressure characteristics as seen in table 2 the gas pressure of r410a is approximately 1 times as high as that of r22 at the same refrigerant temperature which means that special r410a tools and materials with high pressure specifications must be used for all refrigerant piping work and servicing 139
Converting air conditioners to r410a since it was declared in1974 that chlorofluorocarbons cfc hydro chlorofluorocarbons hcfc and other substances pose a destructive danger to the ozone layer in the earth s upper stratosphere 20 to 40 km above the earth measures have been taken around the world to prevent this destruction the r22 refrigerant which has conventionally been used in acs is an hcfc refrigerant and therefore possesses this ozone destroying potential international regulations the montreal protocol on ozone damaging substances and the domestic laws of various countries call for the early substitution of r22 by a refrigerant which will not harm the ozone layer 139
In acs the hfc refrigerant which has become the mainstream alternative is called r410a compared with r22 the pressure of r410a is approximately 1 times as high at the same refrigerant temperature but the energy efficiency is about the same consisting of hydrogen h fluorine f and carbon c r410a is an hfc refrigerant another typical hfc refrigerant is r407c while the energy efficiency of r407c is somewhat inferior to that of r410a it offers the advantage of having pressure characteristics which are about the same as those of r22 and is used mainly in packaged acs 139
Installation and servicing air conditioner using r410a 139
Outline 139
The characteristics of hfc r410a refrigerants 139
1 always replace the dryer of the outdoor unit at the same time the replacement dryer is wrapped in a vacuum pack replace it last among the refrigerating cycle parts start brazing as soon as you have opened the vacuum pack and begin the vacuuming operation within 2 hours 140
1 you can use the conventional r22 flaring tool if you need to buy a new tool buy the r410a type 140
2 use when it is necessary to detect small gas leaks 140
After finishing the installation check to make sure there is no refrigerant gas leaking 140
Cause the gas pressure of r410a is approximately 1 times as high as that of r22 a mistake in installation or servicing could result in a major accident it is essential that you use r410a tools and materials and that you observe the following precautions to ensure safety 140
D r410a refrigerating machine oil conventionally mineral oil or a synthetic oil such as alkylbenzene has been used for r22 refrigerating machine oil because of the poor compatibility between r410a and conventional oils like mineral oil however there is a tendency for the refrigerating machine oil to collect in the refrigerating cycle for this reason polyester and other synthetic oils which have a high compatibility with r410a are used as refrigerating machine oil because of the high hygroscopic property of synthetic oil more care must be taken in its handling than was necessary with conventional refrigerating machine oils also these synthetic oils will degrade if mixed with mineral oil or alkylbenzene causing clogging in capillary tubes or compressor malfunction do not mix them under any circumstances 140
Do not perform any alterations on the ac unit under any circumstances have all repair work done by a specialist incorrect repairs can result in a water leakage electric shock fire etc 140
Do not use any refrigerant other than r410a in acs that have been used with r410a 140
For other installation work you should have the usual tools such as screwdrivers a metal cutting saw an electrical drill a hole core drill 65 or 70 dia a tape measure a level a thermometer a clamp meter an insulation tester a voltmeter etc 140
If any refrigerant gas leaks while you are working ventilate the room toxic gas may be generated if refrigerant gas is exposed to a direct flame 140
In order to prevent an r410a ac from mistakenly being charged with any other refrigerant the diameter of the 3 way valve service port on the outdoor unit has been changed also to increase its ability to withstand pressure the opposing dimensions have been changed for the refrigerant pipe flaring size and flare nut accordingly when installing or servicing refrigerant piping you must have both the r410a and ordinary tools listed below 140
Necessary tools 140
Safety measures when installing servicing refrigerant piping 140
Tools for installing servicing refrigerant piping 140
When installing or transferring an ac do not allow any air or substance other than r410a to mix into the refrigeration cycle if it does the pressure in the refrigeration cycle can become abnormally high possibly causing an explosion and or injury 140
When installing or transferring an ac follow the instructions in the installation instructions carefully incorrect installation can result in an abnormal refrigeration cycle or water leakage electric shock fire etc 140
Because the pressure is higher for the r410a type the conventional type cannot be used 141
Copper tube gauge for clearance adjustment used when flaring with the conventional flaring tool clutch type 141
Flaring tool clutch type 141
In the r410a flaring tool the receiving hole for the clamp bar is enlarged so the clearance from the clamp bar can be set to 0 0 mm and the spring inside the tool is strengthened to increase the strength of the pipe expanding torque this flaring tools can also be used with r22 piping so we recommend that you select it if you are buying a new flaring tool 141
Manifold gauge 141
R410a tools 141
The shape of the manifold ports has been changed to prevent the possibility of mistakenly charging with another type of refrigerant 141
This gauge makes it easy to set the clearance for the copper tube to 1 1 mm from the clamp bar of the flaring tool 141
Torque wrenches 141
R410a tools which are usable for r22 models 143
Piping materials 144
Processing and connecting piping materials 144
Refrigerant piping work 144
A check to make sure there is no scratches dust etc on the flare and union 145
B align the flared surface with the axial center of the union 145
C use a torque wrench and tighten to the specified torque the tightening torque for r410a is the same as the conventional torque value for r22 be careful because if the torque is too weak it may lead to a gas leak if it is too strong it may split the flare nut or make it impossible to remove the flare nut 145
Procedure and precautions for flare connection 145
Storing and managing piping materials 146
Inspecting gas leaks with a vacuum pump for new installations using new refrigerant piping 147
Installation transferring servicing 147
Ac units replacement using existing refrigerant piping 148
Recharging refrigerant during servicing 148
Refrigerant compatibility using r410a refrigerant in r22 acs and vice versa 148
Transferring using new refrigerant piping 148
Brazing 150
Servicing tips 150
Disassembly of parts 151
Indoor control board removal procedures 151
Remove the front grille 151
Remove the indoor control board 151
Wall type 151
Cross flow fan and fan motor removal procedures 152
Electronic controller removal procedures 152
Remove cross flow fan and fan motor 152
Remove main electronic controller 152
Duct type 153
Ceiling floor type 155
Electronic controller removal procedure 155
Fan motor removal procedure 155
Front grille removal procedure 155
Disassembly of parts 156
Mini cassette type 156
All parts are supplied from phaam malaysia vendor code 061 187
Marked parts are recommended to be kept in stock 187
Models cs me7dkeg cs me7dkrg cs me7dkdg cs e9dkew cs me9dkrw cs e9dkdw cs e12dkew cs e12dkrw cs e12dkdw 187
Replacement parts list indoor unit 187
All parts are supplied from phaam malaysia vendor code 061 189
Marked parts are recommended to be kept in stock 189
Models cs e15dkew cs e15dkrw cs e15dkdw 189
Replacement parts list indoor unit 189
All parts are supplied from phaam malaysia vendor code 061 191
Marked parts are recommended to be kept in stock 191
Models cs e18dkew cs e18dkrw cs e18dkdw 191
Replacement parts list indoor unit 191
All parts are supplied from acd in japan 193
Marked parts are recommended to be kept in stock 193
Models cs me10dd3eg cs e15dd3ew cs e18dd3ew 193
Replacement parts list indoor unit 193
All parts are supplied from phaam malaysia vendor code 061 195
Marked parts are recommended to be kept in stock 195
Models cs me10dteg cs e15dtew cs e18dtew 195
Replacement parts list indoor unit 195
All parts are supplied from phaam malaysia vendor code 061 198
Marked parts are recommended to be kept in stock 198
Models cs e15db4ew cs e18db4ew 198
Replacement parts list indoor unit 198
Acd printed in japan 200
All parts are supplied from phaam malaysia vendor code 061 200
Marked parts are recommended to be kept in stock 200
Model cz bt12de front grille complete 200
Replacement parts list indoor unit front grille 200
