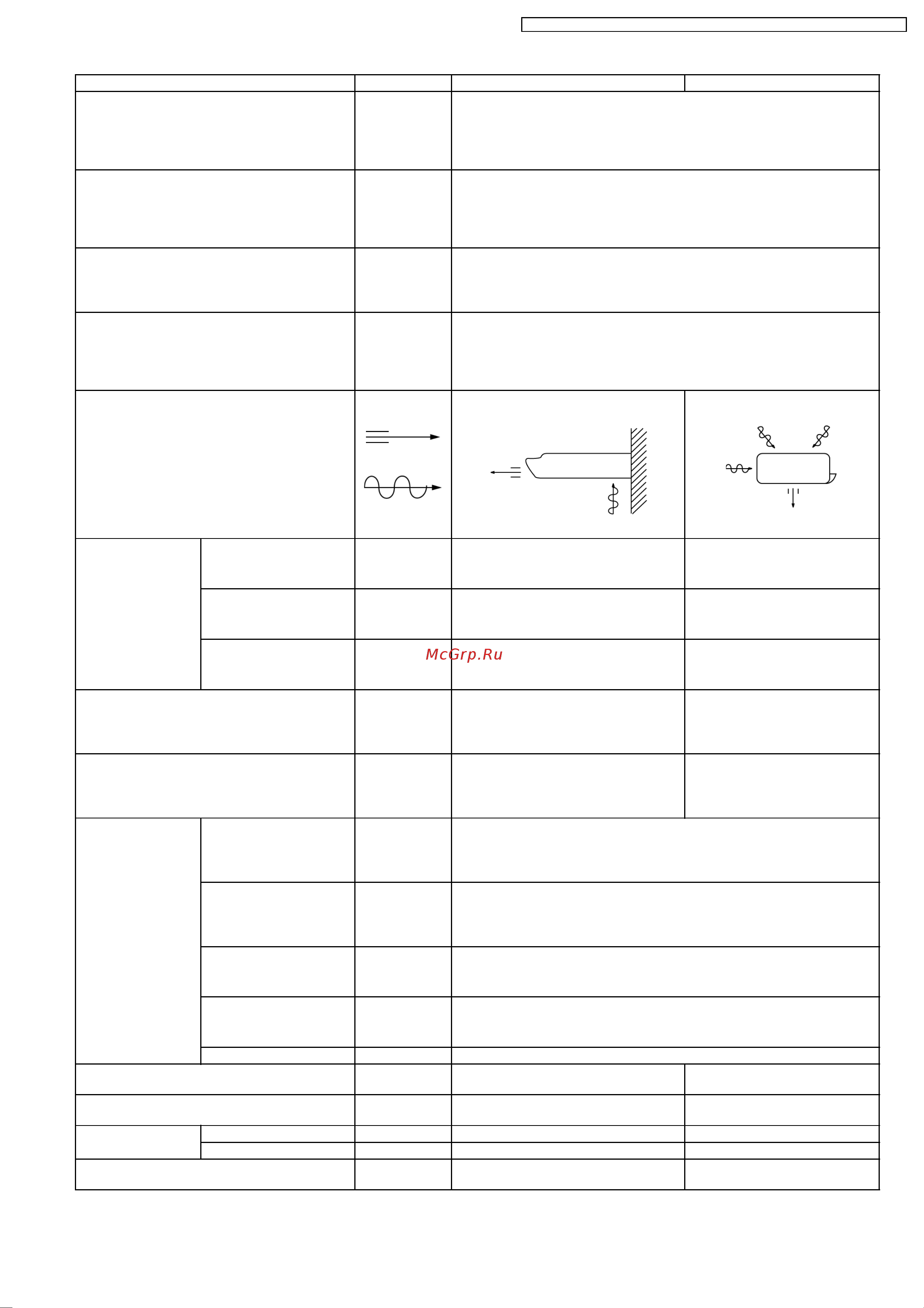

Unit CS-A18ATP5 CU-A18ATPT5
Cooling Capacity kW
BTU/h
kcal/h
5.05; 5.05; 5.10
17,200; 17,200; 17,400
4,340; 4,340; 4,390
Heating Capacity kW
BTU/h
kcal/h
5.35; 5.35; 5.45
18,200; 18,200; 18,600
4,600; 4,600; 4,690
Moisture Removal l/h
Pint/h
2.8
5.9
Power Source Phase
V
Cycle
Single
220; 230; 240
50
Airflow Method OUTLET
INTAKE
SIDE VIEW TOP VIEW
Air Volume Indoor Air (Lo) m
3
/min (cfm) 10.4 (354) —
Indoor Air (Me) m
3
/min (cfm) 10.7 (379) —
Indoor Air (Hi) m
3
/min (cfm) 11.5 (400) —
Noise Level dB (A) Cooling: High 50; 51; 51 Low 44; 46; 46
Heating: High 51; 52; 52 Low 45; 46; 46
Cooling: High 53; 56; 56
Heating: High 56; 57; 57
Power Noise Level dB (A) Cooling: High 64
Heating: High 65
Cooling: High 71
Heating: High 72
Electrical Data Input kW Cooling: 2.08; 2.13; 2.19
Heating: 1.90; 1.98; 2.04
Running Current A Cooling: 10.3; 10.5; 10.7
Heating: 9.4; 9.7; 9.9
EER W/W (BTU/hW) Cooling: 2.43 (8.3); 2.37 (8.1); 2.33 (7.9)
COP W/W (BTU/hW) Heating: 2.82 (9.6); 2.70 (9.2); 2.67 (9.1)
Starting Current A 47
Piping Connection Port
(Flare piping)
inch
inch
G ; Half Union 1/2”
L ; Half Union 1/4”
G ; 3-way valve 1/2”
L ; 2-way valve 1/4”
Pipe Size
(Flare piping)
inch
inch
G (gas side) ; 1/2”
L (liquid side) ; 1/4”
G (gas side) ; 1/2”
L (liquid side) ; 1/4”
Drain
Hose
Inner diameter mm 20 —
Length m 0.6 —
Power Cord Length
Number of core-wire
m 2.3
3 (1.5 mm
2
)
—
—
7
CS-A12ATP5 CU-A12ATP5 / CS-A18ATP5 CU-A18ATPT5 / CS-A24ATP5 CU-A24ATPT5
