Instructions for the fitter

Mounting the wooden panel onto the door and

inserting the machine into cabinets:

In the case where the machine must be shipped for final

installation after the wooden panel has been mounted, we

suggest leaving it in its original packaging. The packaging

was designed to make it possible to mount the wooden

panel onto the machine without removing it completely

(see figures below).

The wooden panel that covers the face of the machine

must not be less than 18 mm in thickness and can be

hinged on either the right or left. For the sake of practicality

when using the machine, we recommend that the panel be

hinged on the same side as the door for the machine itself -

the left.

Tur seite

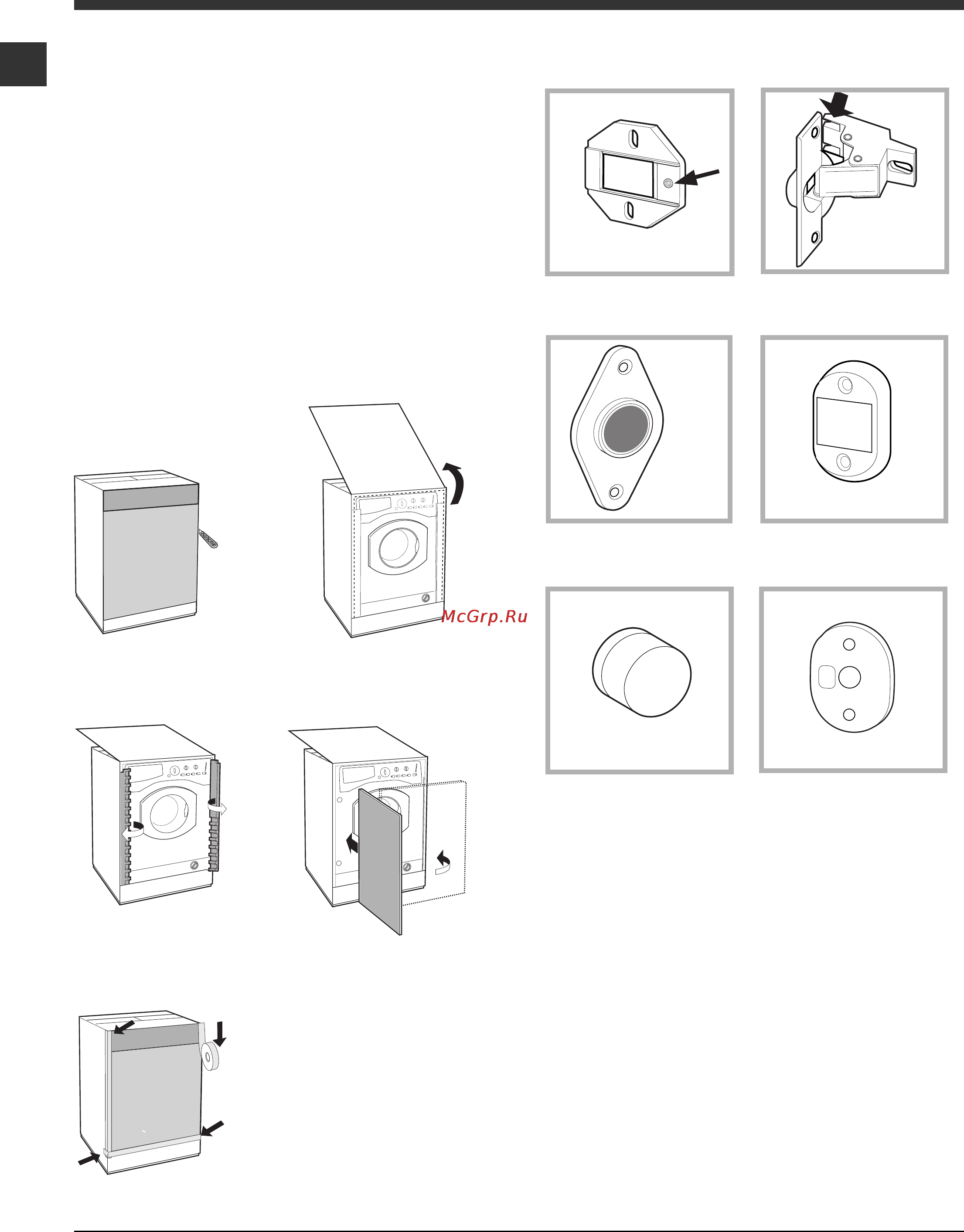

Door Mounting Accessories (Fig. 1-2-3-4-5).

Fig. 1

N° 2 Hinges

N° 1 Magnet N° 1 Magnet plate

N° 1 Rubber plug

N° 2 Hinge Supports

N° 4 Spacers

Fig. 2

Fig. 3 Fig. 4

Fig. 5

Fig. 4/B

- No. 6 type A self-threading screws, l =13 mm.

- No. 2 type B metric, countersunk screws, l =25; for

fastening the magnet plate to the cabinet.

- No. 4 type C metric screws, l =15 mm; for mounting the

hinge supports to the cabinet.

- No. 4 type D metric screws, l =7 mm; for mounting the

hinges on the supports.

Mounting the Parts onto the Face of the Machine.

- Fit the hinge supports to the appliance front panel,

positioning the hole marked with an arrow in fig. 1 so that it

is on the inner side of the front panel. Fit a spacer (fig. 4/B)

between the surfaces using type C screws.

- Fit the magnet plate at the top of the opposite side, using

type B screws to fix two spacers (fig. 4/B) between the

plate and the surface.
