5. DESCRIPTION OF THE WATER HEATER

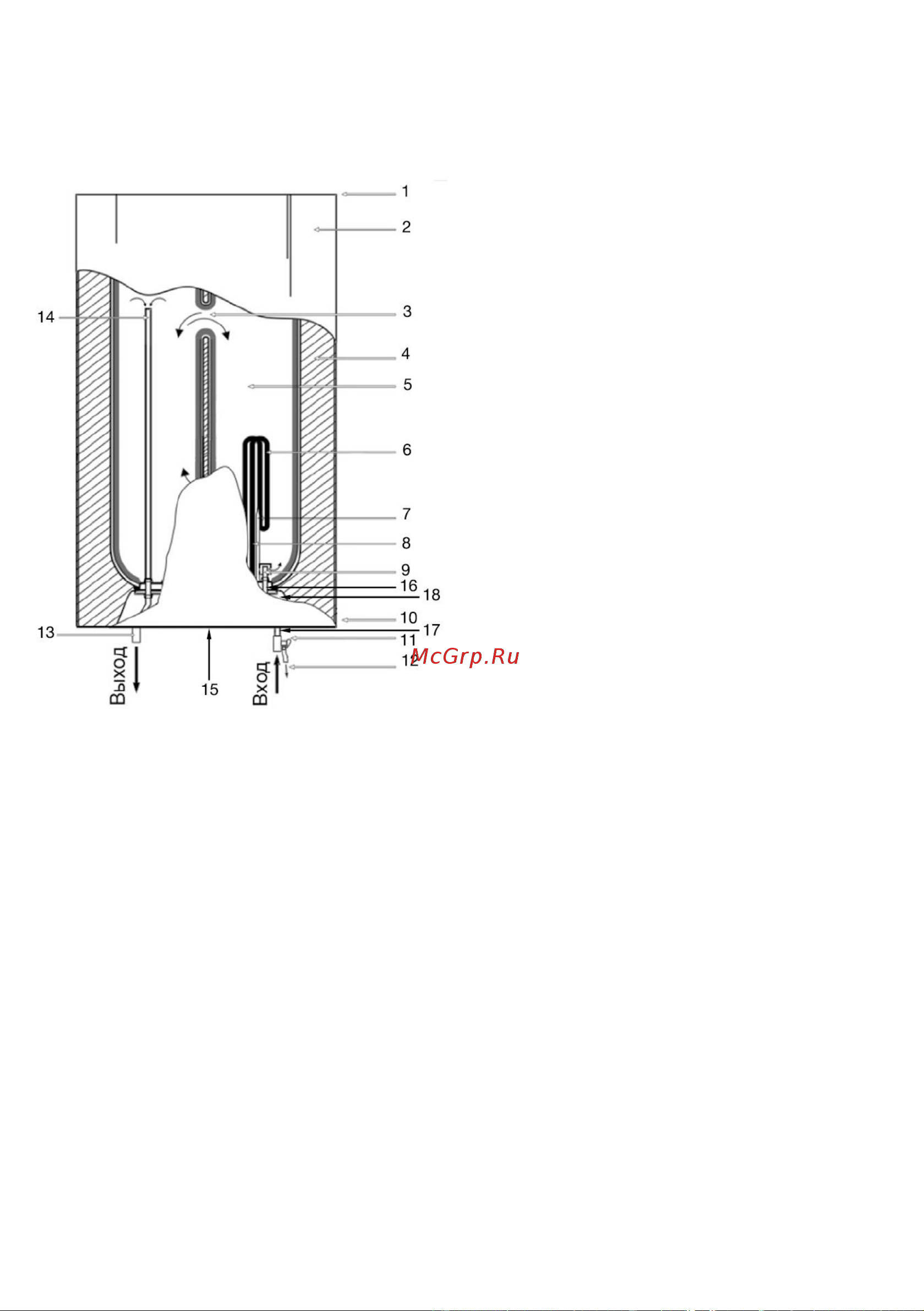

Fig 1*

* The picture is for reference only and

may differ from the actual product

1. Upper combined protective cover

2. External decorative housing

3. Overflow system

4. Thermal insulation layer made of

polyurethane foam

5. Internal tank

6. Heating element

7. Thermostat sensor tube

8. Protective magnesium anode

9. Inlet pipe divider

10. Lower combined protective cover

11. Combined safety valve to protect

against water draining from the water

heater into the water main and to protect

the internal tank from excessive pressure

(mandatory installation on the cold water

supply pipe is required)

12. Emergency discharge of excess water pressure (when the water heater is

operating, water may leak from the pressure relief hole of the safety valve. This is

normal)

13. Hot water outlet pipe

14. The upper part of the hot water intake pipe

15. Control Panel

16. Thermal Switch

17. Inlet pipe

18. Connecting block

6. DELIVERY SET

1. Water heater – 1 pc.

2. Anchor bolt – 2 pcs.

3. Safety relief valve – 1 pc.

4. Manual – 1 pc.

5. Warranty card – 1 pc.

6. Package – 1 pc.

**The design of the thermometer may be changed without prior notice. Depending on

the batch, the thermometer may be missing, which does not affect the performance of

the product.
