5. When product is mounted on a drawer, if it is possible to touch

lower side of product, this section should be separated with a wooden

shelf.

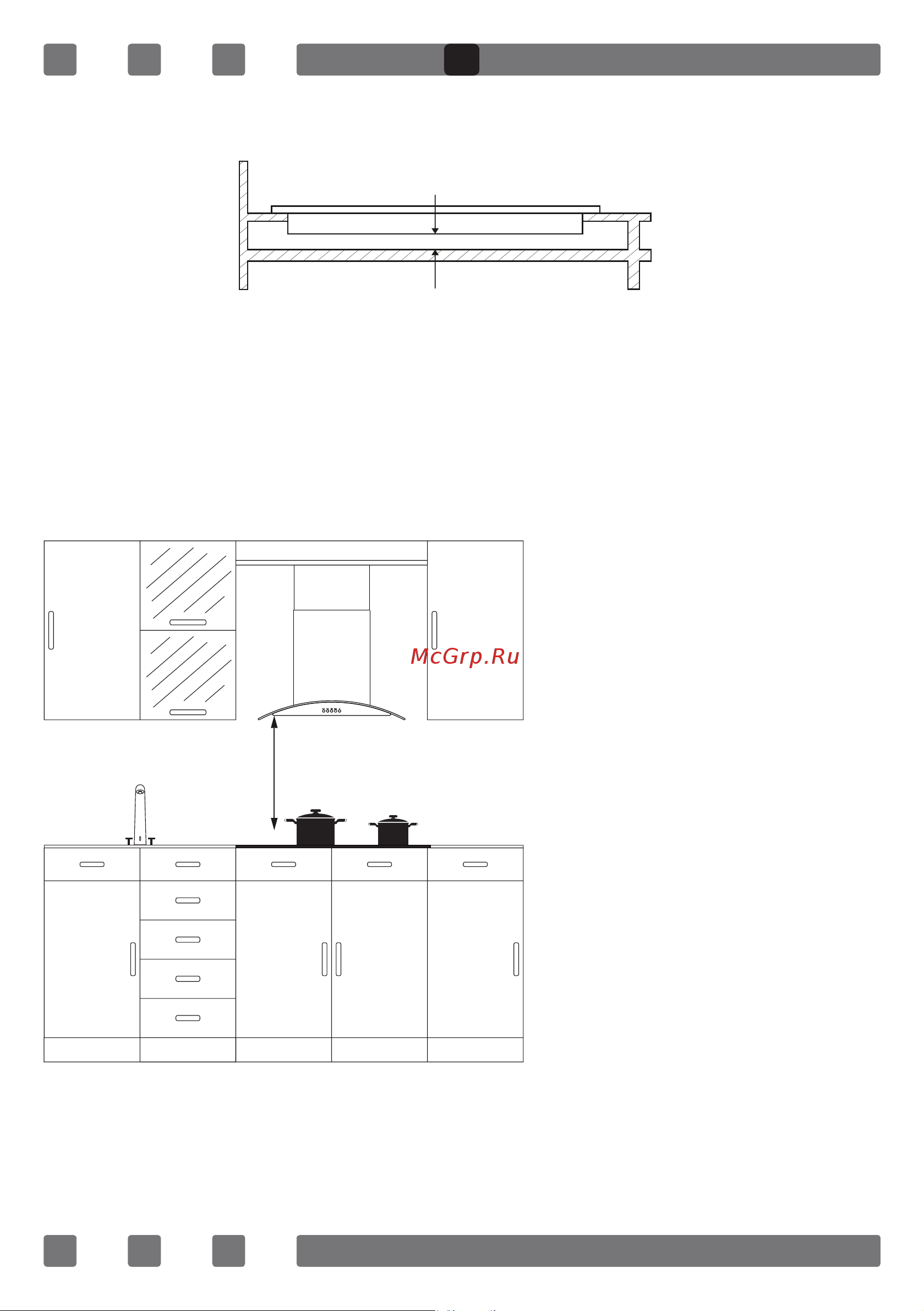

6. While mounting cooktop on a closet, as shown in the gure above, in

order to separate between closet and cooktop, a shelf should be mounted.

If it is mounted on a built-in oven, there is no need to do that.

7. If your cooktop will be mounted next to right or left wall, the

minimum distance between wall and cooktop should be 50 mm.

CORRECT PLACE FOR INSTALLATION

Product is designed in

accordance with the kitch-

en counters supplied from

market. A safe distance

should be left between the

product and kitchen walls

and furniture.

If hood/aspirator will be

installed over your appli-

ance, obey to the recom-

mendation of hood/aspirator

manufacturer for assembly

height. (min. 65 cm)

The gap that cooktop is to

be placed on the counter

should be cut in line with

cooktop installation dimen-

sions.

For installation of the product, the rules specied in local standards

related to electricity should be complied.

min. 30 mm

Figure 2

650 mm min.
