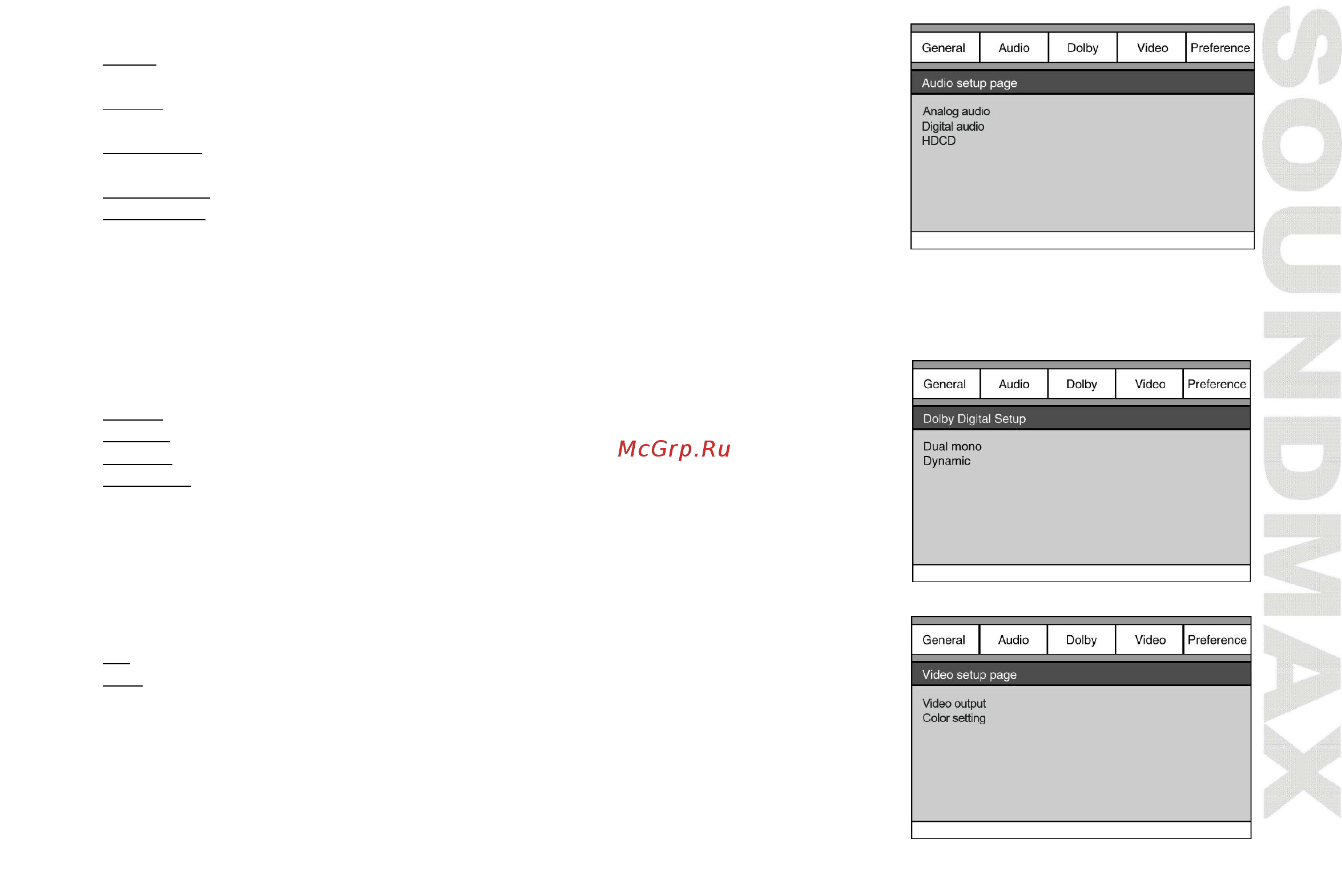

Audio setup

 ANALOG AUDIO: Downmix

LT/RT: The audio out is Left and Right channels format even if the original sound is

5.1CH format.

Stereo: The audio out format is stereo even if the original sound is 5.1CH format.

 DIGITAL AUDIO: Digital output

SPDIF/OFF: no digital signal out (optical or coaxial output off), only analog audio

output.

SPDIF/RAW: no decoding on the amplifier digital signal input.

SPDIF/PCM: the amplifier must be supported by PCM decoding or Dolby digital

decoding function.

LPCM output: this item is available when Digital Output is set to SPDIF/PCM. Select

sample rating of the digital output as 48 kHz or 96 kHz.

 HDCD

You can select the digital filter Off, 1x, 2x.The initial factory setup is Off.

Dolby setup

 DUAL MONO

Stereo: stereo output signal,

L-Mono: left output signal,

R-Mono: right output signal,

Mix-Mono: left and right output average signal.

 DYNAMIC

If watching large dynamic scope movie program at night, by selecting this mode you

can reduce the volume to a very low level and at the same time keep the fine details

sounds. In this case, this doesn’t disturb the family and keep the quality sound.

Video setup

 VIDEO OUTPUT

Off: set video output to CVBS.

RGB: set video output in Red/Green/Blue format when connecting to SCART

terminals.

 COLOR SETTING

You can set sharpness, brightness, contrast, gamma, hue and saturation according to

your preference.
