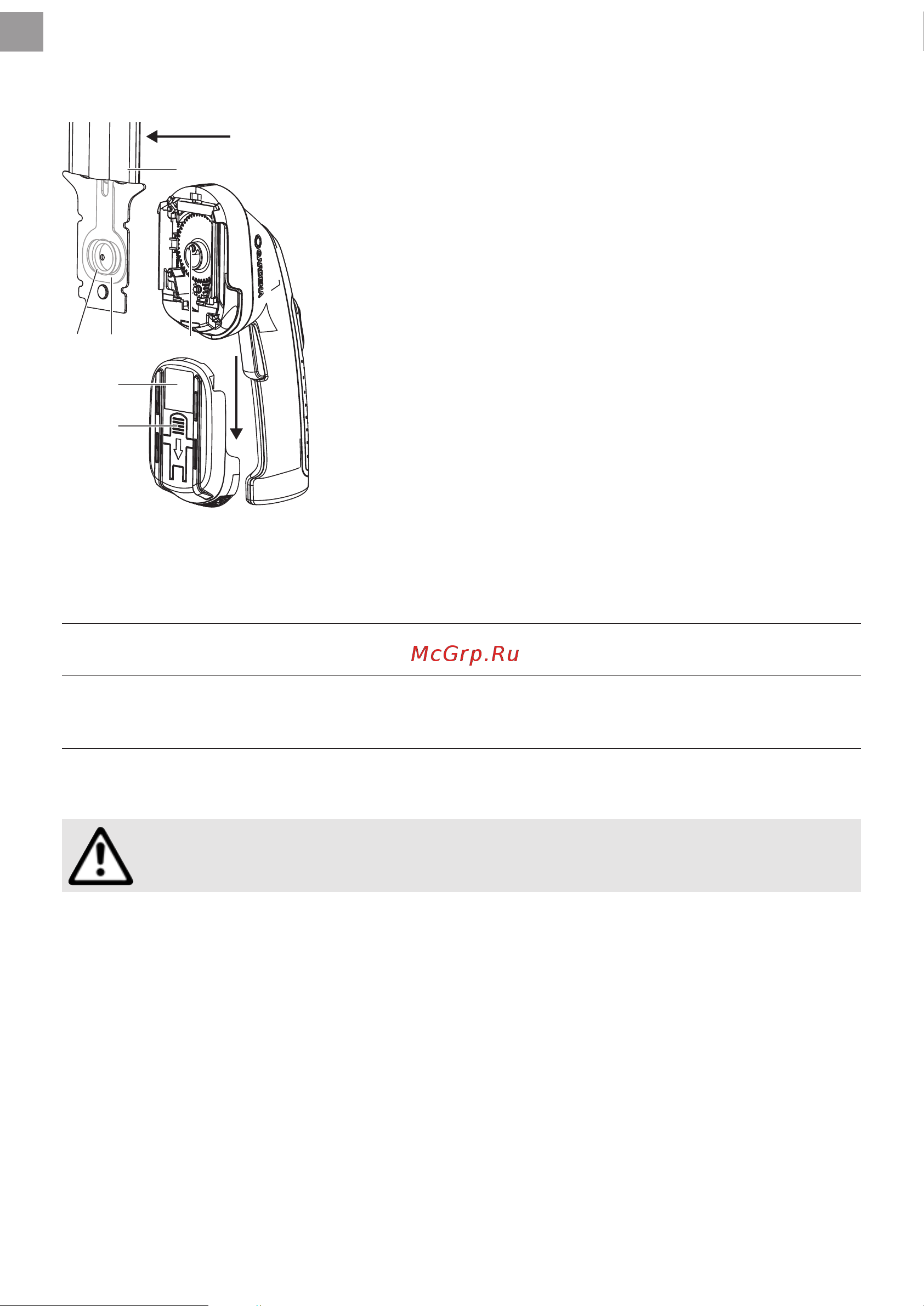

To change the shrub shear

blade:

Only an original GARDENA shrub shear blade is allowed to be

used. A new blade can be ordered by the GARDENA Service.

1. Push the button

and slide the lid

downwards.

2. Remove the blade

3. If necessary clean the transmission chamber and lubricate the

excentric drive

with some acid-free grease (Vaseline).

4. Turn the excentric drive

downwards.

5. Pull the crank

on the back side of the blade

downwards.

6. Slide the ring

in the middle of the crank

7. Place the new blade

on the motor unit in such a way that the

excentric drive

is inserted in the ring

of the crank

8. Slide the lid

upwards until it makes a click.

Troubleshooting table:

Problem Possible Cause Remedy

The jack flashes red

while charging

Allowed battery temperature

was exceeded.

v Let the battery cool down.

Restart the charging.

Runtime too low Blade soiled.

v Clean and lubricate scissor

blade in accordance with the

maintenance instructions.

Product does not cut cleanly Blade blunt or damaged.

v Change the blade

(see To change the blade).

For any other malfunctions please contact the GARDENA service department.

Repairs must only be done by GARDENA service departments or specialist dealers

approved by GARDENA.
