9
VTS reserves the right to introduce changes without prior notice
OMM_HE_SEC_ver 1.7
marking
component
connection
remarks
1
relays
manufacturer
-
2
heaters connectors
manufacturer
-
3
heater
manufacturer
-
4
pressure switch
manufacturer
the pressure switch pipes are connected by the user
5
control connectors
alarm
user
-
6
1 phase power
connectors
user
-
7
circuit breakers
user
for 6x18 power boxes, connect the power cable into the central circuit
breakers
8
control connectors
controls
user
-
Tabela 11 power boxes views descriptions
The presented views of power boxes are intended to illustrate the arrangement of components inside their housing. Please note that
they are only illustrative - when making electrical connections, always follow the wiring diagrams provided in Chapter 5 - Wiring
Diagrams.

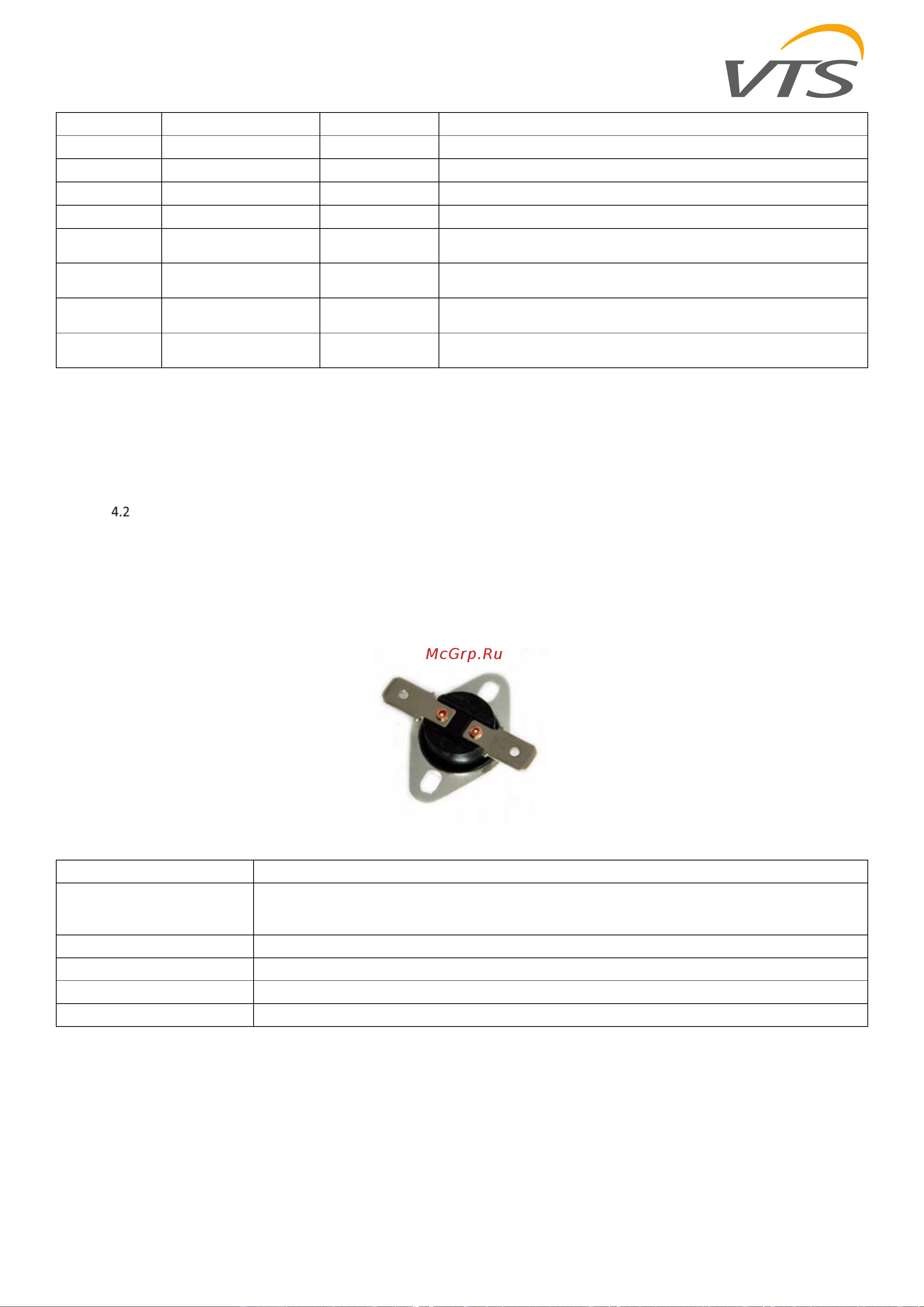

Thermostat
The functionality of the thermostat is based on the properties of the bimetallic element - it opens the contacts of the heater control
circuit at an air temperature near the thermostat of 65 ° C. After an emergency switch-off, the heater switches on automatically when
the air temperature drops by 20 ° C. After intentional or emergency (caused by overheating) power off, the supply fan must run for a
certain time (0.55 min) so that the heaters reach the normal temperature.
The thermostat is an integrated, factory-installed component of each heater slice - it does not require additional assembly or electrical
connection by the installer.
Figure 6 thermostat
function
protection of the heater against overheating (temperature control of the heating elements)
structure
-metal housing
-two screw terminals
-bimetallic element with NC contact function
rated work voltage [V DC]
30
type of output signal
free voltage (switching contact)
activation temperature C]
65±3
temperature hysteresis [°C]
17±3
Table 12 thermostat data
