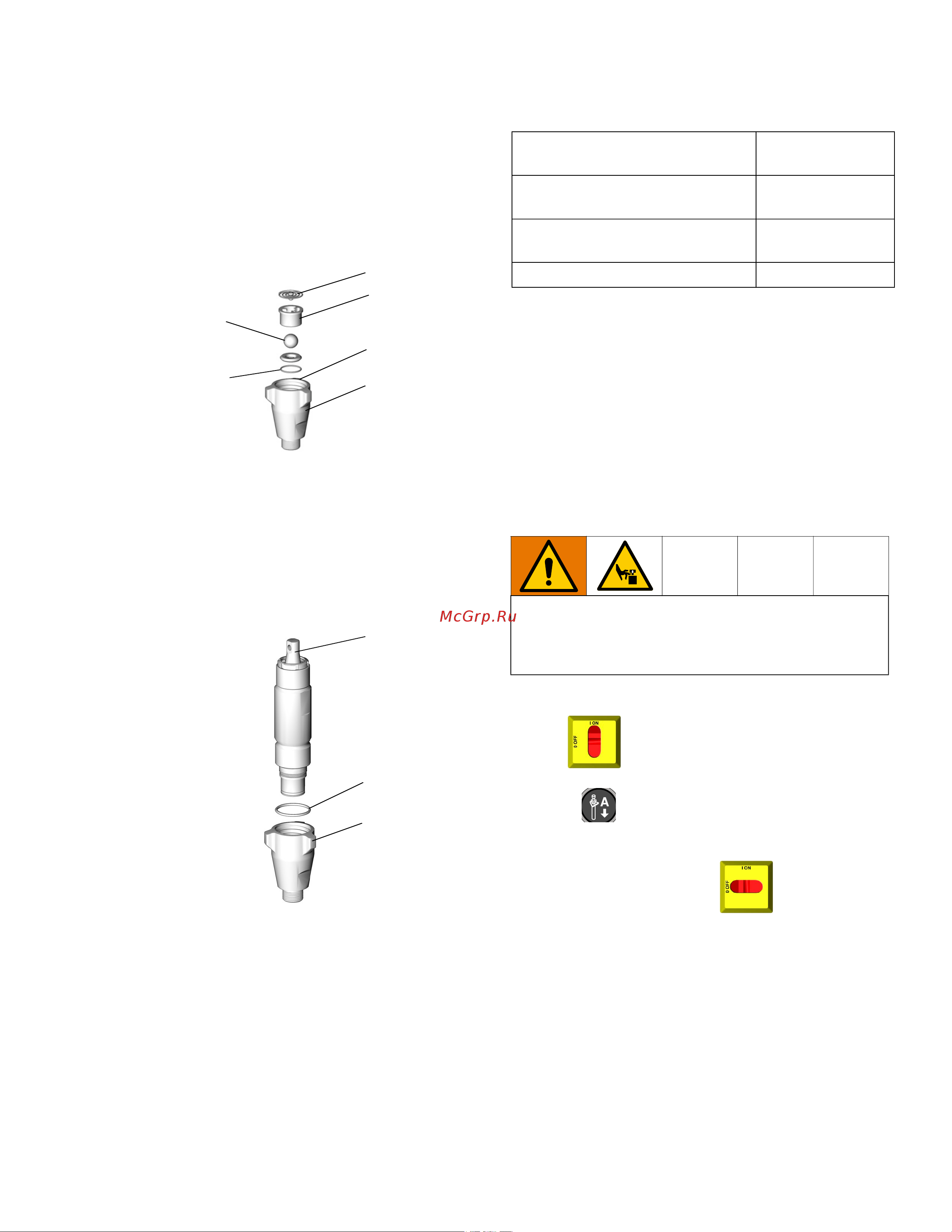

Repair
309577Y 17
9. Reassemble the intake valve with o-ring (10*), seat
(9), and ball (11*). Install ball guide (12).
Models 246832, 18D010, 25P857, 25P858,
25P944, and 245972 only: Install spring (8*) with
screw at top.
NOTE: The seat may be flipped over and used on the
other side. Clean the seat thoroughly. No scratches are
permitted on the sealing edge.
10. Replace the o-ring (15*). Install the intake valve.
Torque the housing (5) as follows, or be sure the
intake valve is snug against the cylinder.
11. Tighten the wet-cup.
NOTE: Do not overtighten the wet-cup. The throat
u-cup (20) is not adjustable.
a. Pump A: Wrap the base of the wet-cup (19)
with a rag and tighten securely with channel
locks.
b. Pump B: Pump B: Torque the packing nut (19)
to 130-150 in-lb (15-17 N•m).
12. Reconnect the power supply. Turn the main power
ON .
13. Press . The motor will run until the pumps are
at bottom of their strokes, then shut off.
14. Turn the main power OFF . Disconnect the
power supply.
TI2665A
5
*11
9
10*
8*
12
TI2687A
15*
19
5
Model Torque
ft-lb (N•m)
246830, 245970, 18D010, and
25P857
65-75 (88-101)
246831, 245971, 262648,
25P858, and 24Y174
75-85 (101-114)
246832, 25P944, and 245972 185-215 (251-291)
Pump rod and connecting rod move during
operation. Moving parts can cause serious injury
such as pinching or amputation. Keep hands and
fingers away from connecting rod during operation.
