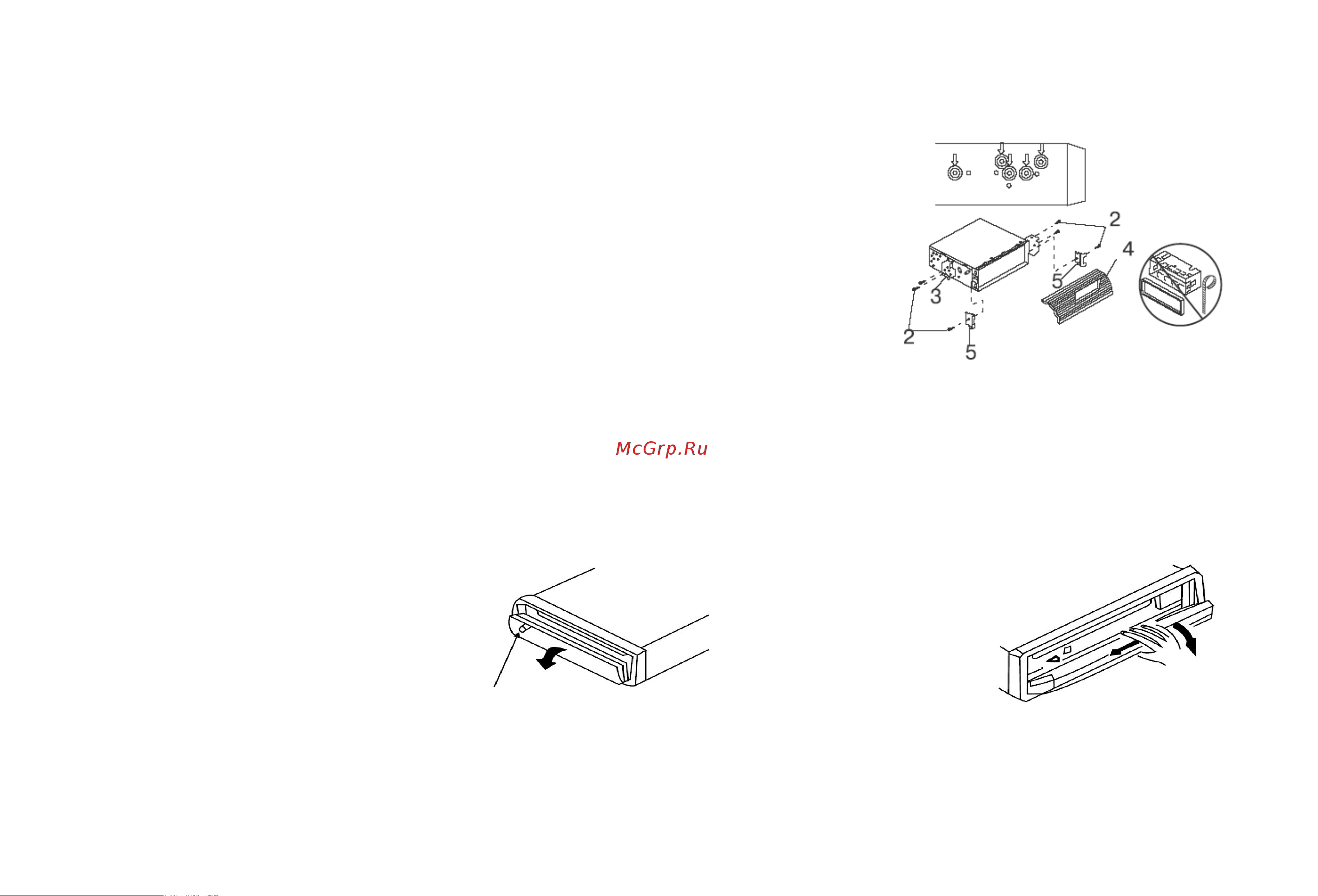

2. DIN REAR-MOUNT (Method B)

For this method, use the screw holes in the lateral sides of the unit. Fix the unit with the help of the factory radio mounting

brackets.

1. Select a position in which the screw holes of the brackets (3) are aligned with the screw

holes in the unit body, and screw in two screws (2) in each side.

2. Screw.

3. Factory radio mounting brackets.

4. Vehicle dashboard.

5. Lock (remove this part).

Note: The outer trim frame and mounting sleeve are not used for method of installation.

Installing the front panel

Insert the left side of the panel then, and insert the right side. Close the panel.

Press OPEN button to detach the panel. When the front panel is in horizontal position hold and slide the panel to left and then

pull it out.

OPEN
