Din rear-mount (method 2)

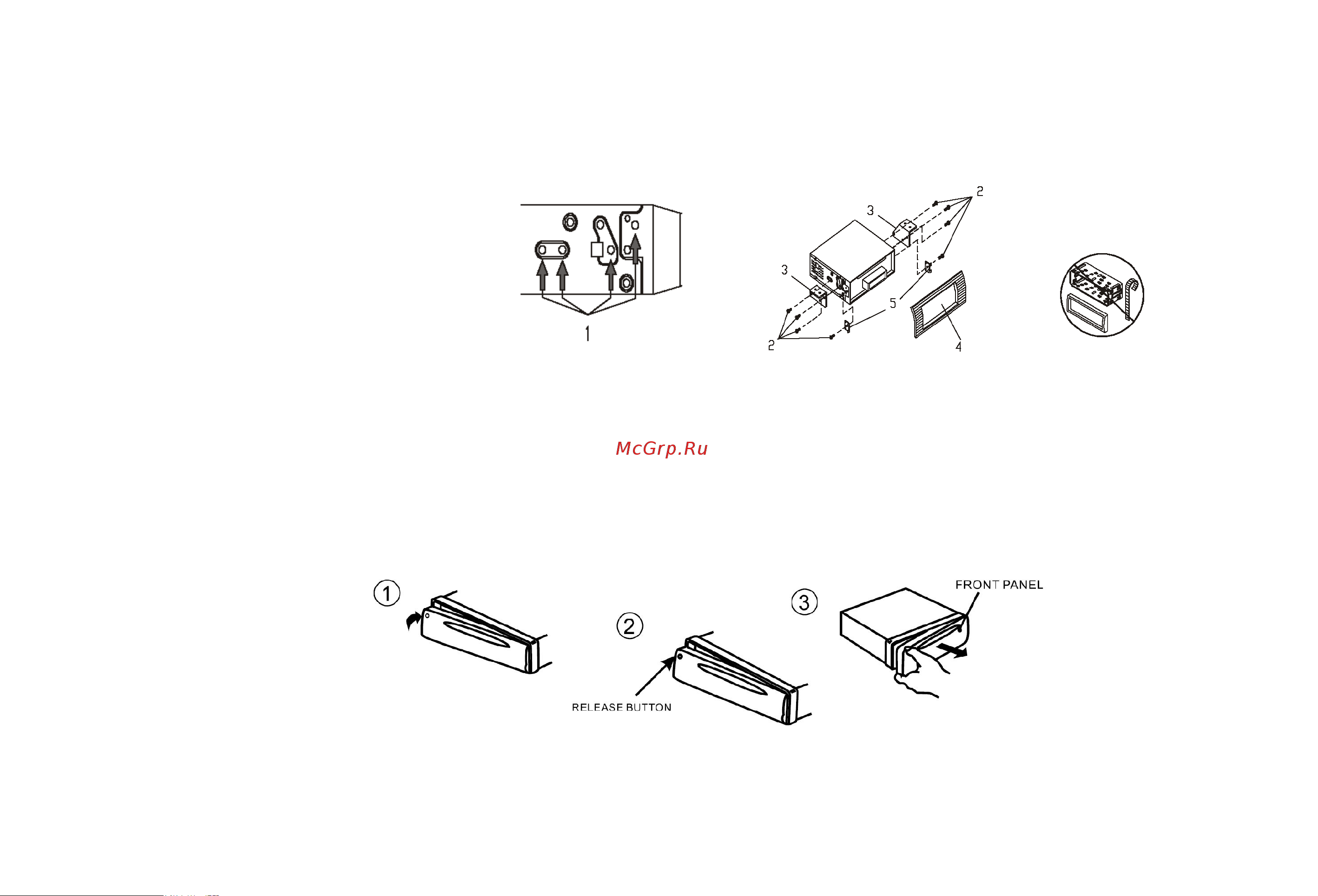

Installation using the screw holes at both sides of the unit.

1. Select a position where the screw holes of the main unit are fitted for aligned, and tighten the screws at 2 positions at

each sides. Use either truss screws (5 x 8 mm) or flush surface screws (4 x 8 mm), depending on the shape of the screw

holes in the bracket.

2. Screw.

3. Factory radio mounting bracket.

4. Dashboard or Console.

5. Hook (Remove this parts).

Note: The mounting box, outer trim ring, and the half-sleeve are not used for this method of installation.

Installing the front panel

To install the front panel, insert the panel into the housing and make sure the panel is properly installed, otherwise,

abnormalities may occur on the display or some buttons will not function properly.
