1. Install the sleeve into the dashboard; ensure it is installed with the correct side and there

are no obstacles (wires, dashboard elements, etc) for the unit installation.

2. After installing the sleeve into the dashboard, bend tabs fitting to the size of the

dashboard to fix the sleeve in place.

3. Use the metal strap to fix the rear side of the unit. Determine a place for fixing and install

the strap as shown in the picture. You can bend the strap to the needed angle with your

hands.

4. Make the necessary wire connections. Ensure the connections are correct.

5. Install the unit into the sleeve until the side locks are fixed.

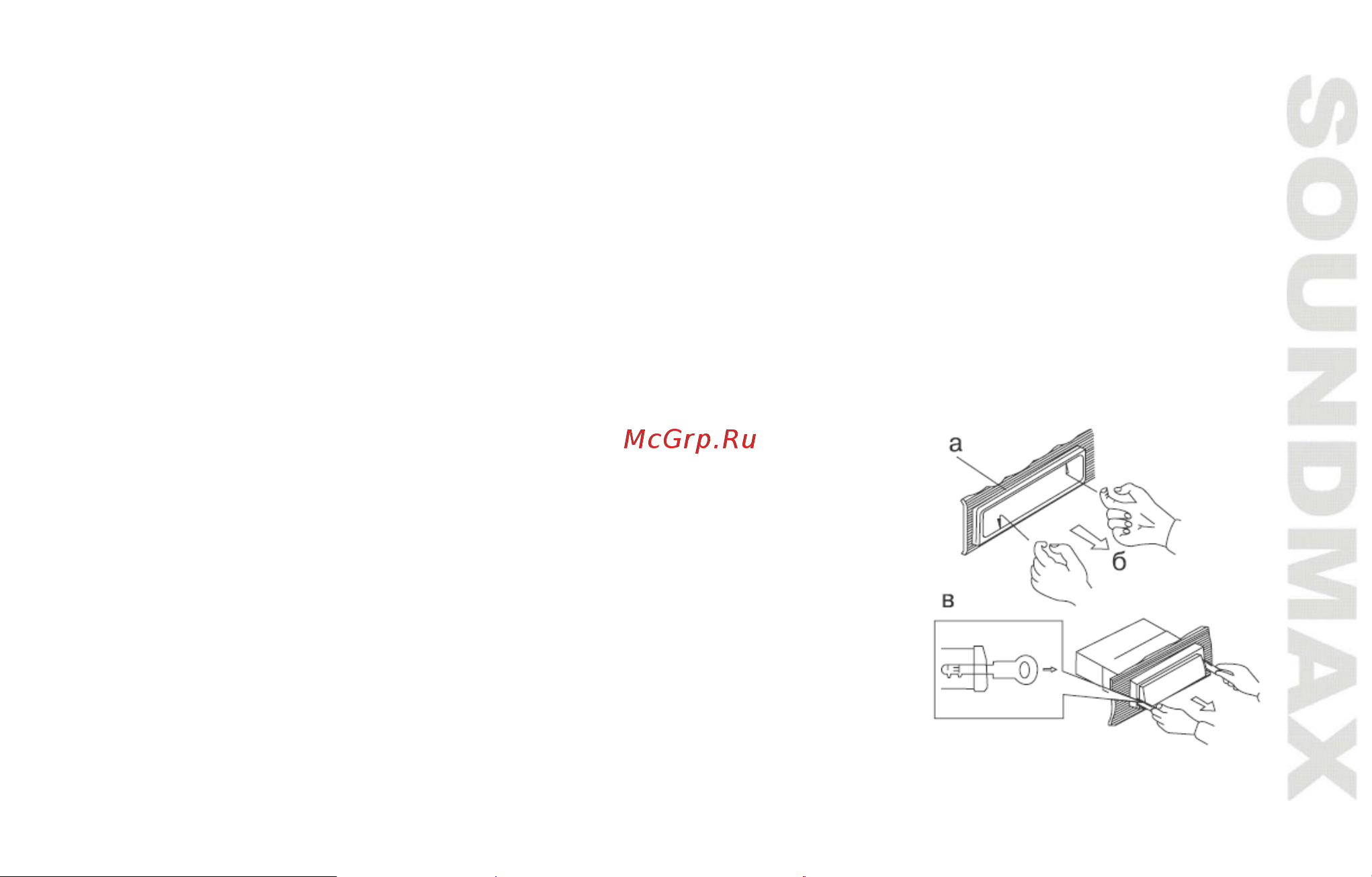

Dismantling the unit

а – Trim frame

б – Frame uninstall direction

в – Release key insertion

1. Switch off the unit.

2. Insert your fingers into the groove in the front side of the

trim frame (apply some effort to detach the frame). Pull

the frame to detach it.

3. Insert the supplied release keys into the both sides of the

unit body to click, as shown in the picture. To extract the

unit from the dashboard, pull the release keys or the unit

body to pull it out. Before detaching the unit, ensure it is not

fixed with the metal strap.
