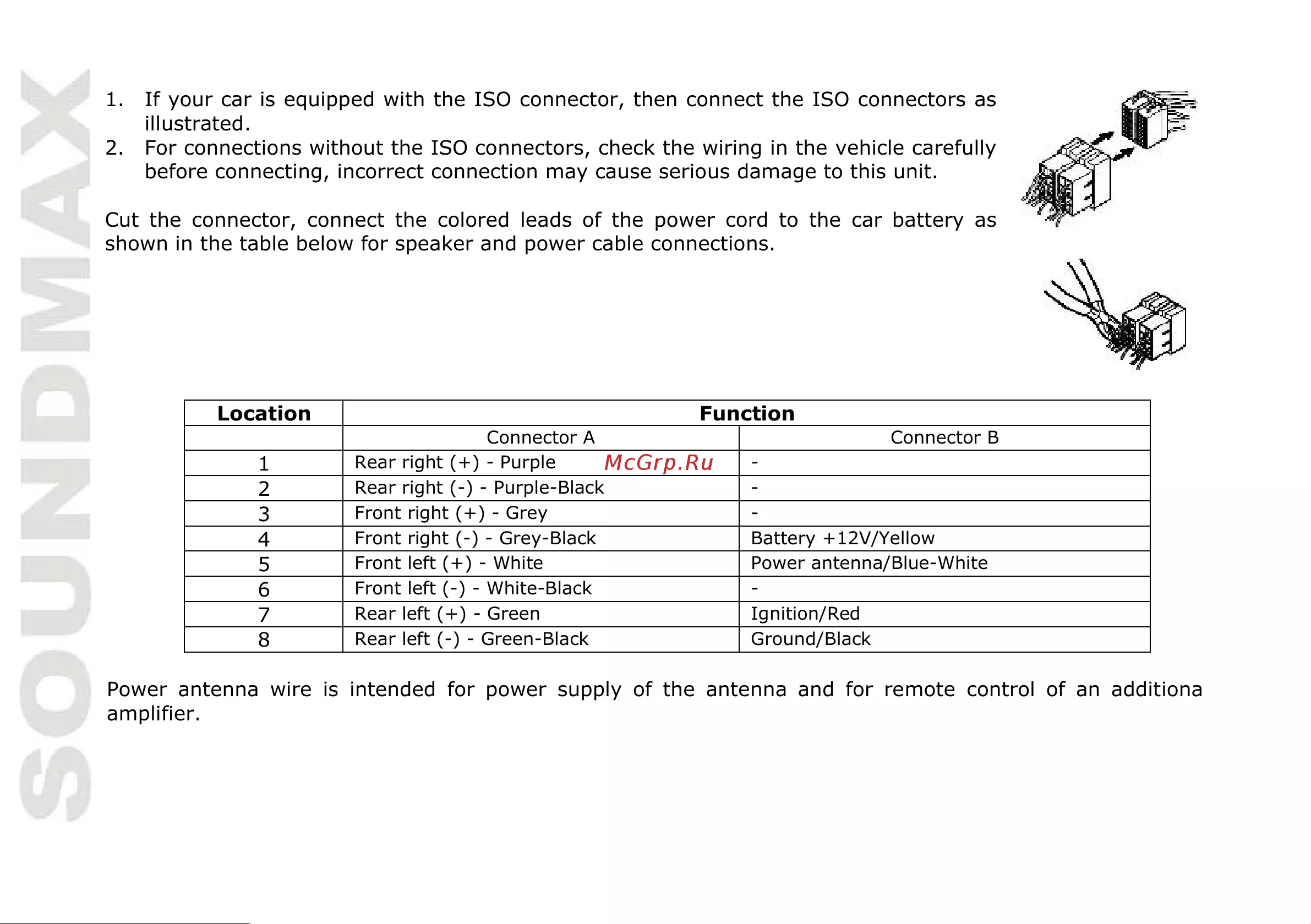

Using the ISO Connector

1. If your car is equipped with the ISO connector, then connect the ISO connectors as

illustrated.

2. For connections without the ISO connectors, check the wiring in the vehicle carefully

before connecting, incorrect connection may cause serious damage to this unit.

Cut the connector, connect the colored leads of the power cord to the car battery as

shown in the table below for speaker and power cable connections.

Location Function

Connector A Connector B

Rear right (+)  Purple 

Rear right ()  PurpleBlack 

Front right (+)  Grey 

Front right ()  GreyBlack Battery +12V/Yellow

Front left (+)  White Power antenna/BlueWhite

Front left ()  WhiteBlack 

Rear left (+)  Green Ignition/Red

Rear left ()  GreenBlack Ground/Black

Power antenna wire is intended for power supply of the antenna and for remote control of an additional

amplifier.
