Using the ISO Connector

1. If your car is equipped with the ISO connector, then connect the ISO connectors

as illustrated.

2. For connections without the ISO connectors, check the wiring in the vehicle

carefully before connecting, incorrect connection may cause serious damage to

this unit.

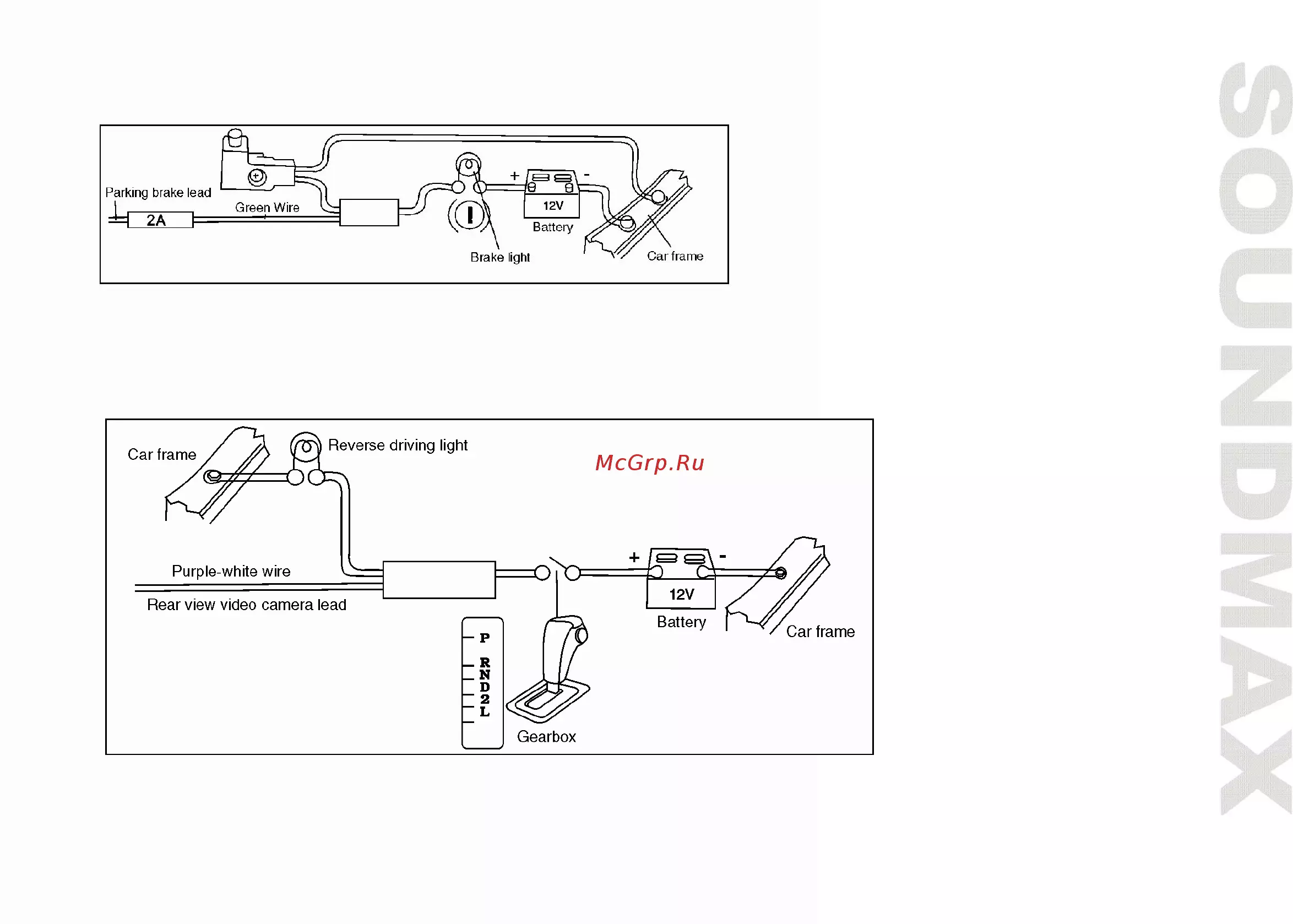

Cut the connector, connect the colored leads of the power cord to the car battery as

shown in the colour code table below for speaker and power cable connections.

Location FUNCTION

Connector A Connector B

1 Rear right speaker (+)/Purple

2 Rear right speaker (-)/Purple-Black

3 Front right speaker (+)/Grey

4 Front right speaker (-)/Grey-Black

Battery 12V (+)/Yellow

5 Front left speaker (+)/White

Antenna power/Blue-White

6 Front left speaker (-)/White-Black

Panel light/Orange-White

7 Rear left speaker (+)/Green

ACC+/Red

8 Rear left speaker (-)/Green-Black

Ground/Black

Power antenna wire is intended for power supply of the antenna and for remote control of an additional

amplifier.
