4. Rear left + speaker (green)

5. Parking wire (brown)

6. Front left - speaker (white/black)

7. -

8. Front left + speaker (white)

9. Acc (red)/Fuse 1 A

10. Front right + speaker (grey)

11. Auto antenna (blue)

12. Front right - speaker (grey/black)

13. Ground (black)

14. Rear right + speaker (purple)

15. Battery (yellow)/Fuse 10 A

16. Rear right - speaker (purple/black)

Power antenna wire is intended for power supply of the antenna and for remote control of an additional

amplifier.

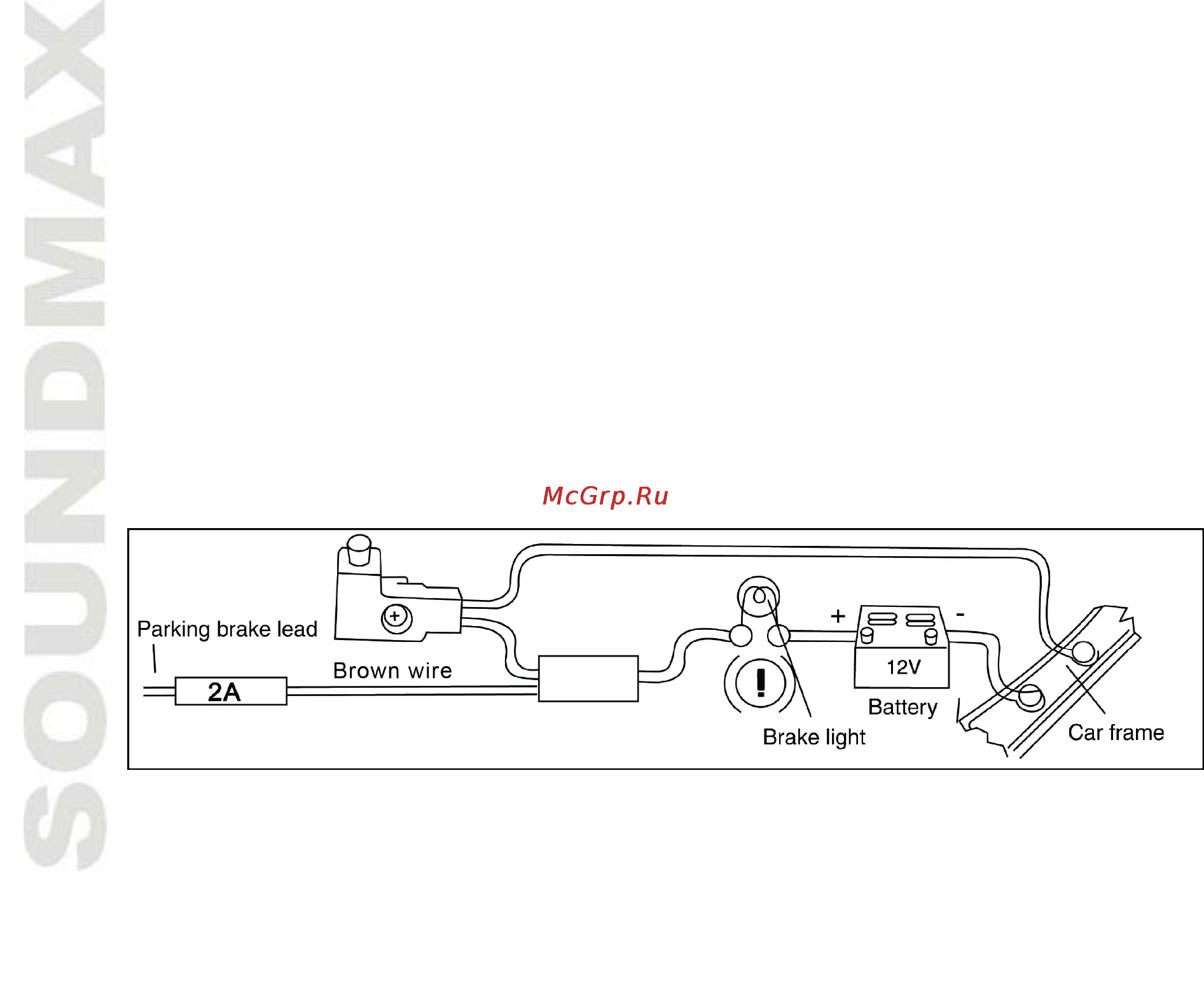

Parking wire connection

If Parking cable is connected to hand brake switch, the video display of the TFT monitor will be controlled by

driving status. When the car is moving ahead, if the video disc is played, the screen shows warning and blank

screen. The warning screen will prevent the driver from watching images.
