Electric air conditioner

portable type

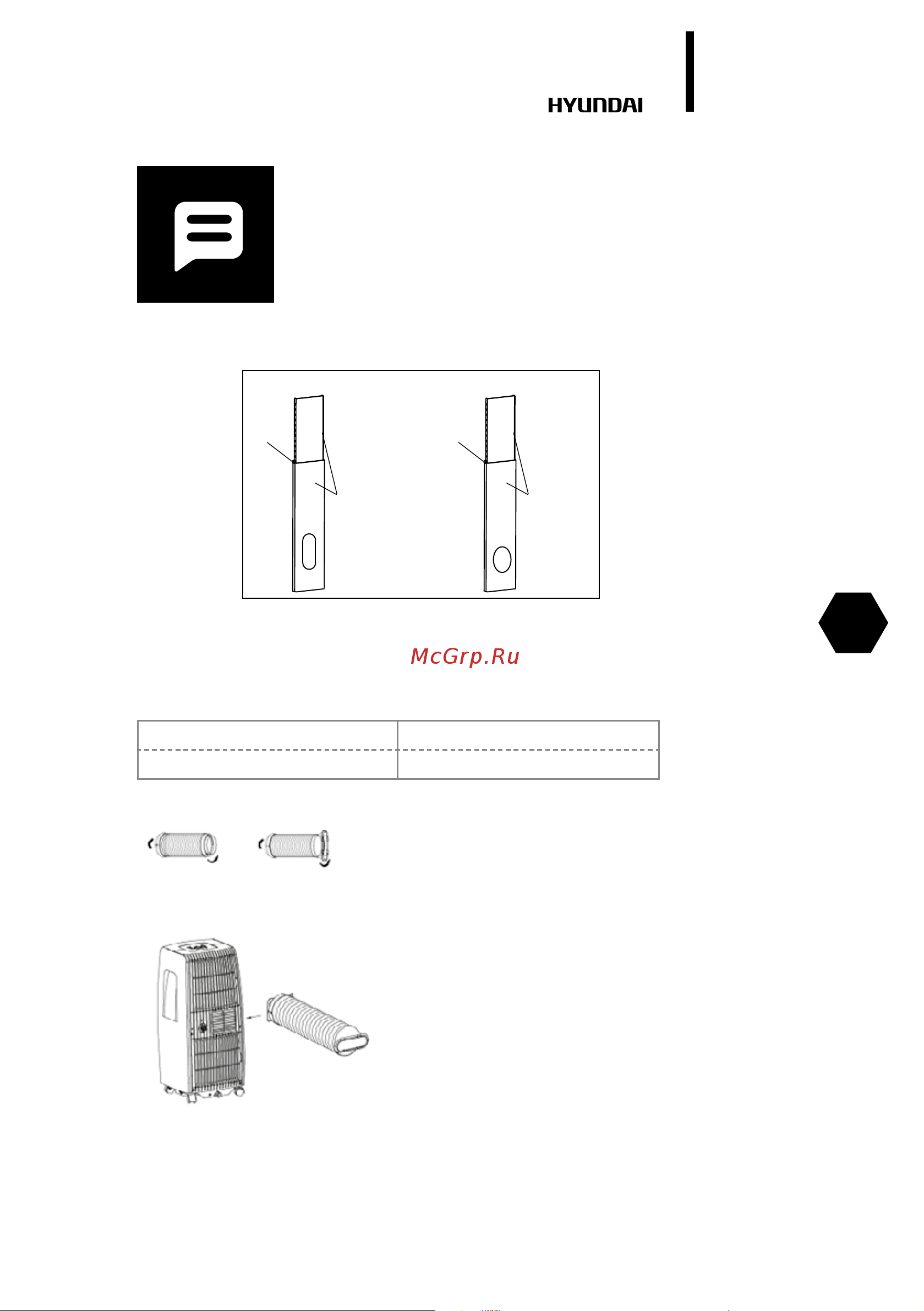

Fig. 2

NOTE:

If the window opening is less than the mentioned

minimum length of the window slider kit, cut that one

with a hole in it short to t for the window opening. Do

never cut out the hole in window slider kit.

bolt

Window slider kit

bolt

Window

slider kit

Fig.7a

Exhaust hose installation

The exhaust hose and adaptor must be installed or removed

in accordance with the usage mode.:

• COOL, AUTO mode • Install

• FAN,DEHUMIDIIFY mode • Remove

1. Install the window Exhaust adaptor B onto the

exhaust hose as shown in Fig.3. or Fig.4. Refer to

the previous pages for window kit installation.

2. Push the Exhaust hose into the airoutlet opening

along the the arrow direction (See Fig.5).

The exhaust hose can be installed into the wall

(Not applicable to the units without adaptor A, ex-

pansion plugs and wooden screws of Accessories ).

1. Prepare a hole in the wall. Install the wall

Exhaust adaptor A onto the wall(outside) by using 4

expansion plugs and wooden screws, be sure to x

thoroughly. (See Fig.6)

2. Attach the Exhaust hose installed adaptor

B(round mouth) to wall Exhaust adaptor A.

Note:

Cover the hole using the adaptor cap when not in

use.

Fig. 3 Fig. 4

Fig. 3
