 Before operating your new appliance please read

this instruction booklet carefully. It contains important

information concerning the safe installation and

operation of the appliance.

 Please keep these operating instructions for future

reference. Make sure that the instructions are kept with

the appliance if it is sold, given away or moved.

 The appliance must be installed by a qualified

professional according to the instructions provided.

 Any necessary adjustment or maintenance must be

performed after the appliance has been disconnected

from the electricity supply.

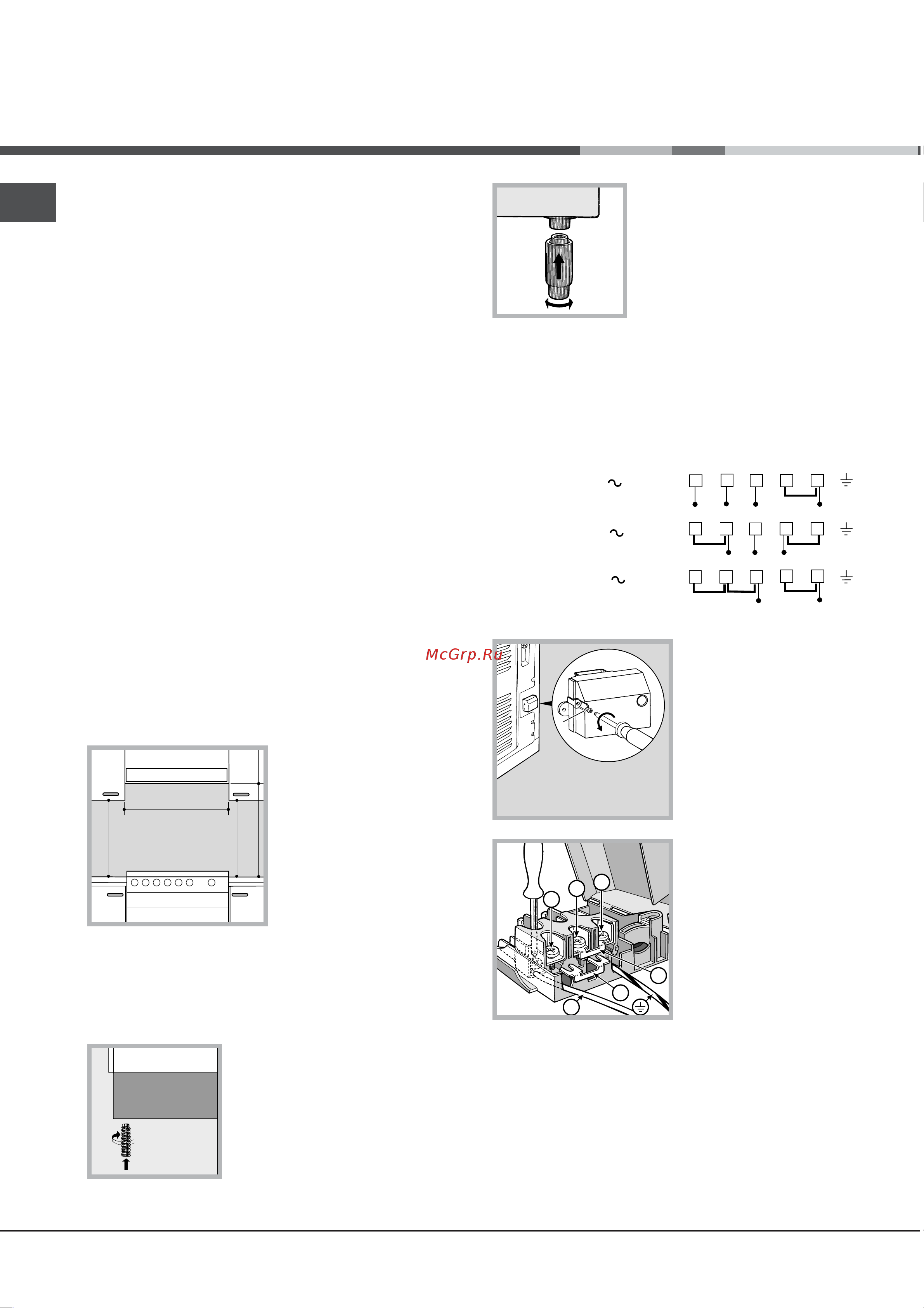

Positioning and levelling

 It is possible to install the appliance alongside

cupboards whose height does not exceed that of the

hob surface.

 Make sure that the wall in contact with the back of

the appliance is made from a non-flammable, heat-

resistant material (T 90°C).

To install the appliance correctly:

 Place it in the kitchen, dining room or the bed-sit

(not in the bathroom).

 If the top of the hob is higher than the cupboards,

the appliance must be installed at least 200 mm

away from them.

 If the cooker is

installed underneath a wall

cabinet, there must be a

minimum distance of 420

mm between this cabinet

and the top of the hob.

This distance should be

increased to 700 mm if

the wall cabinets are

flammable (see figure).

 Do not position blinds behind the cooker or less

than 200 mm away from its sides.

 Any hoods must be installed according to the

instructions listed in the relevant operating manual.

Levelling

If it is necessary to level the

appliance, screw the adjustable

feet* into the places provided on

each corner of the base of the

cooker (see figure).

The legs* provided with the

appliance fit into the slots on the

underside of the base of the

cooker.

Electrical connection

Fitting the power supply cable

The cable should be suited to the type of electrical

connection used, according to the following

connection diagram:

1 2

12345

400 3N

H05RR-F 5x2.5 CEI-UNEL 35363

400V 2N

H05RR-F 4x2.5 CEI-UNEL 35363

230V 1N

H07RN-F 3x4 CEI-UNEL 35364

To install the power supply cable correctly:

1. Loosen the screw V in

the terminal board and

pull the cover to open it

(see figure).

2. Position the

connection support A

(see figure) according

to the connection

diagram shown above.

The terminal board is

designed for single-

phase 230 V

connection: terminals 1,

2 and 3 are connected

to each other; jumper 4-5 is located in the lower area

of the terminal board.

3. Position wires N and

$ according to the diagram

(see figure) and perform the connection by tightening

the terminal board screws as much as possible.

4. Position the remaining wires on terminals 1-2-3 and

tighten the screws.

5. Fix the power supply cable in place by fastening

the cable clamp screw.

HOOD

420

Min.

min.

650

mm. with hood

min.

700

mm. without hood

mm.

600

Min. mm.

420

Min. mm.

Installation
