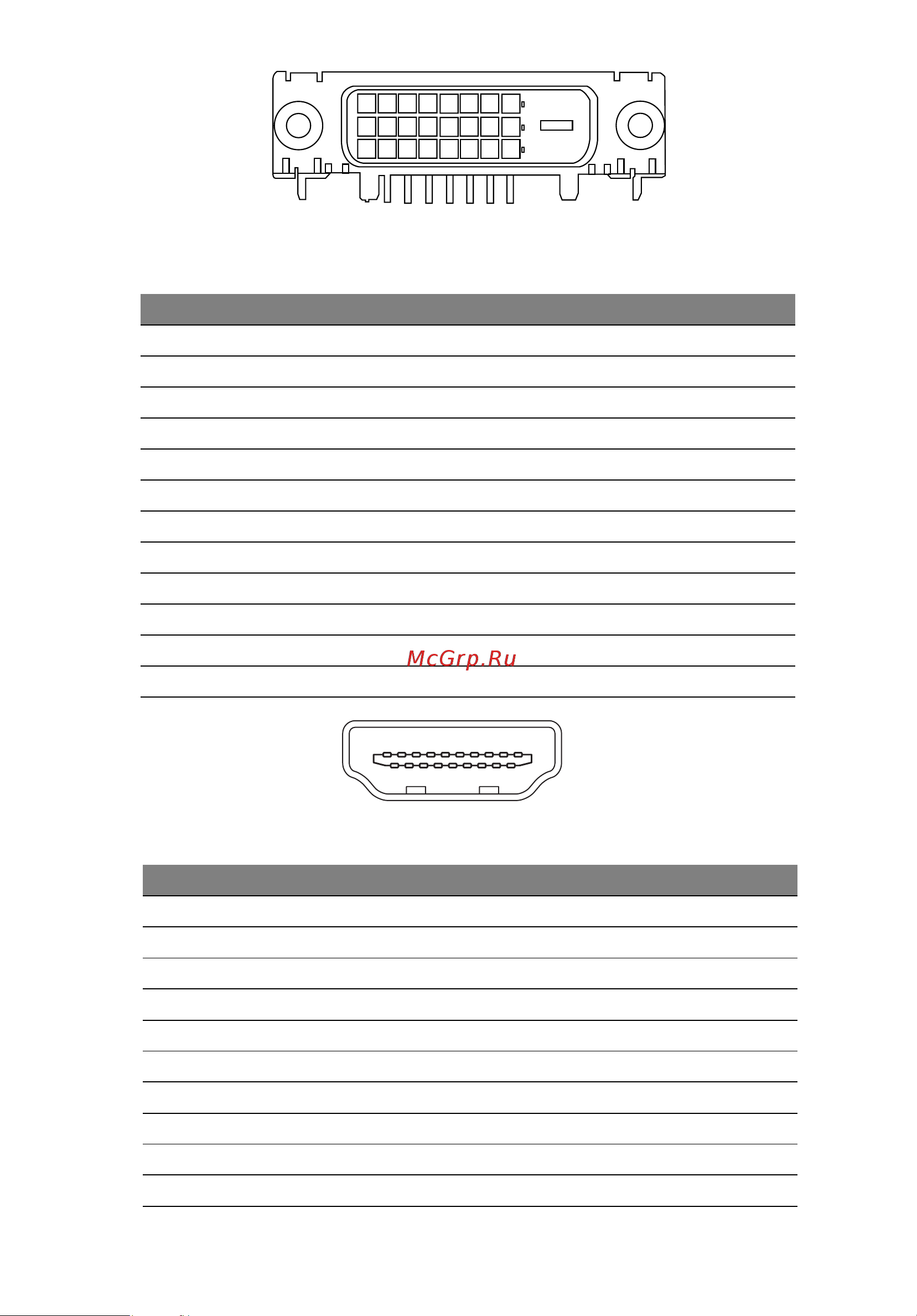

24-pin color display signal cable*

PIN No. Description PIN No. Description

1 TMDS data 2- 13 NC

2 TMDS data 2+ 14 +5 V power

3 TMDS data 2/4 shield 15 GND (return for +5 V hsync.vsync)

4 NC 16 Hot-plug detection

5NC 17TMDS data 0-

6DDC clock 18TMDS data 0+

7 DDC data 19 TMDS data 0/5 shield

8NC 20NC

9 TMDS data 1- 21 NC

10 TMDS data 1+ 22 TMDS clock shield

11 TMDS data 1/3 shield 23 TMDS clock+

12 NC 24 DDC TMDS clock-

only for certain models

PIN No. Description PIN No. Description

1 TMDS Data2+ 2 TMDS Data2 Shield

3 TMDS Data2– 4 TMDS Data1+

5 6 TMDS Data1–

7 TMDS Data0+ 8 TMDS Data0 Shield

9 TMDS Data0– 10 TMDS Clock+

11 TMDS Clock Shield 12 TMDS Clock–

13 CEC 14 Reserved (N.C. on device)

15 SCL 16 SDA

17 DDC/CEC Ground 18 +5V Power

19 Hot Plug Detect

11 9 7 5 3 1

10 8 462

19171513

18161412

TMDS Data1 Shield

19-pin Color Display Signal cable*
