CONFIGURING HOST AUDIO SOFTWARE
57

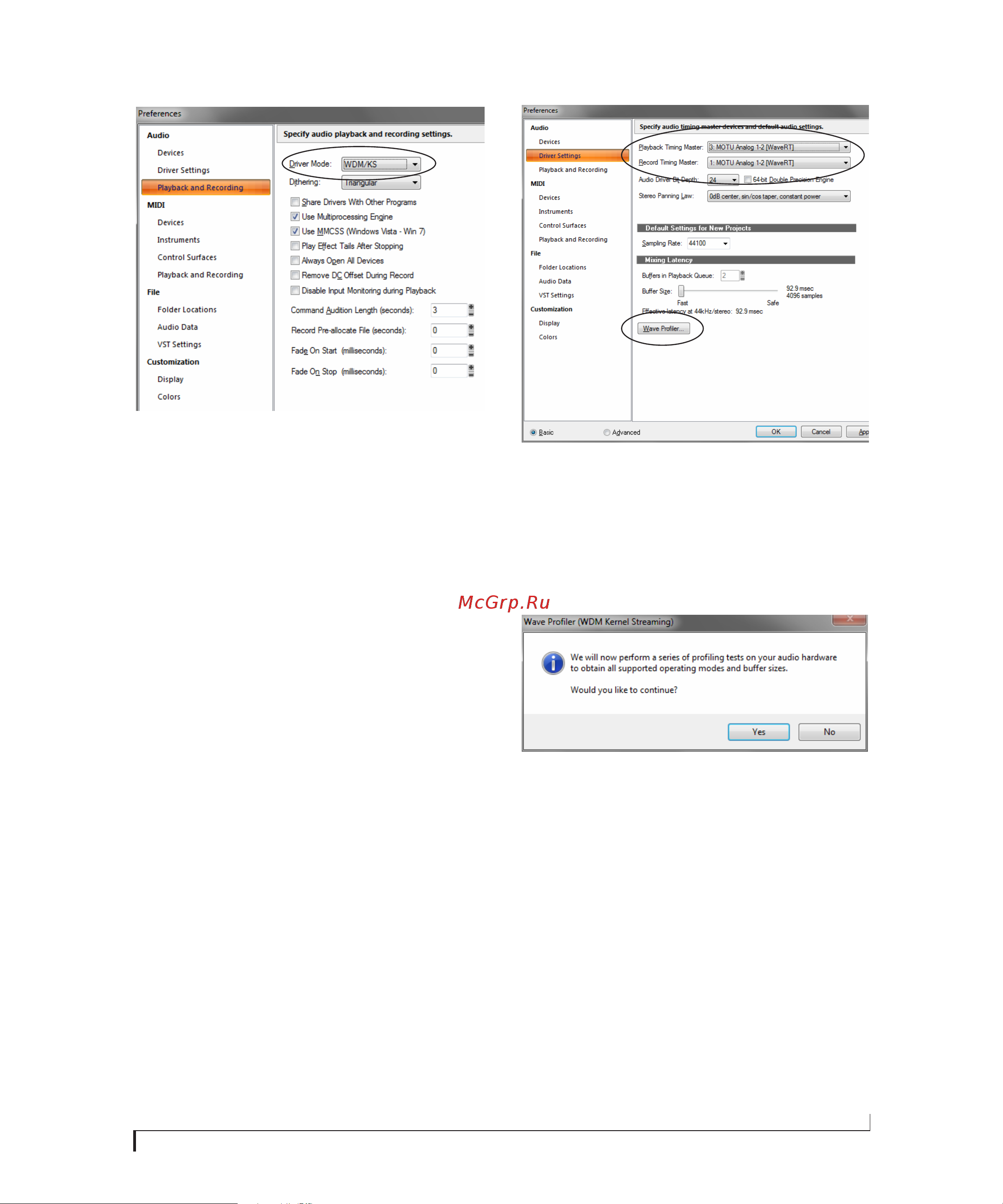

Figure 7-9: Enabling the MOTU WDM driver in SONAR.
4 Next, in the Audio preferences section, choose
Devices.
5 Check the 828x inputs and outputs that you
wish to use and uncheck the ones you don’t, as
shown in Figure 7-8 on page 56.
Other audio settings in SONAR
There are a few other settings in SONAR that
impact 828x operation:
1 In the Audio preferences section, choose Driver
Settings.
2 Choose a 828x input and output for recording
and playback timing as shown below in
Figure 7-10. It doesn’t matter which input or
output you choose.
Figure 7-10: Make sure you have chosen a 828x input and output for
the playback and recording timing master settings.
3 Additionally, if you are using the MOTU WDM
driver, click the Wave Profiler button and run the
Wave Profiler. This process chooses the optimum
settings for the 828x hardware.
Figure 7-11: Running the Wave Profiler in Cakewalk’s SONAR.
Sound Forge
In Sony Sound Forge, go to the Preferences
window, click the Audio tab, and then choose
MOTU Audio from the Audio device type menu.
Other audio software
For other audio applications, the procedure is
similar to that shown above. Consult your owner’s
manual for further information.
