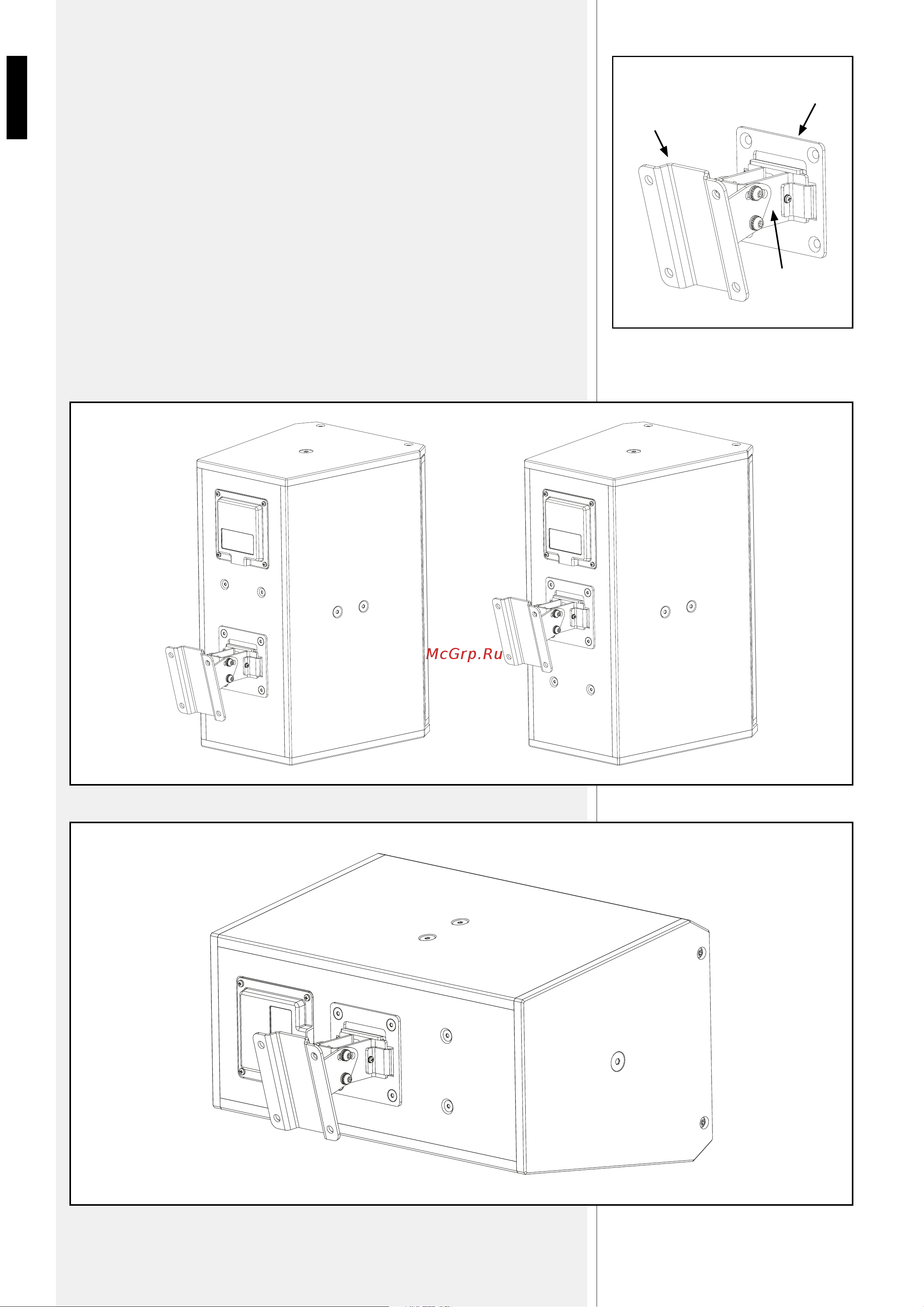

The MOVING PART of the accessory must be ﬁxed directly on the back of the speaker

with 4 M6 ﬂat head screws (already placed on the speaker). On the COMPACT M 08

model the accessory can be ﬁxed in two different positions (as shown in the picture

below).

It is also possible the loudspeaker horizontal mounting (see the ﬁgure below).

3. Then, place the speakers on the support braket and tighten the two lateral bolts.

c) MOUNTING WITH A SWIVEL BRACKET

Necessary optional accessory: WALL MOUNT BRACKET SWM-BR COMPACT M

(

for COMPACT M 05, M 06 and M 08 models)

1. Install the ﬁxed part of the accessory with 4 M8 wall plugs through the 4 holes (the

central area of the ﬁxed part can be useful to let pass the connecting cable from the wall

outlet).

2. Fix the SUPPORT BRACKET to the FIXED PART with two M10 bolt included in

dotazione and choose the right inclination angle (0°, 15°, 30°, 45°).

MOVING PART

FIXED PART

SUPPORT

BRACKET
