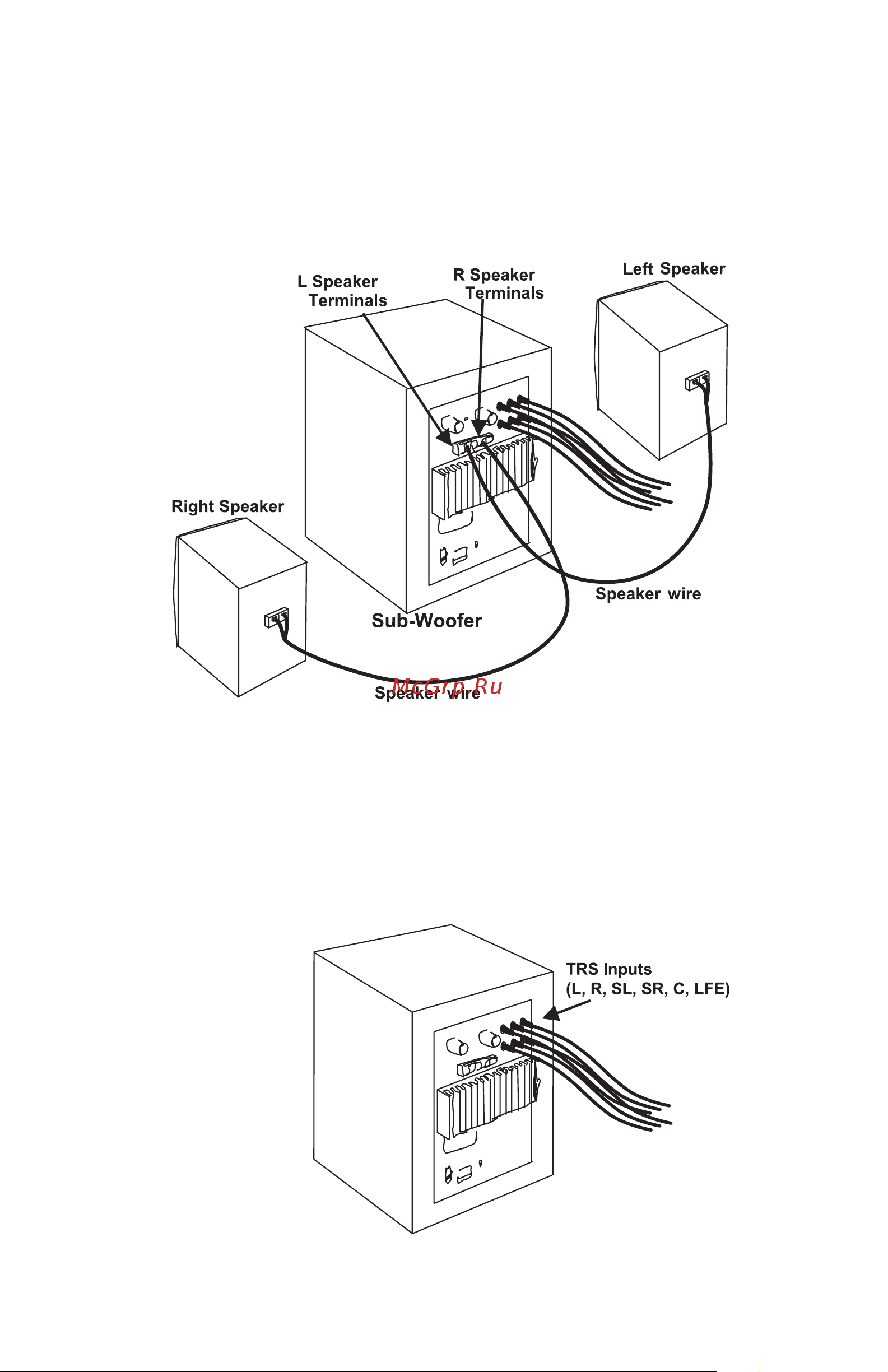

Speaker Wire Connections
Use speaker wires included in LX5-2.1 package to connect the Left and Right
Speaker output terminals, found on the Subwoofer’s rear panel, to the Left and
Right Speakers.
TRS Balanced/Unbalanced Connections
Assure that the LX4’s power switch is turned to the off position and that it’s
Master Volume is turned all the way down. Connect the male end of a TRS
balanced or TS unbalanced cable to the TRS inputs on the Sub-woofer’s rear panel.
7
