Makita EA3203S-40 [18/41] For all models chain brake

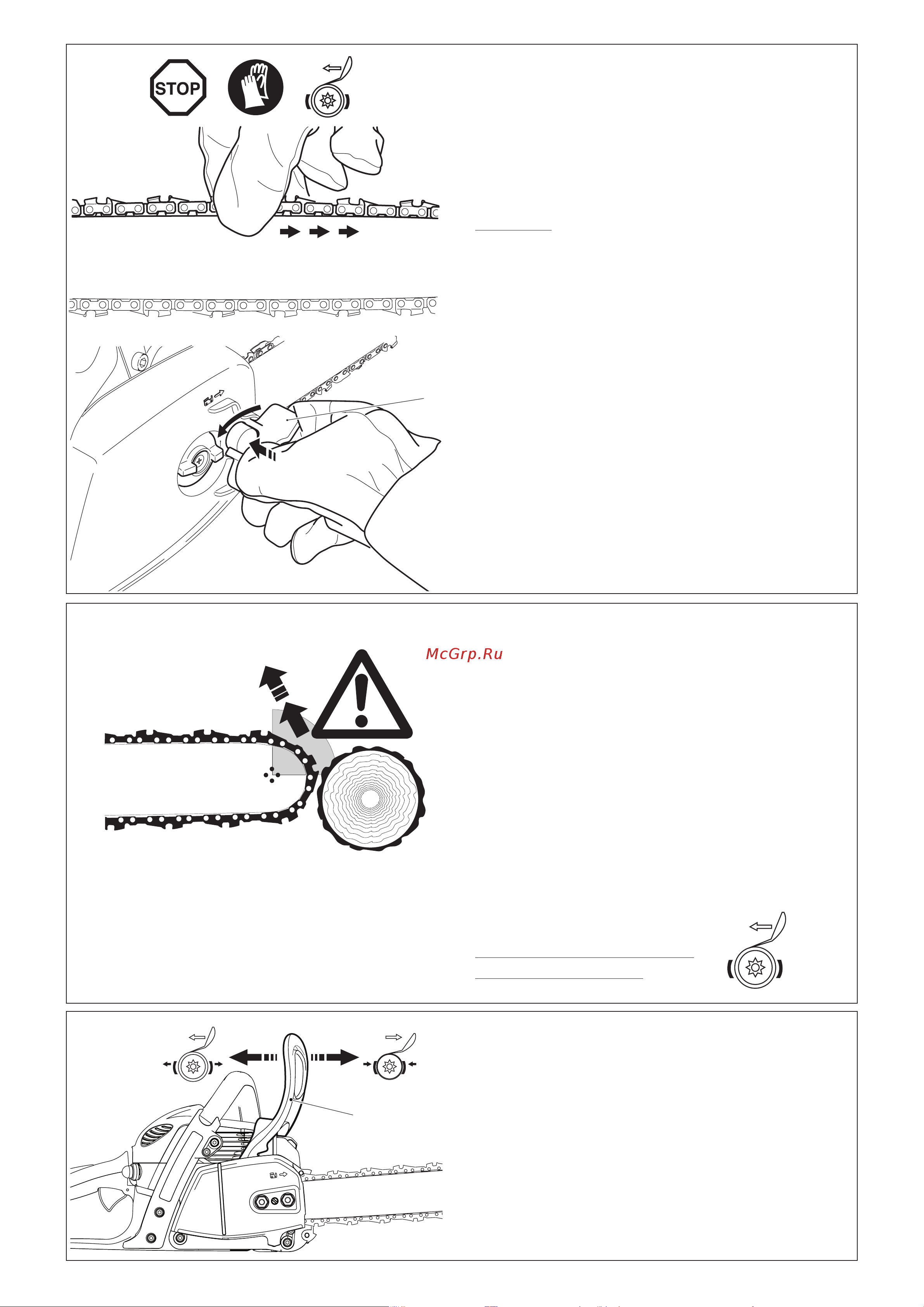

Checking the chain tension

The tension of the chain is correct if the chain rests against

the bottom side of the guide bar and can still be easily turned

by hand.

While doing so the chain brake must be released.

Check the chain tension frequently ‑ new chains tend to get

longer during use!

When checking the chain tension the engine must be

switched o.

NOTE: It is recommended to use 2‑3 chains alternatively.

In order to guarantee uniform wear of the guide bar the bar

should be turned over whenever replacing the chain.

Retensioning the saw chain

All that is necessary to retension the saw chain is to loosen

the quick tensioner (2) slightly as described under “Mount‑

ing the guide bar and saw chain”.

Tension the chain as already described.

Engaging the chain brake (braking)

If the kickback is strong enough the sudden acceleration of

the guide bar combined with the inertia of the hand guard (1)

will automatically actuate the chain brake.

To engage the chain brake manually, simply push the hand

guard (1) forward (towards the tip of the saw) with your left

hand (arrow 1).

Releasing the chain brake

Pull the hand guard (1) towards you (arrow 2) until you feel it

catch. The brake is now released.

For all models

Chain brake

The EA3200S, EA3201S, EA3202S, EA3203S comes with an

inertia chain brake as standard equipment. If kickback occurs

due to contact of the guide‑bar tip with wood (see SAFETY

PRECAUTIONS, page 6), the chain brake will stop the chain

through inertia if the kickback is suciently strong.

The chain will stop within a fraction of a second.

The chain brake is installed to block the saw chain

before starting it and to stop it immediately in case of

an emergency.

IMPORTANT: NEVER run the saw with the chain brake

activated (except for testing, see “Checking the chain

brake”)! Doing so can very quickly cause extensive

engine damage!

ALWAYS release the chain brake

before starting the work!
