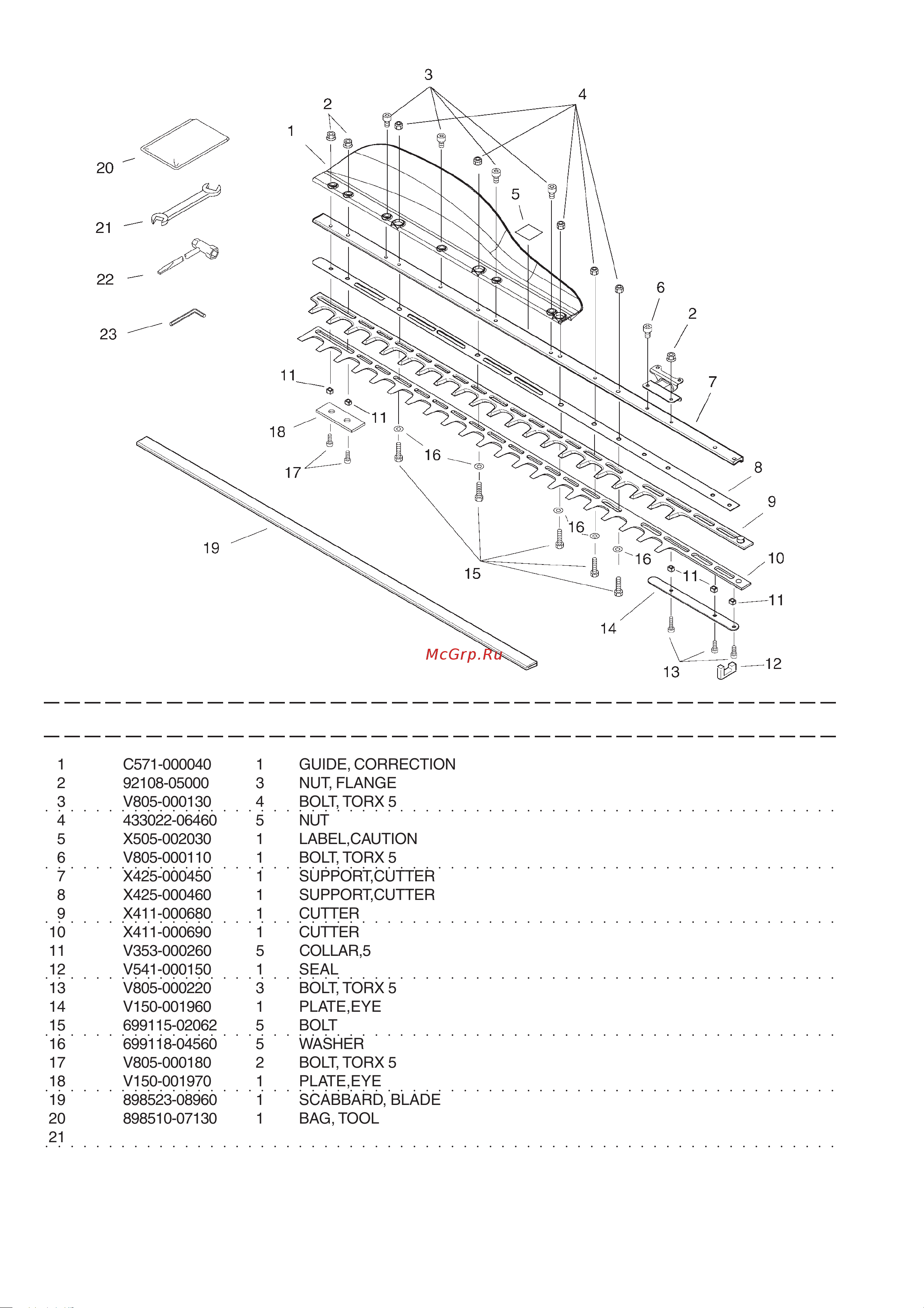

ECHO INCORPORATED ECHO HC-341ES (деталировка) [9/16] Hc 341es 7 cutter tools
![ECHO INCORPORATED ECHO HC-341ES (деталировка) [9/16] Hc 341es 7 cutter tools](/views2/2002313/page9/bg9.png)
- 8 -
KEY LV PART NUMBER Q'TY DESCRIPTION REMARKS
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
1 C571-000040 1 GUIDE, CORRECTION
2 92108-05000 3 NUT, FLANGE
3 V805-000130 4 BOLT, TORX 5
4 433022-06460 5 NUT
5 X505-002030 1 LABEL,CAUTION
6 V805-000110 1 BOLT, TORX 5
7 X425-000450 1 SUPPORT,CUTTER
8 X425-000460 1 SUPPORT,CUTTER
9 X411-000680 1 CUTTER
10 X411-000690 1 CUTTER
11 V353-000260 5 COLLAR,5
12 V541-000150 1 SEAL
13 V805-000220 3 BOLT, TORX 5
14 V150-001960 1 PLATE,EYE
15 699115-02062 5 BOLT
16 699118-04560 5 WASHER
17 V805-000180 2 BOLT, TORX 5
18 V150-001970 1 PLATE,EYE
19 898523-08960 1 SCABBARD, BLADE
20 898510-07130 1 BAG, TOOL
21 895112-00330 1 SPANNER 8*10
22 895410-03930 1 WRENCH, W/S. DRIVER
23 X605-000050 1 TOOL,L WRENCH
HC-341ES 7 Cutter, Tools
