![ECHO INCORPORATED ECHO HCR-171ES (деталировка) [12/16] Hcr 171es 7 carburettor](/img/pdf.png)
ECHO INCORPORATED ECHO HCR-171ES (деталировка) [12/16] Hcr 171es 7 carburettor
![ECHO INCORPORATED ECHO HCR-171ES (деталировка) [12/16] Hcr 171es 7 carburettor](/views2/2002315/page12/bgc.png)
- 11 -
KEY LV PART NUMBER Q'TY DESCRIPTION REMARKS
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
24 + P005-001000 1 ROLLER, GUIDE
25 + P005-001250 1 RETAINER,PLUG BALL
26 + P005-001260 1 SCREW,MAINN MIXTURE
27 + P005-001270 2 PLUG, H AJUST SCREW

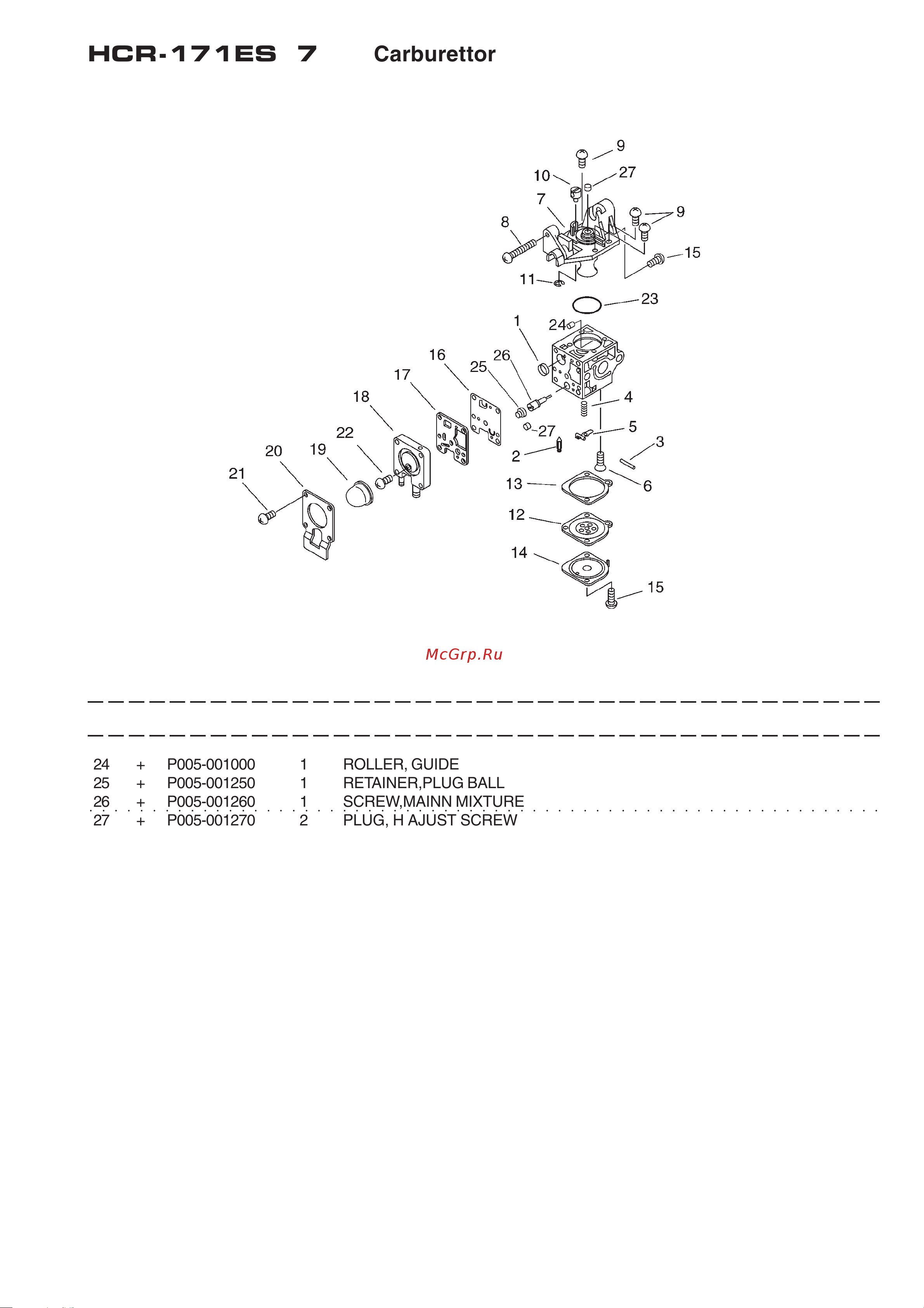

HCR-171ES 7 Carburettor
Содержание
- 100204 52132 1 crankcase kit 2 100212 42031 2 oilseal 3 900162 05028 3 bolt h s 5 28 4 94035 36201 2 bearing ball 5 100242 42030 1 gasket crankcase 6 100215 03930 2 pin dowel 7 a011 000223 1 crankshaft asm 8 p021 007772 1 piston kit 9 100014 08960 2 spacer piston pin 10 100113 05930 1 bearing needle 11 100015 04630 2 circlip piston pin 12 100013 11520 1 pin piston 13 a101 000090 1 ring piston 14 v100 000160 1 gasket cyl 15 a130 000550 1 cylinder 16 900162 05022 2 bolt h s 5 22 17 a160 000880 1 cover cylinder 18 91121 05016 1 bolt flange 19 a127 000170 1 cover dust 20 c152 000410 1 connector 21 91118 05016 1 bolt 2
- Hcr 171es 1 cylinder crankcase piston 2
- Key lv part number q ty description remarks 2
- Hcr 171es 2 starter magneto clutch 3
- Key lv part number q ty description remarks 3
- X502 000330 1 label echo 2 v202 000090 4 bolt 4 3 v202 000030 1 bolt 4 4 a051 001110 1 starter recoil asy 5 177220 42030 1 spring rewind 6 p022 006830 1 drum 7 v452 000150 1 spring torsion 8 a507 000030 1 catcher pawl 9 177236 61830 1 screw 10 177227 42030 1 guide rope 11 p022 008260 1 rope 12 177228 27030 1 grip starter 13 177246 11120 1 clip starter rope 15 x530 000210 1 label eye catcher 16 x503 007720 1 label model 17 a052 000210 1 pulley asm starter 18 p022 020030 2 pawl starter 19 p022 007980 2 spring return 20 900600 00008 1 washer 8 21 900512 00008 1 nut 3n 8 l h 22 a409 000210 1 rotor magneto 23 v475 001610 1 tube 24 91113 04020 2 bolt 25 a411 000130 1 coil ignition 3
- Hcr 171es 2 starter magneto clutch 4
- Key lv part number q ty description remarks 4
- V485 000870 1 lead 27 a425 000000 1 sparkplug 28 a426 000010 1 terminal sparkplug 29 a427 000012 1 cap spark plug 30 610350 12360 1 washer 31 a056 000190 1 clutch asy 32 a566 000000 2 spring clutch 33 175017 44331 2 shoe clutch 34 a552 000080 1 hub clutch 35 a570 000140 1 case clutch 36 900163 04016 4 bolt hsh 4
- 900105 05055 2 bolt h s 5 55 2 900600 00005 2 washer 5 3 145806 42030 1 muffler 4 145866 42031 1 gasket muffler lid 5 a313 000870 1 guide exhaust 6 900242 04010 3 screw 4 10 7 a313 000880 1 guide exhaust 8 91107 04010 1 bolt flange 9 v104 000850 1 gasket exhaust 10 a320 000430 1 cover muffler 11 a323 000010 1 piece cover 12 91121 05016 2 bolt flange 13 v103 000180 1 gasket intake 14 a200 000300 1 insulator intake 15 900162 05025 2 bolt h s 5 25 16 v103 000410 1 gasket intake 17 a021 001450 1 carburetor diaphragm 18 92003 07000 2 nut 19 c482 000060 1 connector cable 20 c482 000050 1 connector cable 21 p021 013020 1 case air cleaner 22 129011 52730 1 plate prevent 23 900242 05065 2 screw 5 65 24 130310 54130 1 filter air 5
- Hc 171es 3 air cleaner carburettor muffler 5
- Key lv part number q ty description remarks 5
- A232 000400 1 lid cleaner 26 890332 52730 1 label choke 27 v299 000250 1 knob fastener 6
- Hc 171es 3 air cleaner carburettor muffler 6
- Key lv part number q ty description remarks 6
- 91118 05020 3 bolt 2 900603 00005 3 washer 5 3 v353 000231 3 collar 5 18 a350 000590 1 tank fuel 4 p021 012210 1 cap fuel asy 5 a365 000060 1 connector cap 6 131016 55830 1 gasket fuel cap 7 131205 07320 1 strainer fuel 8 132012 12361 1 pipe 9 132013 26630 1 clip 10 v186 000140 1 joint pipe 11 132013 09820 1 clip 12 132115 55930 1 grommet fuel 13 130110 54430 1 pipe impulse 14 132010 40830 1 pipe 3 6 75 15 v471 001880 1 pipe 16 437411 19830 1 clip oil pipe 17 a356 000030 1 valve check 7
- Hcr 171es 4 fuel tank 7
- Key lv part number q ty description remarks 7
- Hcr 171es 5 handle 8
- Key lv part number q ty description remarks 8
- V430 001830 1 cable bowden 2 p021 013051 1 handle set rear 3 900256 04016 5 screw 4 16 4 c600 000860 1 frame 5 c423 000280 1 fixture handle 6 v450 000630 1 spring compression 7 605611 13360 1 pin 8 v456 000040 2 holder spring 9 v450 000620 2 spring compression 10 91147 05020 4 bolt hs fl tapp 11 v450 000610 2 spring compression 12 v452 000300 1 spring torsion 13 c450 000250 1 control throttle 14 c460 000090 1 lockout throttle 15 c427 000020 1 stopper hamdle 16 v452 000310 1 spring torsion 17 900603 00005 4 washer 5 18 900106 05016 4 bolt h s 5 16 19 p021 013040 1 switch on off 20 c400 000480 1 handle front 21 x502 000390 1 label echo 22 x505 002030 1 label caution 23 x532 000740 1 label operation 8
- Hcr 171es 6 gear case cuttler tools 9
- Key lv part number q ty description remarks 9
- P021 013680 1 case gear asy 2 a556 000470 1 drum clutch 3 900702 00035 1 circlip 35 4 900812 06202 1 bearing ball 6202 5 900810 36202 1 bearing ball 6202 6 900701 00014 1 circlip 14 7 p021 013070 1 case gear 8 91107 06020 3 bolt hsh flange 9 c628 000030 1 piece plate 10 433022 06460 4 nut 11 x431 000040 1 blunt 12 x425 000360 1 support cutter 13 900106 05025 2 bolt h s 5 25 14 v353 000250 4 collar 5 15 177214 21860 1 washer 16 900106 05014 2 bolt h s 5 14 17 c532 000170 2 rod connecting 18 v650 000300 1 gear spur 19 x411 000600 2 cutter 20 v150 001810 2 plate eye 21 v541 000140 1 seal 22 699118 04560 4 washer 23 699115 06960 4 bolt cutter 24 v150 001800 1 plate eye 9
- Hcr 171es 6 gear case cuttler tools 10
- Key lv part number q ty description remarks 10
- V110 000060 1 gasket gear case 26 c539 000020 1 lid gearcase 27 91118 04016 6 bolt 28 x495 000100 1 scabbard blade 29 895112 00330 1 spanner 8 10 30 895410 00430 1 wrench w s driver 10
- A021 001450 1 carburetor diaphragm 1 p005 000010 1 strainer 2 125337 08260 1 valve inlet needle 3 125338 13930 1 pin metering arm 4 p005 000940 1 spring meter lever 5 125323 08260 1 arm valve 6 125339 42030 1 screw 7 p005 001320 1 cover asy rotor 8 p005 000100 1 screw throttleadjust 9 125344 13931 3 screw 10 p005 001240 1 post 11 p005 000190 1 e ring 12 p005 001780 1 diaphragm 13 p005 000200 1 gasket metering 14 125342 52130 1 cover diaphragm 15 125344 52130 3 screw 16 p005 000510 1 diaphragm pump 17 p005 000520 1 gasket pump 18 p005 001890 1 base asy primer 19 125381 08660 1 pump priming 20 p005 000250 1 retainer 21 p005 001900 4 screw 22 p005 000270 1 screw 23 p005 000280 1 o ring 11
- Hcr 171es 7 carburettor 11
- Key lv part number q ty description remarks 11
- Hcr 171es 7 carburettor 12
- Key lv part number q ty description remarks 12
- P005 001000 1 roller guide 25 p005 001250 1 retainer plug ball 26 p005 001260 1 screw mainn mixture 27 p005 001270 2 plug h ajust screw 12
- Hcr 171es 8 repair kit 13
- Key lv part number q ty description remarks 13
- P005 001660 1 diaphragm gasket kit 7 12 p005 001780 1 diaphragm 7 13 p005 000200 1 gasket metering 7 16 p005 000510 1 diaphragm pump 7 17 p005 000520 1 gasket pump p005 001670 1 rebuild kit 7 1 p005 000010 1 strainer 7 2 125337 08260 1 valve inlet needle 7 3 125338 13930 1 pin metering arm 7 4 p005 000940 1 spring meter lever 7 5 125323 08260 1 arm valve 7 12 p005 001780 1 diaphragm 7 13 p005 000200 1 gasket metering 7 16 p005 000510 1 diaphragm pump 7 17 p005 000520 1 gasket pump 7 24 p005 001000 1 roller guide 13
- Parts number key no parts number key no parts number key no 14
- Parts number key no parts number key no parts number key no 15
- No 4 146 640663 16
