Husqvarna 136 (2004) parts [6/7] Parts list

Husqvarna 136 (2004) parts [6/7] Parts list
R
POULAN PRO PARTS LIST
PARAMOUNT PARTS LIST
R
WEED EATER PARTS LIST
R
R
PARTS LIST
REPLACES
5
Note: Illustration may differ from actual model due to design changes
PARTS LIST NO.
PAGE NO.
MODEL(s)
106--232761
136 & 141
DAT E
12/10/03
106--232761--6/11/03
r
Carb.
Repair
Kit
Gasket/
Diaph.
Kit
1
3
4
5
6
7
8
9
10
11
12
14
15
16
2
17
18
19 21
20
22
13

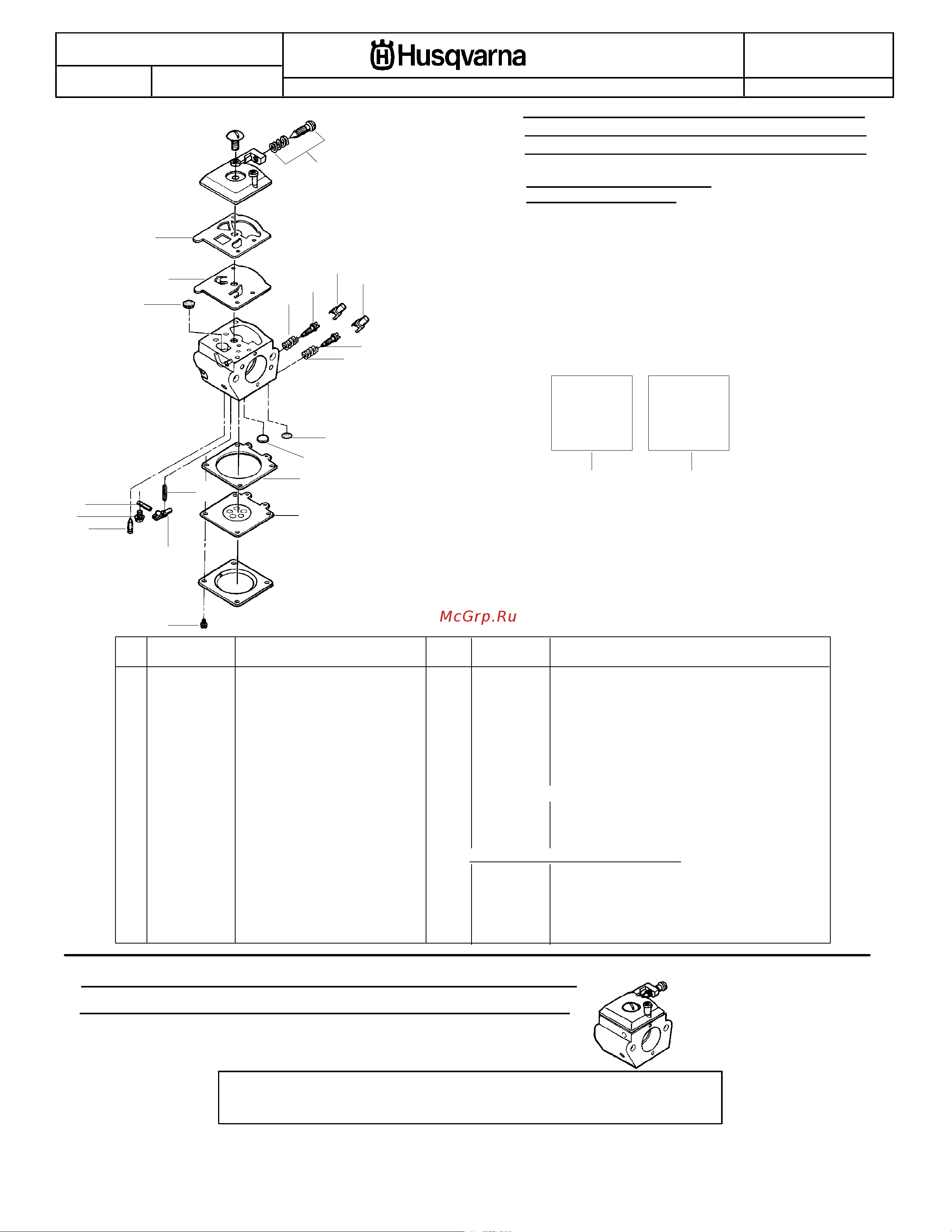

Kit -- Carburetor Assembly No. 530069629 (WT--289)
Carburetor CIQ--W6 Zama --
See Service Reference
Kit -- Carburetor Assembly No. 530035482
(WT--542)
1. 530035296 Idle Adv. Screw Kit
2. 530035031 Metering Lever
3. 530035164 Fuel Pump Gasket
4. 530035166 Fuel Pump Diaphragm
5. 507432582 Fuel Inlet Screen
6. 530035293 Needle Spring (Low Speed)
7. 530035281 Low Speed Needle
8. 530037259 High Speed Needle
9. 530035295 Needle Spring (High Speed)
10. 530035162 Welch Plug (5/16)
11. 530035225 Cup Plug
12. 530035165 Metering Diaphragm Gasket
13. 530035014 Metering Diaphragm
14. 530035028 Metering Lever Pin
15. 530035016 Metering Lever Pin Screw
16. 530035106 Inlet Needle Valve
17. 530038479 Limiter Cap High
18. 530038478 Limiter Cap Low
19. -- Carburetor Repair Kit (Incl. 3--5 & 10--18)
530069826 Walbro
530035269 Zama
20. 530035188 Metering Lever Spring
21. -- Gasket/Diaphragm Kit (Incl. 3, 4, 12 & 13)
530069844 Walbro
530035270 Zama
22. 530035021 Metering Cover Screw Ass’y
530031157 Limiter Cap Removal Tool
530031161 Limiter Cap InsertionTool
LLLLLL If replacing the complete Zama
Carburetor, it is not serviceable;
you will need to order #530069629
Walbro Carburetor Ass’y.
Description
Part No. Ref. Part No. DescriptionRef.
Not Shown
Zama Carburetor Service Reference
=
NEW PART NUMBER FOR THIS IPLn
=
REFER TO THE SERVICE REFERENCE INDICATED FOR MORE INFORMATION. (LOCATED AT END OF IPL)
D
K
=
THESE PARTS ARE ILLUSTRATED FOR CLARITY. ORDER COMPLETE ASSEMBLY.
Note: No Repair kits are available for these carburetors, please order
the complete assembly part number .
Kit -- Carburetor Assembly No. 530071692 -- WT--660 (US/Can/Mex.)
Kit -- Carburetor Assembly No. 530071704 -- WT--660 (Export
Only)
Kit -- Carburetor Assembly No. 530071510 (WT--540)
