Husqvarna 142 (2005) parts [4/6] R parts list
Макгруп McGrp.ru
Задайте вопрос
Зарегистрироваться

Husqvarna 142 (2005) parts [4/6] R parts list

Husqvarna 142 (2005) parts [4/6] R parts list
3

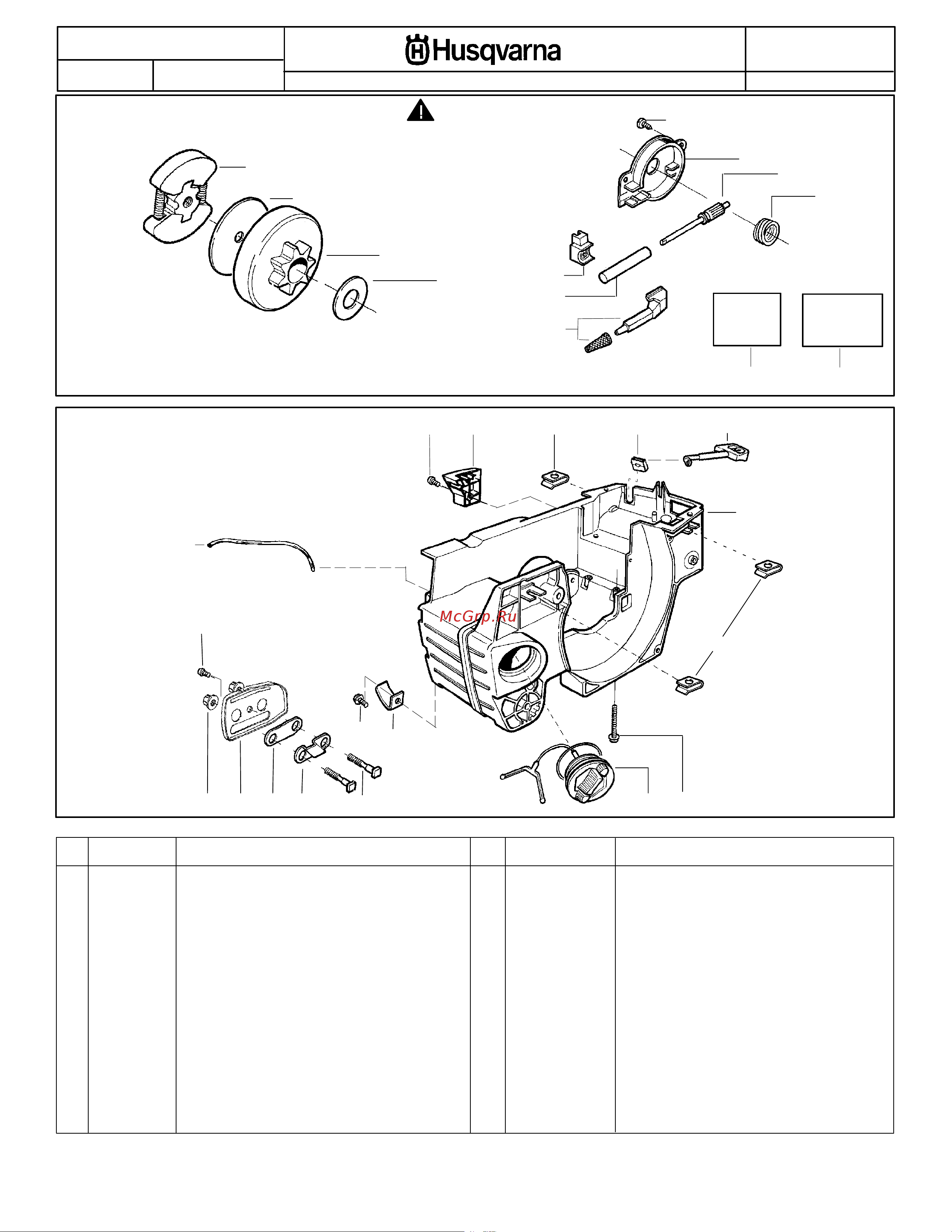

Note: Illustration may differ from actual model due to design changes
PARTS LIST NO.
PAGE NO.
CHAIN SAW MODEL(s)
530165406--01
142 Export
DATE
12/07/04
Replaces
r PARTS LIST
11/10/04 -- 530165405--01
1 530014949 Assy--Clutch
2 53001561 1 Washer--Clutch
3 ------ Assy--Cl utch Dru m
530047061 3/8”
530048132 .325”
4 530015907 Washer--Thrust
5 530019174 Seal--Oil
6 530029834 Barrel--Oil Pump
7 530014776 Assy--Oil Pick--Up and Screen
8 530015896 Screw
9 530029835 Housing--Oil Pump
10 530029838 Assy--Plunger & Gear
1 1 530029833 W orm--Oil Pump
12 530014410 Assy--Oil Pump (Includes 6,9 & 10)
13 530069385 Assy--Oil Pickup (Includes #5, 7, 8, 17)
14 530052440 Tube--Oil Vent
15 530015896 Screw (optional)
16 530015917 Nut
Description
17 530047855 Plate--Bar
18 530019228 Gasket
19 530036043 Plate--Bar Stud
20 530015877 Bar Bolt
21 530015878 Screw
22 530029850 Chain Catcher
23 530015893 Screw
24 530052428 Cover
25 530015922 Nut--T ype ”U” Speed
26 530029830 Grommet
27 530029831 Lever--Choke
28 530071991 K it -- C has s is A s s ’y.
29 530015922 Nut--T ype ”U” Speed
30 530016037 Screw
31 501765602 Assy.-- Oil Tank Cap
Part No. Ref. Part No. DescriptionRef.
1
3
4
12
6
11
7
5
28
15
17
2725
30
3118
19
16
22
21
8
9
Oil Pu mp
A’ssy.
10
14
29
= NEW PART NUMBER FOR THIS IPLn
=
REFER TO THE SERVICE REFERENCE INDICATED FOR MORE INFORMATION. (LOCATED AT END OF IPL)
D
K
=
THESE PARTS ARE ILLUSTRATED FOR CLARITY. ORDER COMPLETE ASSEMBLY.
24
23
26
2
20
13
Oil Pickup
A’ssy.
W ARNING
All repairs, adjustments and
maintenance not described in
the Operator’s Manual must be
performed by qualified service
personnel.
