Operation Manual

SVEN 315

USB

OUTPUT

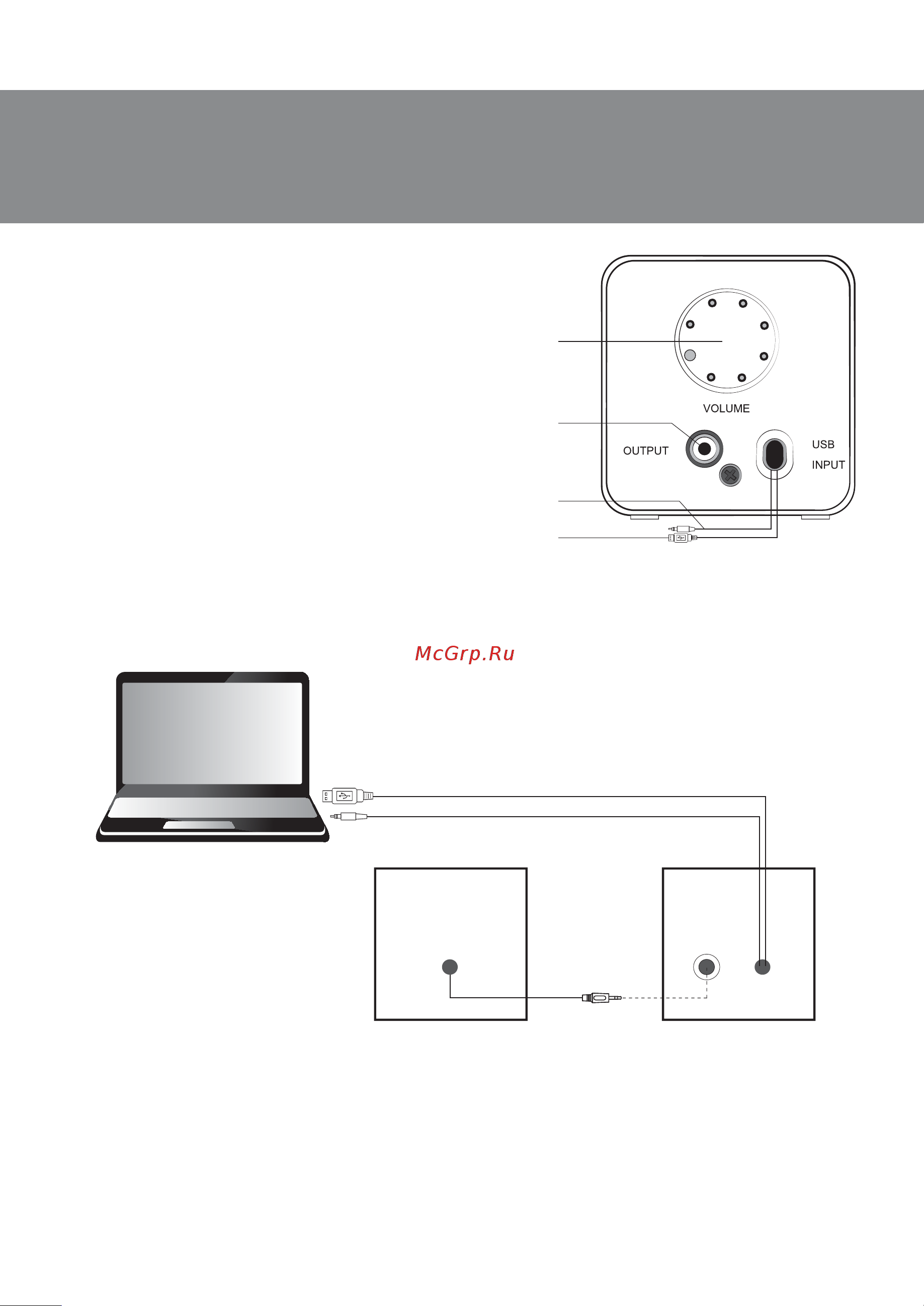

Fig. 2. Connection diagram

bult-in signal cable

with mini-jack Ø 3,5 mm

bult-in USB cable

Computer

Passive speaker Active speaker

mini-jack

Ø 3,5 mm

Acoustic cable

6. REAR PANEL

a VOLUME: Volume control knob

b OUTPUT: Ǆassive speaker jack

c INPUT: Signal cable mini-jack Ø 3,5 mm

d USB: USB cable

Fig. 1. Rear panel

7. INSTALLATION AND OPERATION GUIDE

SVEN 315 Multimedia Speaker System can be connected to virtually any audio source: DVD/CD, PC

sound card, etc. (see ԛg. 2 below).

• Before connecting, make sure that MSS is unplugged. Connect passive speaker to active

speaker via acoustic cable built-in passive speaker. Then connect signal cable mini-jack 3,5 mm c

built-in active speaker to audio output of the sound source, for example computer, as shown in the

diagram above.
