Sven MS-107 SV-014810 [16/20] Multimedia speaker system

ENG

2.1 Multimedia Speaker System

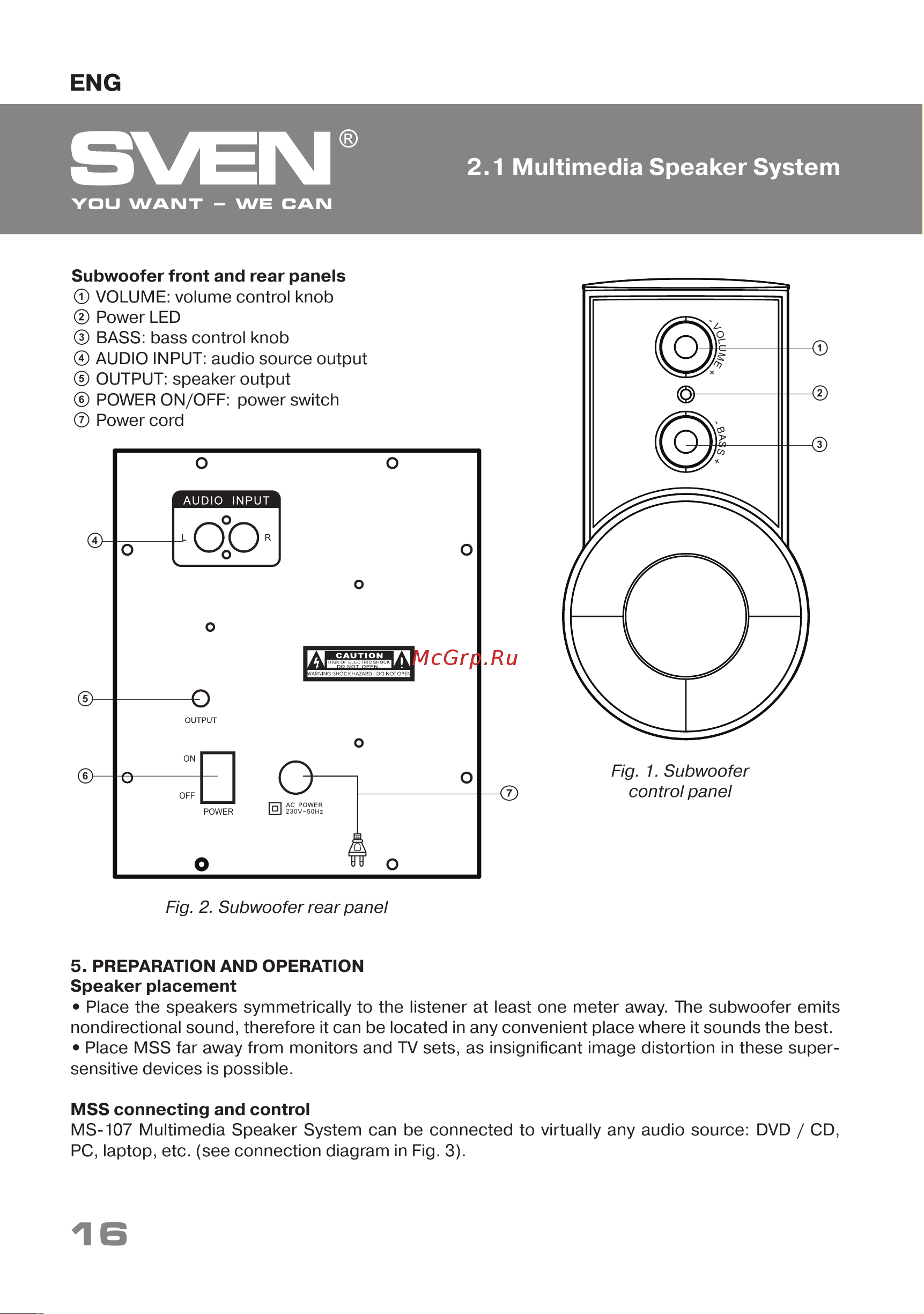

Subwoofer front and rear panels

a VOLUME: volume control knob

b Power LED

c BASS: bass control knob

d AUDIO INPUT: audio source output

e OUTPUT: speaker output

f POWER ON/OFF: power switch

g Power cord

Fig. 1. Subwoofer

control panel

Fig. 2. Subwoofer rear panel

5. PREPARATION AND OPERATION

Speaker placement

• Place the speakers symmetrically to the listener at least one meter away. The subwoofer emits

nondirectional sound, therefore it can be located in any convenient place where it sounds the best.

• Place MSS far away from monitors and TV sets, as insigniﬁcant image distortion in these super-

sensitive devices is possible.

MSS сonnecting and control

MS-107 Multimedia Speaker System can be connected to virtually any audio source: DVD / CD,

PC, laptop, etc. (see connection diagram in Fig. 3).

230V~50Hz

OFF

POWER
