5. PREPARATION AND OPERATION

Speaker placement

• Place the speakers symmetrically to the listener at least one meter away.

• Place MSS far away from monitors and TV sets, as insigniﬁcant image distortion in these supersensitive

devices is possible.

MSS Connecting

SVEN 470 2.0 USB Multimedia Speaker System can be connected to virtually any audio source: MP3

player, PC sound card, etc. (see connection diagram, Fig. 2).

• Before making any connections, make sure that the MSS power supply is disconnected. Plug the built-in

3.5 mm mini-jack signal cables: connect the audio cable (green mini-jack) to the audio output jack of your

sound source and the microphone cable (pink mini-jack) – to the microphone jack (see connection diag-

ram, Fig. 2).

• Connect the built-in USB power cable to a USB port of your PC, laptop or to a 5V DC power supply (not

included).

• Set the master volume level to its minimum by turning the control knob c counterclockwise until it clicks

and stops.

Passive

speaker

Audio cable

Active

speaker

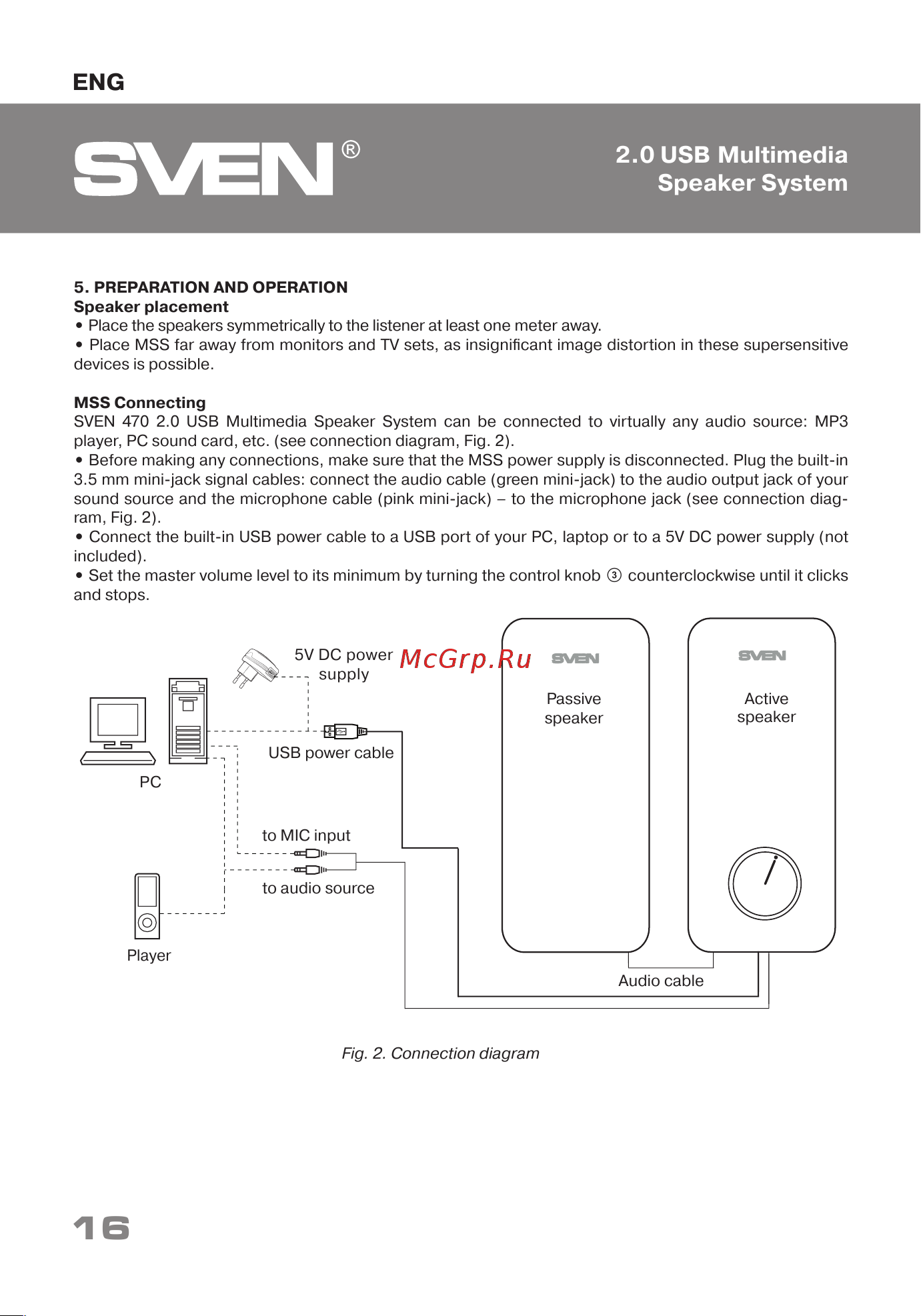

Fig. 2. Connection diagram

ENG

Player

5V DC power

supply

USB power cable

to MIC input

to audio source

2.0 USB Multimedia

Speaker System
