2. Balancing the Vertical Tilt

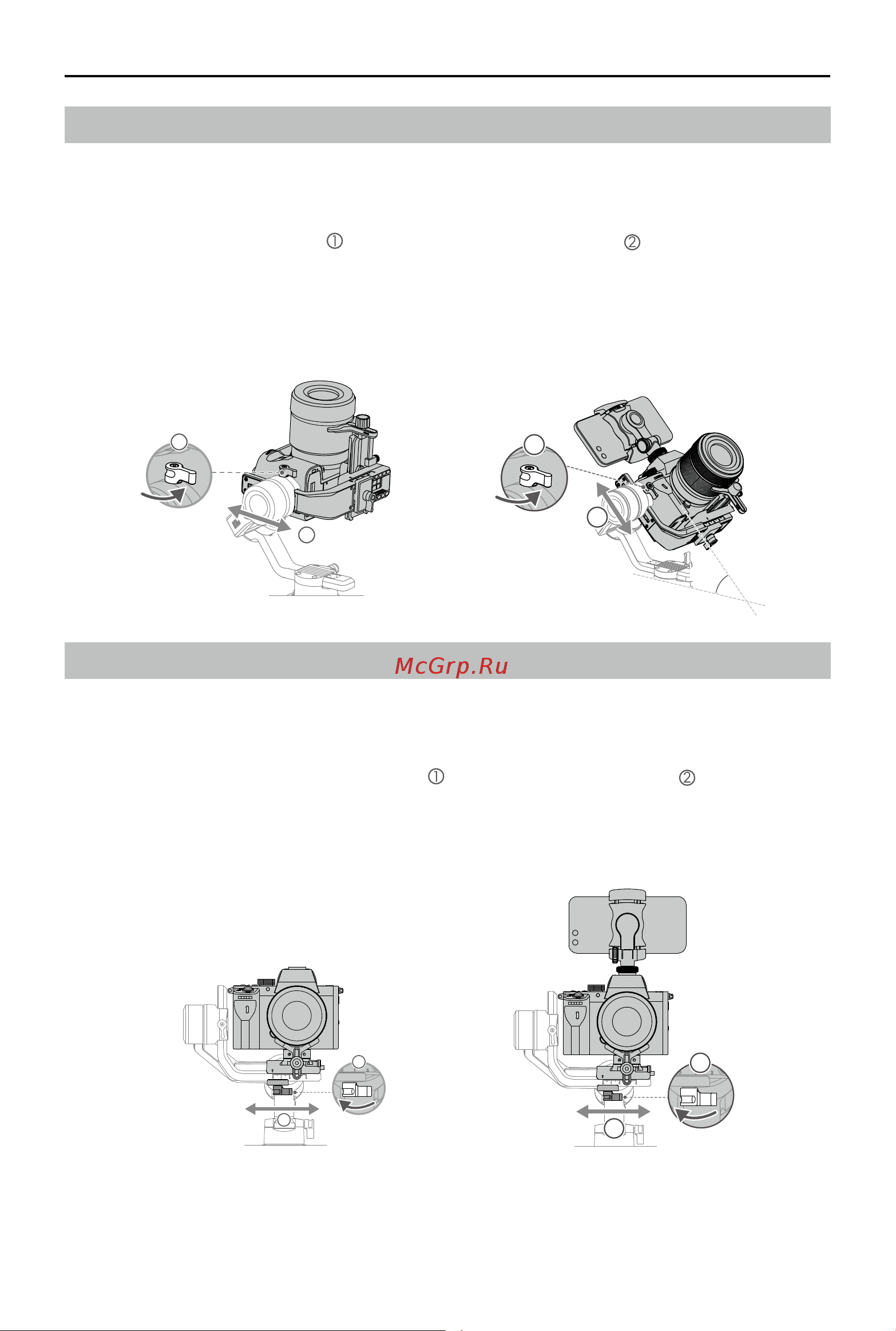

a. Rotate the tilt axis so that the camera lens is pointing upward. If a phone holder and mobile phone are

mounted, rotate the tilt axis so that the camera lens is tilting up at about 45°. Make sure the camera is

not top or bottom-heavy. If the camera is tilted to one side, pull the tilt arm towards the other side.

b. Loosen the knob on the tilt motor

and adjust the balance of the camera until the camera is steady

without tilting up or down.

c. Tighten the tilt axis knob.

d. Repeat Step 1 to balance the depth of the tilt axis. The slider on the dovetail plate is used to record the

balance position. Move the slider next to the mounting plate and tighten the slider.

45°C

3. Balancing the Roll Axis

a. Lock the tilt axis and unlock the roll axis. Check the direction in which the roll motor swings. If the

camera rotates to the left, move the camera to the right. If the camera rotates to the right, move the

camera to the left.

b. Loosen the knob on the camera mounting plate

, and adjust position of the plate until the camera is

steady.

c. Tighten the roll axis knob. If the camera moves forward, move the camera back until the slider is next to

the mounting plate.
