Tripp Lite URM-15T [7/10] Operation

3. Operation continued

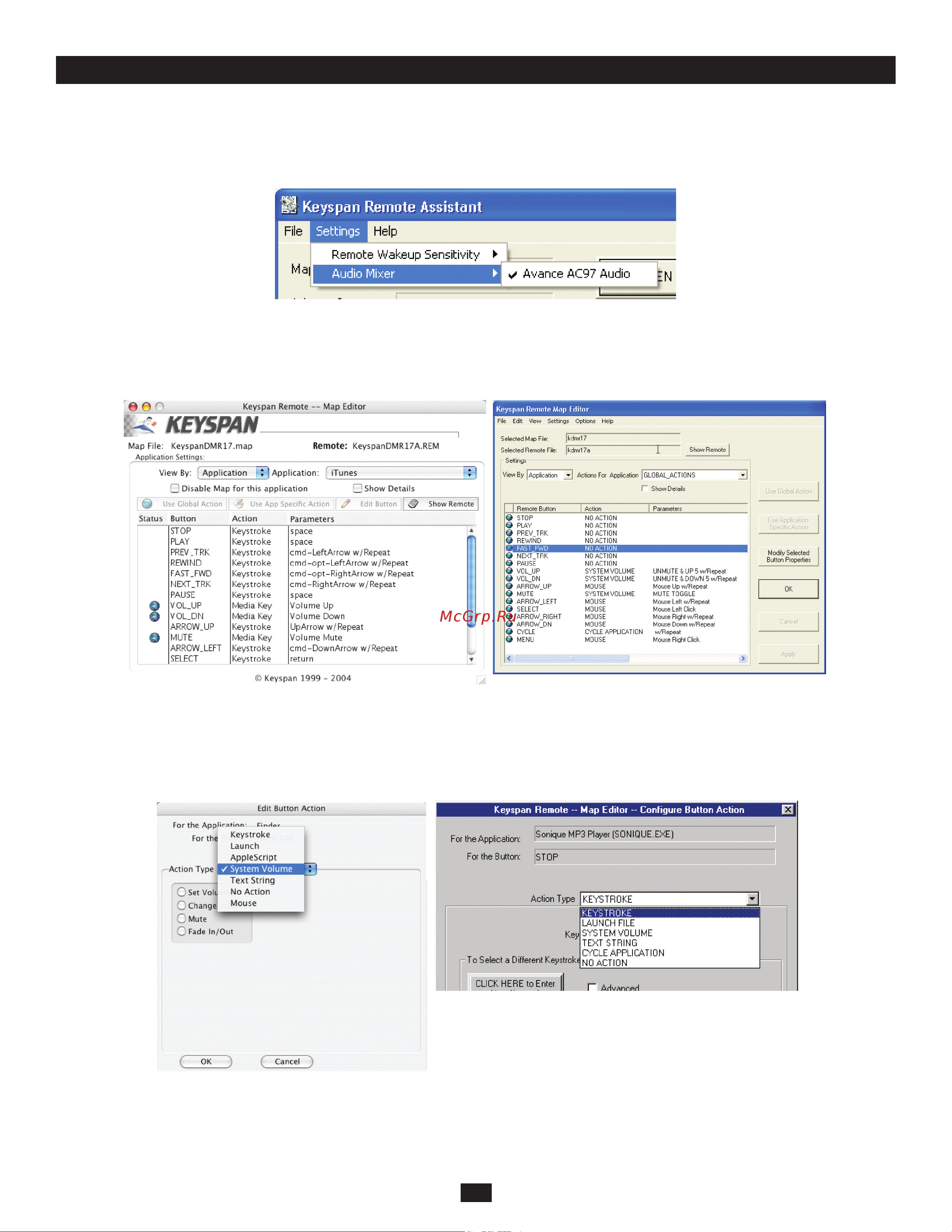

Audio Mixer (Windows Only)

On Windows computers, the Audio Mixer command lets you select which audio mixer you want to control when controlling system volume. This is

useful if you have two audio devices on your PC (i.e. you have an onboard audio mixer and another audio mixer on a PCI sound card) . To change the

selected Audio Mixer, select your mixer from the Settings menu.

Step 2 Open the Keyspan Map Editor in the Keyspan Remote software.

MACINTOSH: Click the CONFIGURE button.

WINDOWS: Click the OPEN MAP EDITOR button. This will open the Map Editor Window (Mac and Windows shown below).

Step 3 Changing a button’s settings (optional). If you don’t like the way a certain button is congured, you can change it at any time. To do this,

rst select the Application that you want to modify from the Applications list (see screen shot above). Next, select the button you want to

modify and click the Edit Button (Mac) or Modify Selected Button Properties (Windows) button (see screen shot above).

This will open the Edit Button Window.

In the Edit Button Action window, select the action that you want to happen when you press the selected button and what ‘repeat rate’ (if any) you

want the action to happen when you press and hold the selected button.
