LG LW-G0961QC [11/28] Page 11

The Foam

Power Cord

Screw

Installation Instructions

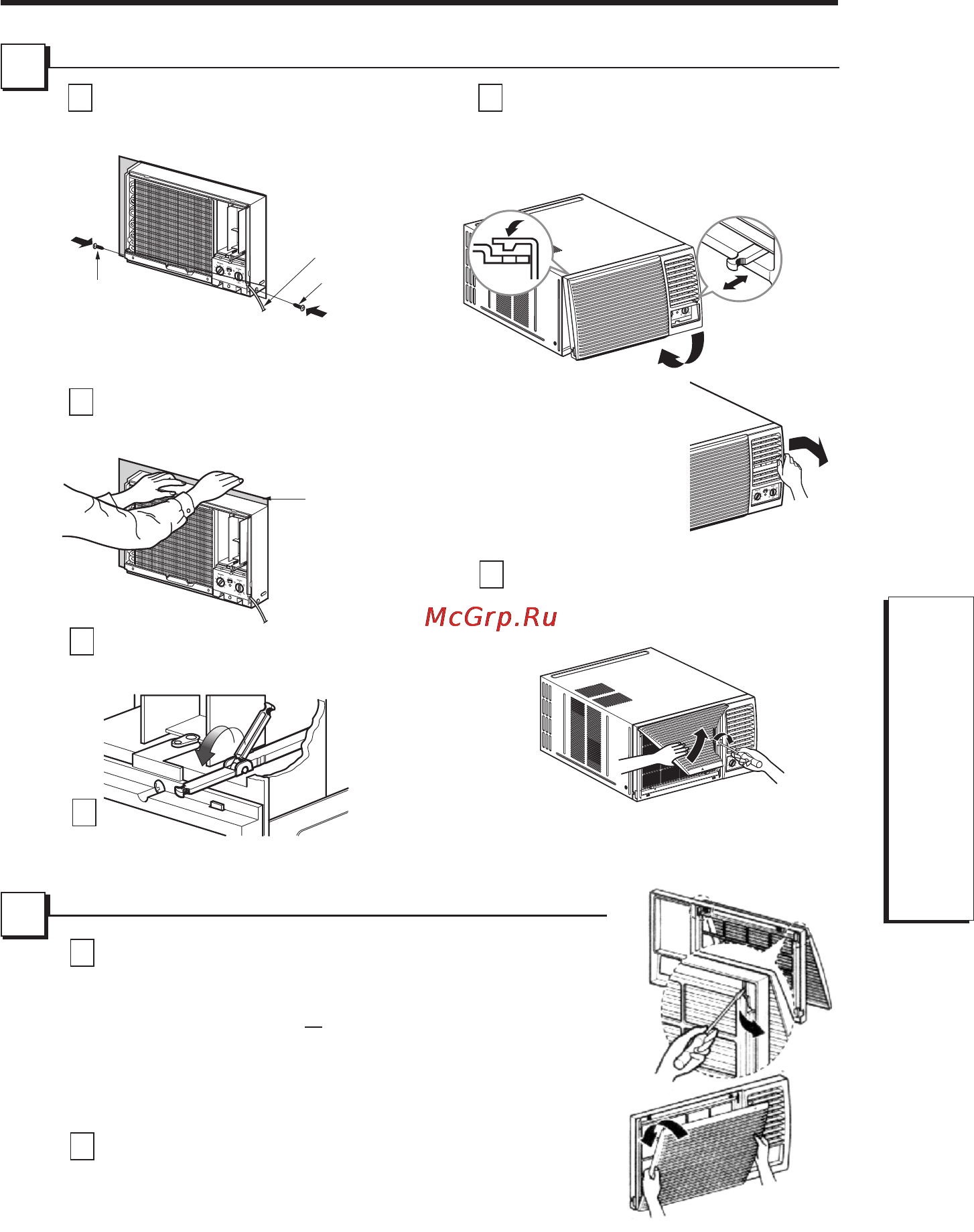

Install the Air Conditioner in the Case

Slide the air conditioner into the case.

Reinstall the screws removed earlier on

each side of the case.

CAUTION:

The power cord must be connected to

an independent circuit.

The green wire must be grounded.

Stuff the foam between the unit and the

wall to prevent air and insects from getting

into the room.

Before installing the front grille, pull out the

vent control lever located above the unit

control knobs, as shown.

Use the Reversible Inlet Grille

(Optional)

If you want to pull out the filter upward, open the inlet grille slightly.

Turn inside out the front grille.

Disassemble the inlet grille from the front grille with separating the

hinged part by inserting a " " type screw-driver tip.

Rotate the inlet grille 180 degrees and insert the hooks into the

lower holes of front grille.

Then, insert the filter

If you want to pull out the filter downward, use the reversible inlet

grille without change.(The grille is already assembled for that way.)

Attac h the fron t gri lle to the ca se by

inserting the tabs on the grille into the slots

on the front of the case. Push the grille in

until it snaps into place.

When you detach the

fro nt gril le fro m the

case, push the grille

to your right side and

pull it toward you.

Lift the inlet grill and secure the front grille

with a screw. Lower the inlet grille into

place.
