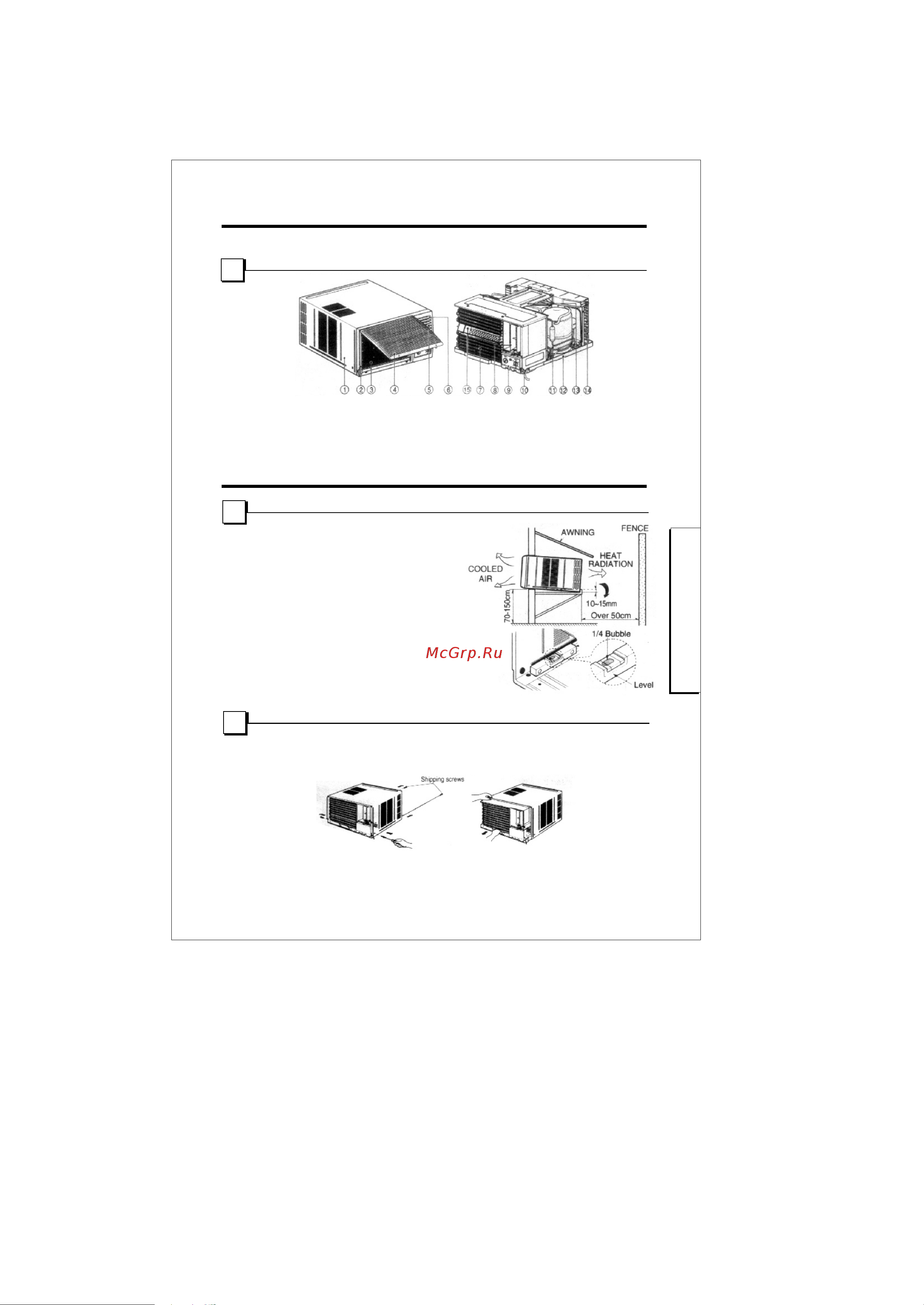

Features
Features
CABINET
FRONT GRILLE
AIR FILTER
AIR INTAKE(INLET GRILLE)
AIR DISCHARGE
Learning parts name prior to installation will help you understanding the installation procedure.
1.
2.
3.
4.
5.
VERTICAL AIR DEFLECTOR
(HORIZONTAL LOUVER)
6.
EVAPORATOR
7.
HORIZONTAL AIR
DEFLECTOR
(VERTICAL LOUVER)
8.
CONTROL BOARD
POWER CORD
COMPRESSOR
BASE PAN
BRACE
CONDENSER
PLASMA FILTER ASSY.
9.
10.
11.
12.
13.
14.
15.
Installation Instructions
Select the Best Location
To prevent vibration and noise, make sure the unit is
installed securely and firmly.
Install the unit where the sunlight does not shine directly
on the unit.
There should be no obstacle, such as a
fence or wall, within 50cm from the back of the cabinet
because it will prevent heat radiation of the condenser.
Restriction of outside air will greatly reduce the cooling
efficiency of the air conditioner.
Install the unit a little obliquely outward not to leak the
condensed water into the room (about 10 ~ 15mm or 1/4
bubble with level).
CAUTION:
All side louvers of the cabinet must remain
exposed to the outside of the structure.
Remove the Air Conditioner From the Case
Remove the 2 shipping screws from the
back of the case.
Remove the 2 screws on each side of the
case. Keep these for later use.
Slide the air conditioner from the case by
gripping the base pan handle and pulling
forward while bracing the case.
Installation Instructions
-9-
Depending upon your model ,the unit sizes are as followes:
WC Chassis :600x380x567 (W X H X D ) mm ,WN chassis 660 x428 x770 (W x H X D ) mm
