Hyundai Basiq Elle Black HV7 [9/40] Warning

Electric convector

WARNING!

The power outlet should be rated at least 10A for models with a maximum capacity

of up to 2000 W and at least 12 A for models with a maximum capacity of 2500 watt

5. OPERATION

ATTENTION!

In order to increase the operational life of the convector is recommended to note

the order unit is switched o. Shutting down the output without pre-cooling of the

heating elements can cause overheating and premature failure.

For models H-HV3

For model H-HV4, H-HV7

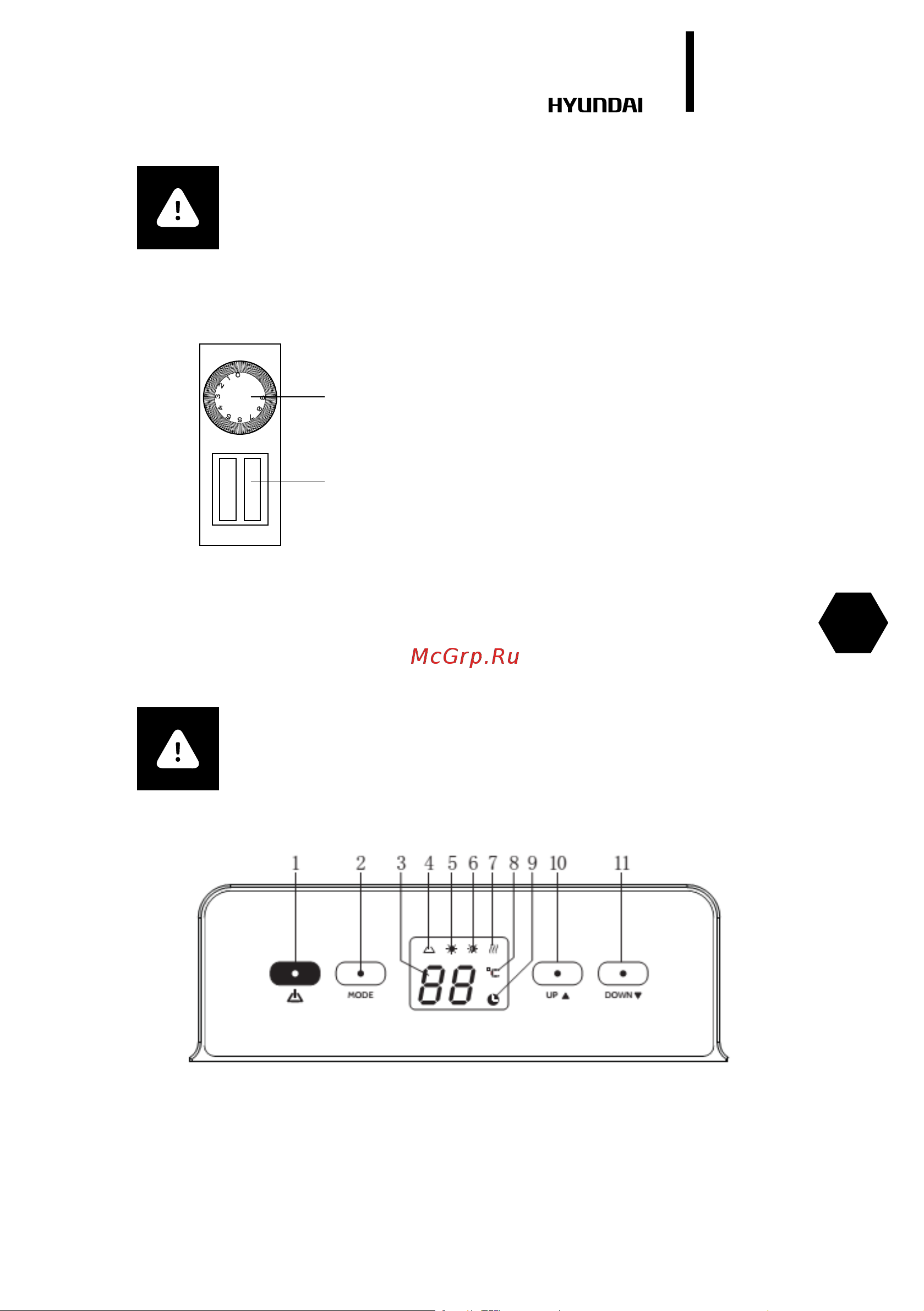

Fig. 6

1. Thermostat knob

2. Two-key power switch

Turn ON

Connect the convector to the circuit by inserting the plug

of the power cord into the power socket,and set the switch

key to the “I” position.

Selection of the heating mode

Set the switch key to the “I” position to select a low heating

power. Set another switch key to the “I” position to select

the high power heating.

Temperature set

Turn the thermostat knob clockwise until it stops. When the room temperature reach the desired

level, turn the thermostat knob counter-clockwise until the device switches o. Now the thermo-

stat will maintain the set temperature, periodically switching on and o the convector.

Turn OFF

Set the switch key to the “O” position and disconnect the convector from the circuit.

Fig. 5

Guide to the control panel:

1. Power key

2. Setting key

3. Number Display

4. Power Indicator

5. High Heating Indicator

6. Low Heating Indicator

7 Heating Element Working Indicator

8. Temperature Indicator (in °C)

9. Timer Indicator

10. Up key

11. Down key
