4. CONNECTING TO THE MAINS

1. Convector is designed for connection to the plug with single-phase на 220-240~V, 50Hz.

2. Before connecting, make sure that the voltage is correct as specied on the nameplate with the

technical data of the device.

3. Convector when connected to the plug must comply with applicable electrical codes.

4. Electric outlet must be properly grounded. The receptacle must be rated for at least 10A.

Electrical plug and socket must always be kept dry to prevent electrical leakage. Regularly check

that the electrical plug is rmly connected to the outlet. Verication is performed in the following

order: Insert the mains plug into the socket. Aer half an hour, turn o the convector and unplug

the power cord, check with the hand , whether the plug is not heated.

If the plug is heated to a temperature above 50 °C, in order to avoid damage, accidents, re, due

to poor electrical contact replace the socket with help of a specialist.

3. WALL INSTALLATION

1. Uncover the original packaging and carefully remove device from it.

2. Remove any foam seals on the edges of the device and release it from polyethylene.

3. Determine the location for the convector in compliance with the minimum distance from the

object and the oor.

4. Mark the height at which you must install the convector and put labels in visible xing holes.

5. Drill holes in the wall of the required diameter, insert the dowels*, tighten the set screws*.

6. Attach the mounting brackets to the cover of the unit with the mounting screws.

7. Perform installation on the wall convector, setting the screws installed in the wall brackets with

the holes that are installed on the device.

8. Check the installation. Convector should t snugly against the wall.

* May not be included in delivery set

Installing castors on the convector

1. Remove the two support legs from the packaging of the convector.

2. Turn the unit so that its bottom was in easy access.

3. Attach the support legs to the bottom of the device to the le and right sides so that the

fastening holes align with the holes on the xture.

4. Tighten the screws in the existing holes.

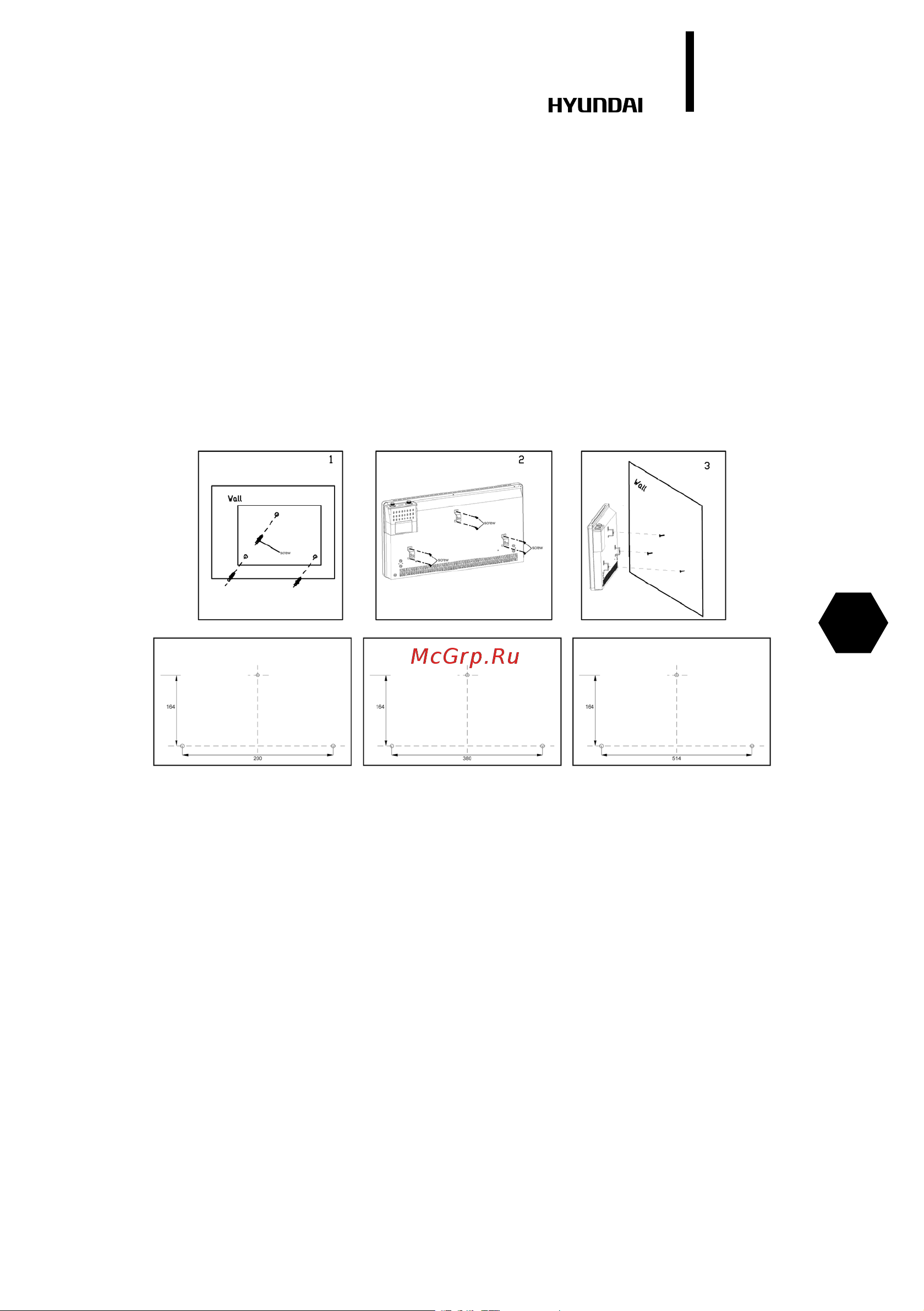

Fig. 3
