FHIABA KS7490FZ3I [14/26] Internal layout

6.1

www.fhiaba.com ∙ info@fhiaba.com ∙ Tel +39 (0)434 420160 ∙ Fax +39 (0)434 420161

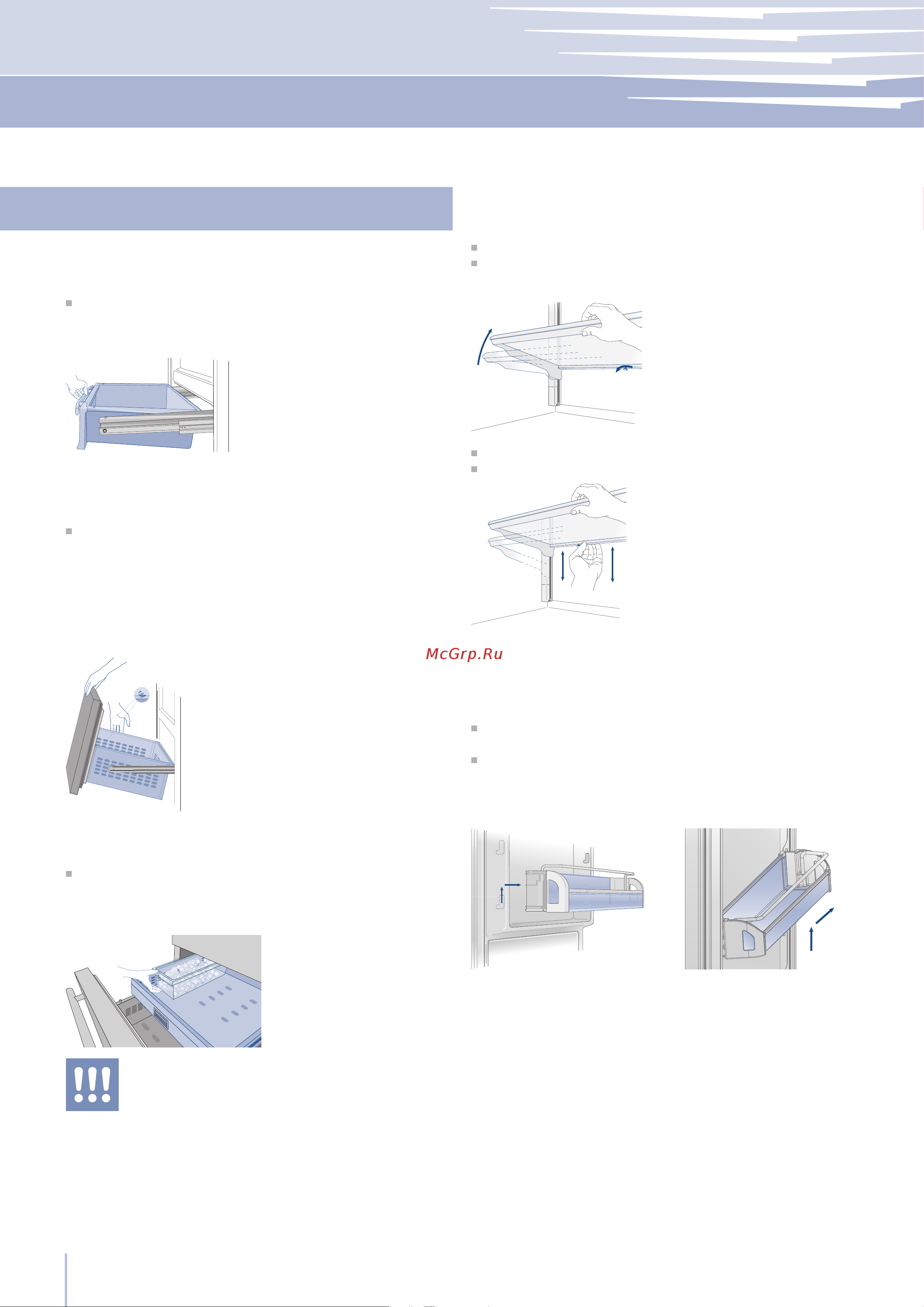

Internal Layout

Internal Layout (positioning, adjustment,

removal)

Fresco Drawer

TriMode Drawer

Fixed to the slide guides with two thumbscrews.

to remove the drawer, unscrew the thumbscrews and

remove the drawer.

The upper TriMode can be removed using the same

method used for the Fresco drawer

to remove the inner TriMode drawer unscrew the

thumbscrews.

When replacing the drawers, make certain the back of

the drawers engage under the clips on the slide guides.

Located in the upper drawer of the freezer compartment

after removal, make sure to reposition it correctly.

Ice Tray

Do not place hands or ngers near the Icemaker when in

function.

The shelves are sliding and can be easily re-positioned by

the user as follows:

release the locking knob by turning i anti-clockwise

lift or lower the shelf to the desired position

re-tighten the locking knob

to remove a shelf it is necessary to slide it up to the top

Shelves

The door shelves can be easily removed for cleaning

Hold the door shelf at the sides and push it upwards to

release it from its seat, then pull it outwards.

Reverse the procedure to reinstall.

Door Shelves
